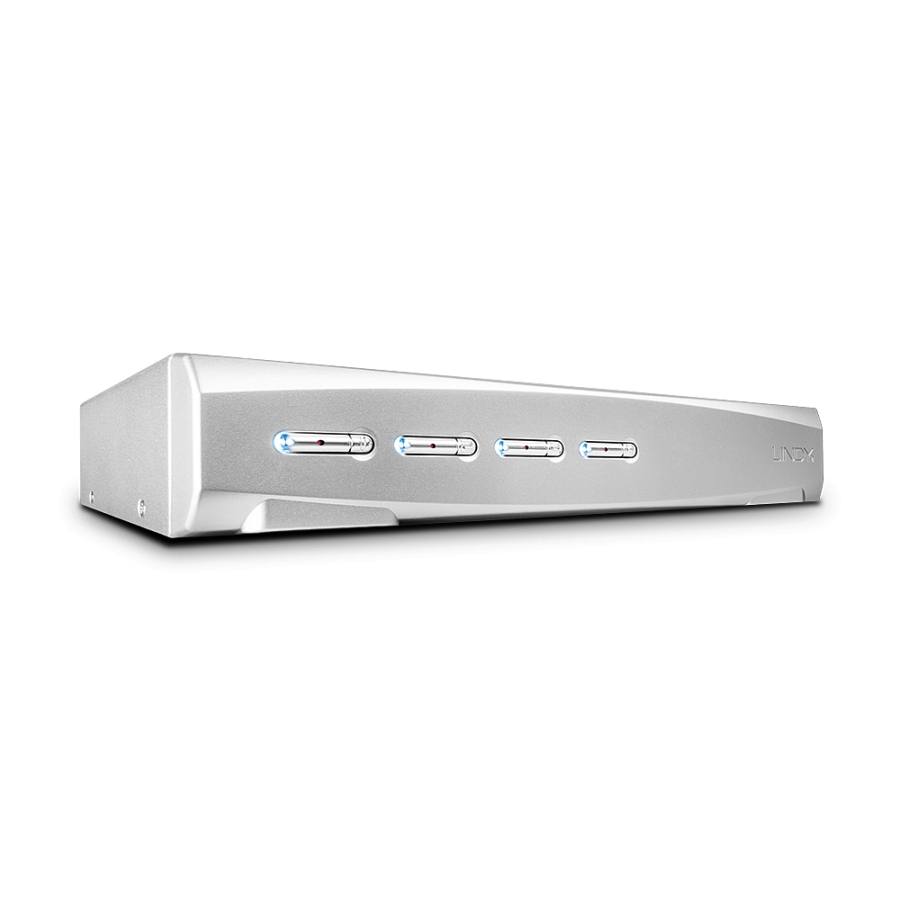

Lindy 4 Port DisplayPort 1.2, USB 2.0 & Audio KVM Switch

Specifications

• AV Interface: DisplayPort
• Console Interfaces: USB
• Interface Standard: DisplayPort 1.2, USB 2.0
• Maximum Resolution: 3840x2160@60Hz
• HDCP Support: -
• Supported Audio: Analogue Stereo
• Separate Audio Ports: 2 x 3.5mm (Female)
• Serial Interface: -
• Console Number: 1
• Max Number PC/Server: 4
• Cascadable: No
• Switching Method: Push Buttons & Hotkey Switching
• 19" Rack Mountable: -
• Special Features: USB 2.0 Hub, Independent audio and Hub switching, Active LED Indicators

Connectors

• Console Interfaces: DisplayPort (Female), USB Type A HID (Female), 2 x 3.5mm (Female)
• PC/Server Interfaces: 4 x DisplayPort (Female), USB 2.0 Type B (Female), 2 x 3.5mm (Female)
• Other Interfaces: 2 x USB 2.0 Type A (Female) Shared Ports
• Power: 5.5/2.1mm DC socket

Physical Properties

• Dimensions WxDxH: 255x45x120mm (10.04x1.77x4.72in)
• Housing Material: Metal
• Net Weight: 1kg (2.2lb)
• Operating Temperature: 0°C - 50°C (32°F - 122°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 0~90% RH (non-condensing)
• Power Requirements: 9VDC 1.1A
• Colour: Silver

Miscellaneous

• Packaging Type: Carton box
• Packaging Dimensions: 315x215x65mm (12.4x8.46x2.56in)
• Gross Weight: 1,5kg (3,31lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Package Contents

• KVM Switch
• Multi-country PSU (UK, EU, US & AUS)
• Lindy Manual

Purchasing Information

• No.: 39305
• EAN: 4002888393058
