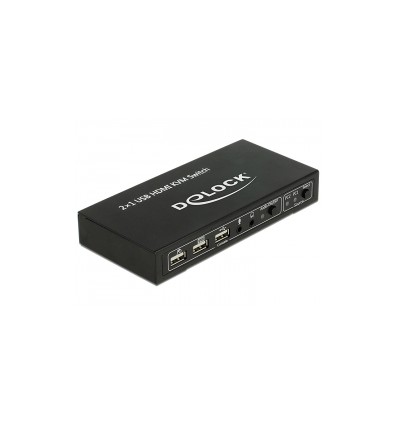

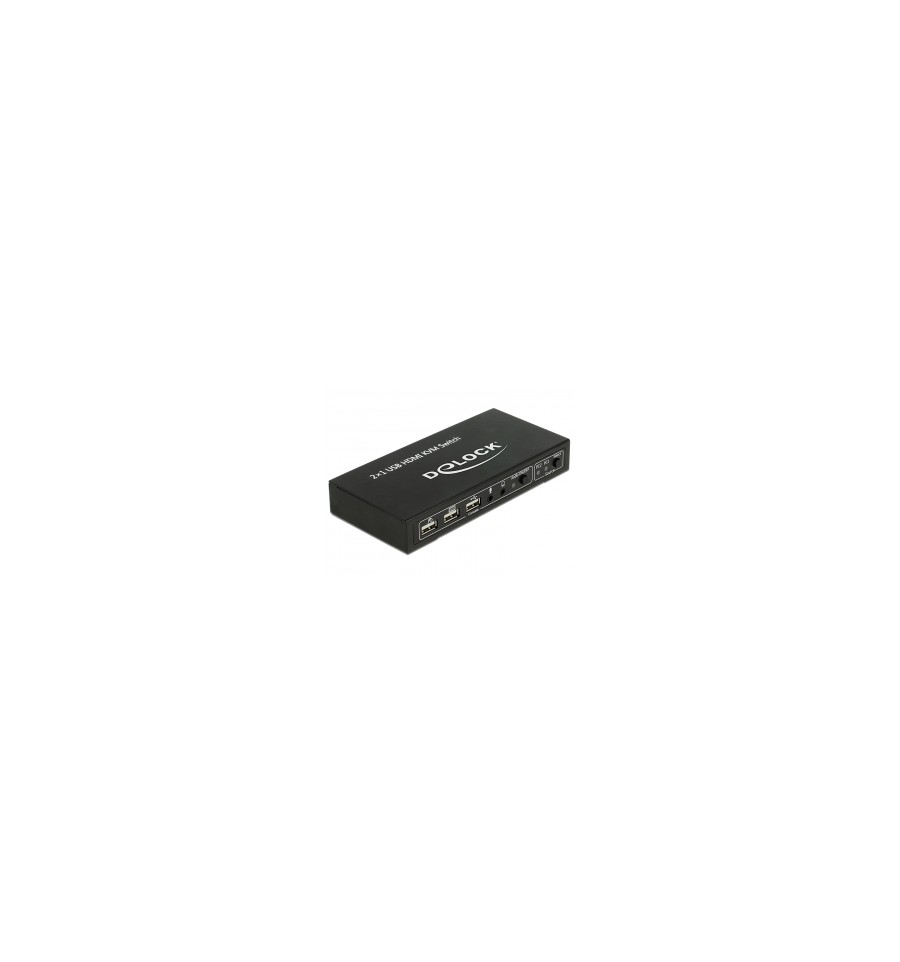

Delock HDMI KVM Switch 2 - 1 with USB and Audio

DELOCK

11421

Jauns

Description
This Delock KVM switch is a convenient solution for connecting two computers with HDMI output to one HDMI monitor. By using the switch button or keyboard hotkeys you can switch between both computers. Furthermore, three USB Type-A ports enable you to connect a mouse, keyboard, hard disk or USB memory.

More details

Description
This Delock KVM switch is a convenient solution for connecting two computers with HDMI output to one HDMI monitor. By using the switch button or keyboard hotkeys you can switch between both computers. Furthermore, three USB Type-A ports enable you to connect a mouse, keyboard, hard disk or USB memory. You can also transmit audio signals with the integrated USB headset function in order to use a headphone and microphone with both computers.


Specification
• Connector:
  Input:
    2 x HDMI-A 19 pin female (connection for PC1 and PC2)
    2 x USB 2.0 Type-B female (connection for PC1 and PC2)
    1 x DC power connector
  Output:
    1 x HDMI-A 19 pin female (Monitor or TV)
    3 x USB 2.0 Type-A female (mouse, keyboard, hard disk, USB memory etc.)
    2 x 3.5 mm stereo jack female (1 x headphone, 1 x microphone)
• 2 switch buttons with LED indicator for source (PC1, PC2) and audio (headset on / off)
• Switching via button or keyboard hotkey
• High Speed HDMI specification
• Supports a resolution up to 2560 x 1440 @ 60 Hz
  (depending on the system and the connected hardware)
• Video bandwidth up to 250 MHz
• USB Data transfer rate up to 480 Mbps
• Robust metal housing
• Colour: black
• Dimension (LxWxH): ca. 15.4 x 6.9 x 2.4 cm
• Cable length: ca. 1.8 m
• OS independent, no driver installation necessary

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.5 A
• Output: 5 V / 2 A
• Ground outside, plus inside
• Dimensions:
    inside: ø ca. 1.35 mm
    outside: ø ca. 3.5 mm
    length: ca. 9 mm

System requirements
• 2 PCs with HDMI-A female + USB Type-A female
• Additional 2 x 3.5 mm stereo jack for headset
• Monitor or TV with HDMI interface

Package content
• HDMI KVM Switch USB and Audio
• 2 x HDMI / USB Combo-cable with HDMI and USB A male >
  HDMI and USB B male
• External power supply
• User manual

Package
• White Box
