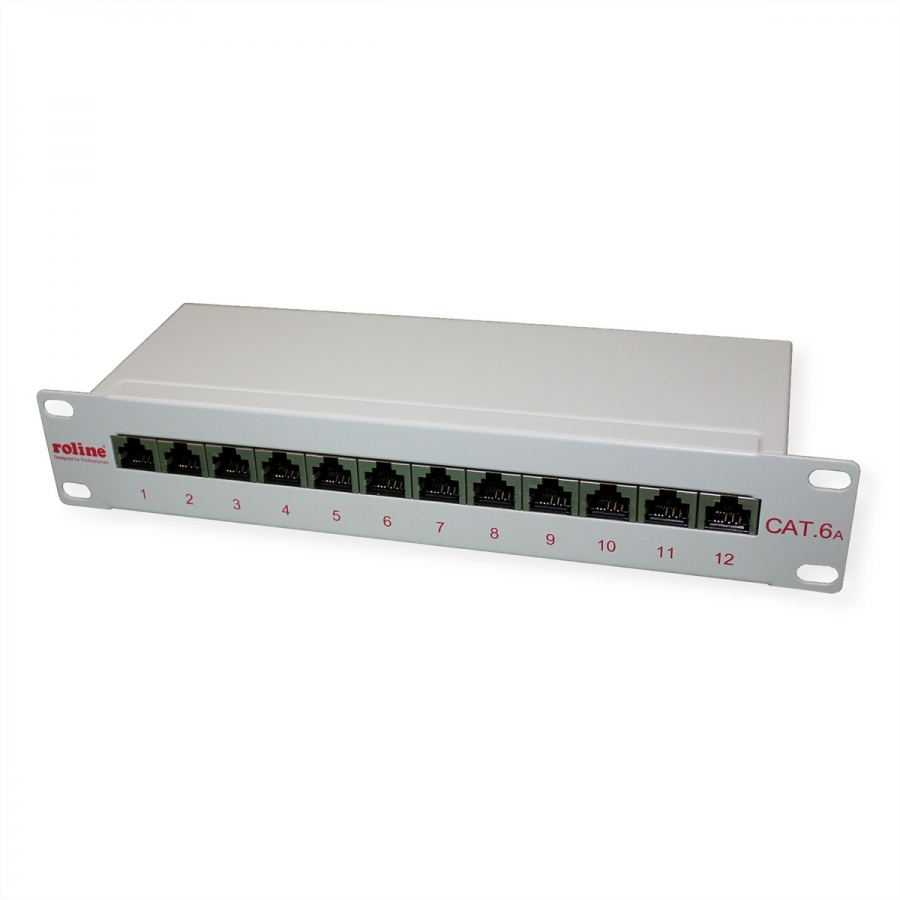

ROLINE Cat.6A (Class EA) 10" Patch Panel, 12 Ports, STP, grey

Kods 26.11.0316

Condition: Jauns

For smaller Network Installations 10"-Patch Panels are used
This ROLINE 10"-Patchpanel offers 12 Ports
Shielded version, Metal-Casing
The Panel complies to the Standard of Cat. 6A / Class EA
The cable connection on the back is implemented via LSA plus technology with colour coding in accordance with standard

Manufacturer	ROLINE
Product group	Connection technology TP
Product type	Patchpanel Cat.6A / Class EA
Colour	grey
Shield type	Screened
Transfer quality	Cat6A / Class EA
Cabinet system	10"-Technique
Quantity of ports	12
Assembly cable connection	Krone LSAplus
Assignment	EIA/TIA 568A & 568B
Modular assembly	Nē
Material (casing)	metal
Shield contacts	Jā
separate strain relief	Jā
Connection direction	Straight
Dimensions (HxWxD)	44 x 254 (220) x 109 mm
Height units	1 UH
Height	44 mm
Width	254220 mm
Depth	140 mm
Weight	800.1 g
Height of packaging (single piece)	60 mm
Width of packaging (single piece)	170 mm
Depth of packaging (single piece)	300 mm
Package weight (single piece)	1 kg
Current catalog edition	C22-New
