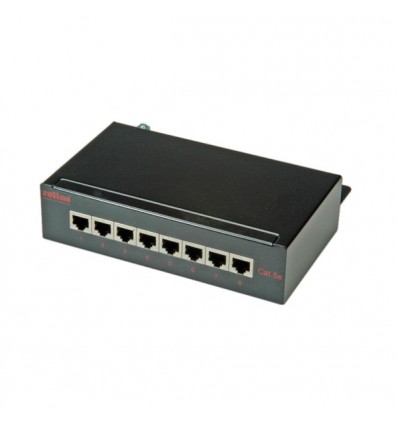

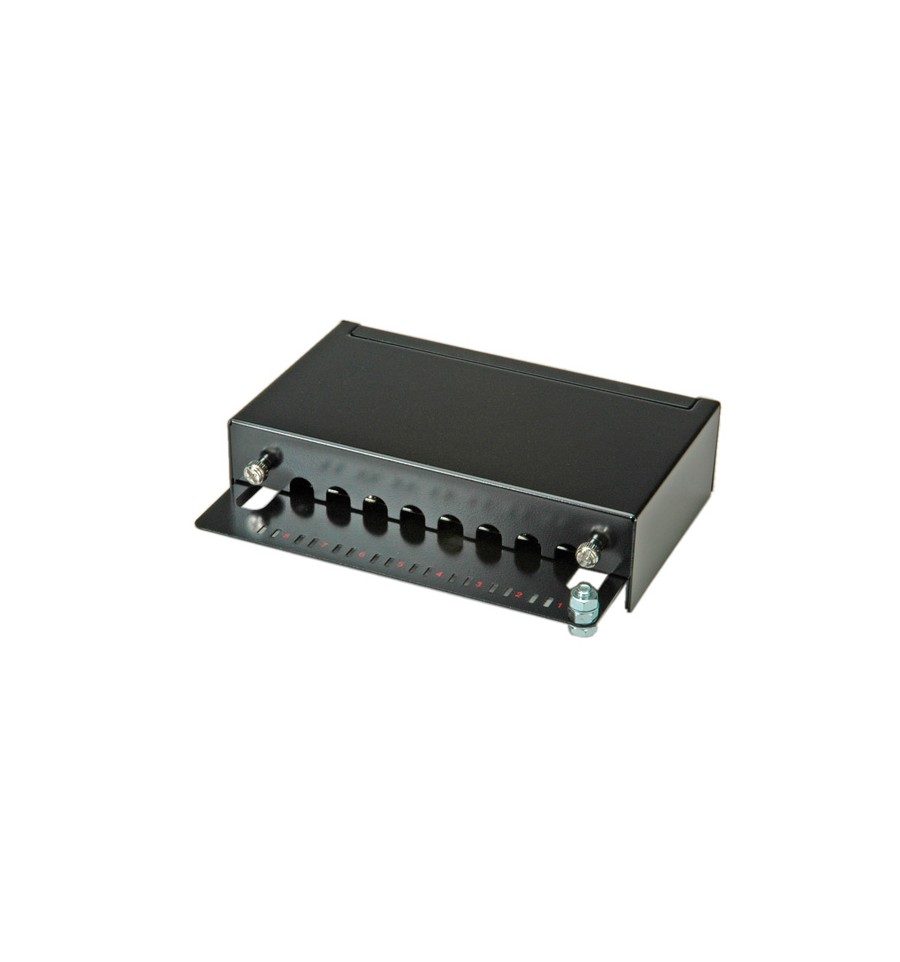

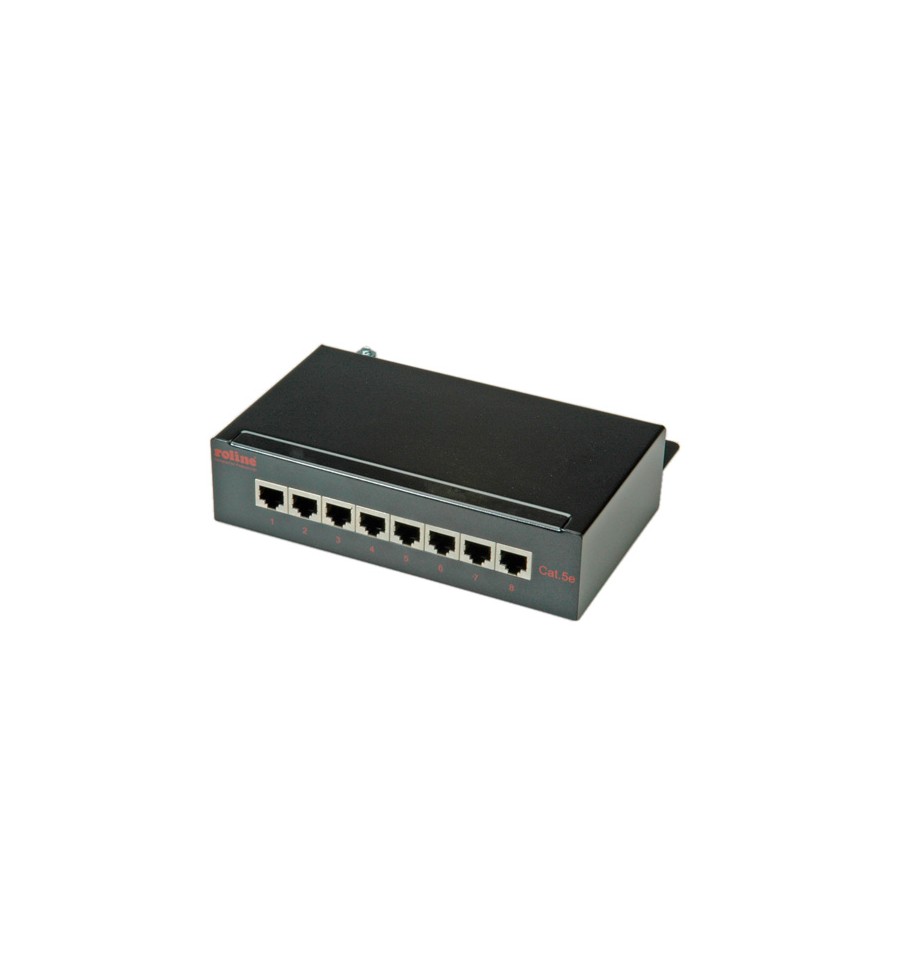

ROLINE Cat.5e Wall Mount Patch Panel, 8 Ports, STP black

ROLINE

26.11.0310

Jauns

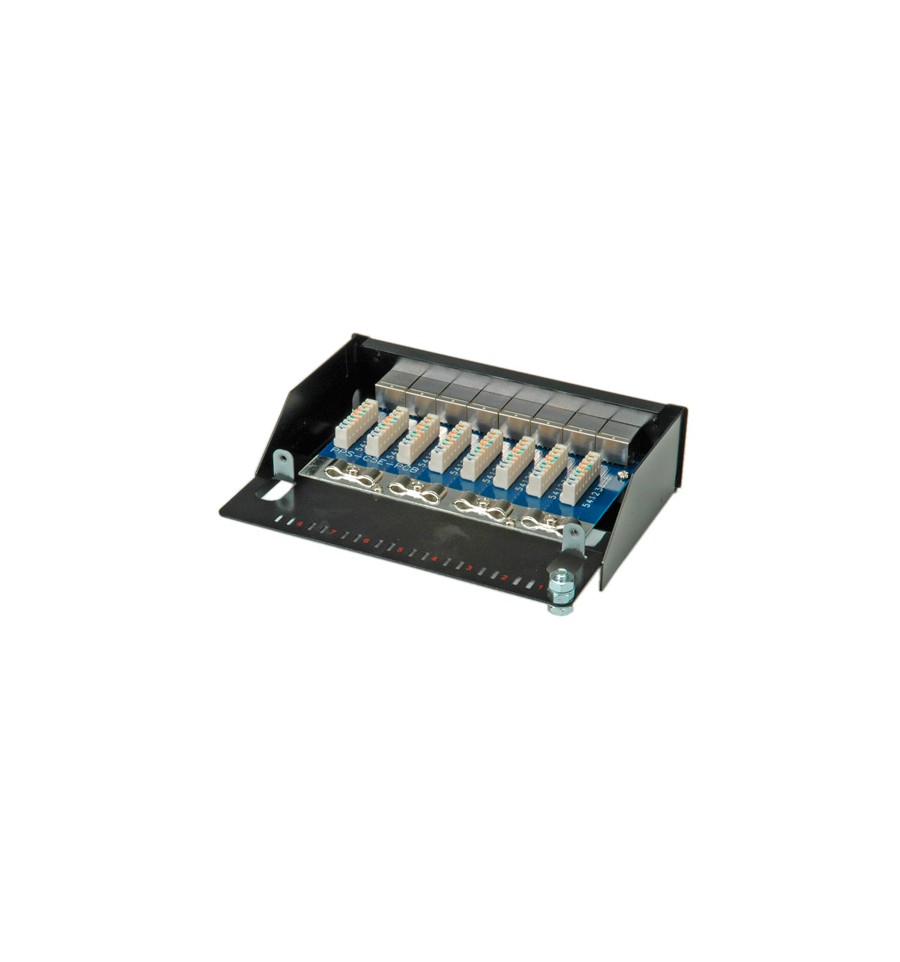

  • The ROLINE connection takes place using LSA plus cable clamps marked with the appropiate colour coding EIA / TIA 568A specifications. The screen connection and strain relief takes place using metallic cable clips.
  • The cable connection takes place using LSA plus cable clamps marked with the appropiate colour coding EIA / TIA 568A specifications. The screen connection and strain ...

More details

  • The ROLINE connection takes place using LSA plus cable clamps marked with the appropiate colour coding EIA / TIA 568A specifications. The screen connection and strain relief takes place using metallic cable clips.
  • The cable connection takes place using LSA plus cable clamps marked with the appropiate colour coding EIA / TIA 568A specifications. The screen connection and strain relief takes place using metallic cable clips
  • Housing and dust cover: metal
  • Colour: black
Assembly cable connectionKrone LSAplus
Assembly depth140 mm
AssignmentEIA/TIA 568A & 568B
Colourblack
Connection directionStraight
Conveyance goodNo
Dimensions (HxWxD)44 x 172 x 140 mm
ManufacturerROLINE
Manufacturer Item No.26.11.0310
Modular assemblyNo
Product groupConnection technology TP
Product typePatchpanel Cat.5e
Quantity of ports8
separate strain reliefYes
Shield contactsYes
Shield typeScreened
Technical particularityWall mount
Transfer qualityCat5e / Class D
