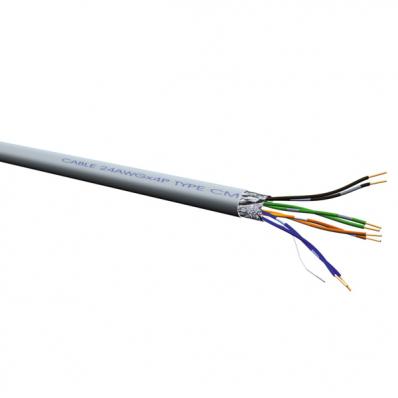

ROLINE FTP Cable Cat.5e, Stranded Wire 100 m

ROLINE

21.15.0119

Jauns

  • Structured building wiring
  • Impedance: 100 Ohm
  • Colour: Grey
  • Construction 21.15.0119: 8 lines, copper, stranded wire AWG26, screening: alu-laminated foil

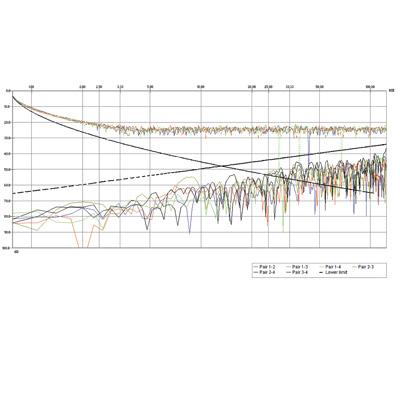

  • Diagram: attenuation/near end crosstalk

For a structured cabling system we recommend to use the following components:

ROLINE Cat.5e FTP Cable, Solid Wire, AWG24: 21.15.0009 (100 ...

More details

  • Structured building wiring
  • Impedance: 100 Ohm
  • Colour: Grey
  • Construction 21.15.0119: 8 lines, copper, stranded wire AWG26, screening: alu-laminated foil
  • Diagram: attenuation/near end crosstalk

For a structured cabling system we recommend to use the following components:

ROLINE Cat.5e FTP Cable, Solid Wire, AWG24: 21.15.0009 (100 m), 21.15.0010 (300 m)
ROLINE Cat.5e Flush/Surface Mount Wall Jack, shielded: 25.16.8487 (white), 25.16.8486 (ivory)/25.16.8387 (white), 25.16.8386 (ivory)
ROLINE Cat.5e 19" Patch Panel, 24 Ports, shielded: 26.11.0329 (light grey), 26.11.0328 (black)
ROLINE Cat.5e FTP Patch Cord, grey, 5 m: 21.15.0105

Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class D specifications.
Assignmentnot applicable
Colour (Cable)grey
Conductor cross section (AWG)AWG 26
Conductor typeWire
Connector Type RJ45not applicable
Conveyance goodNo
Crossednot applicable
Halogen free cableNo
Impedance100 Ohm
Length100 m
ManufacturerROLINE
Manufacturer Item No.21.15.0119
Material (external cable mantle)PVC
Product groupTwisted Pair Cable
Quantity of wires8
Shield typeFTP
Transfer qualityCat5e / Class D
