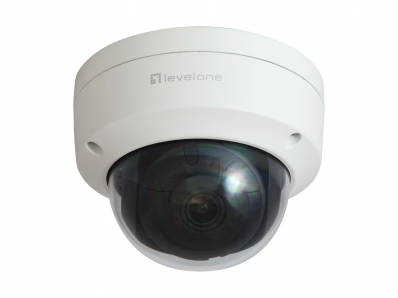

Level One LevelOne IPCam FCS-3403 Dome Out 4MP H.265 IR 9W PoE

LEVEL ONE

FCS-3403

Jauns

The LevelOne FCS-3403 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP67 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 4-Megapixel resolution and the versatility of 802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-3403 Should be an essential part of any security deployment that requires smart, reliable outdoor cameras.

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)
Infrared (IR) cut-off filter
Mounting typeCeiling
Product colourWhite
Form factorDome
Protection featuresDust resistant, Heat resistant, Rain proof, Snow resistant
International Protection (IP) codeIP67
IK codeIK10
Weatherproof
Country of originChina
Lens viewing angle, horizontal86°
Lens viewing angle, vertical46°
Lens viewing angle, diagonal102°
Camera shutter speed1/3 - 1/100000 s
Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scan
Number of lenses1
Focus adjustment2.0
Fixed focal length4 mm
Night vision
Night vision distance30 m
LED typeIR
Maximum resolution2680 x 1520 pixels
Total megapixels4 MP
Video formats supportedH.264, H.265, M-JPEG
Supported graphics resolutions320 x 240, 352 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
Frame rate30 fps
Video streaming
Noise reduction
Noise reduction technology3D noise reduction
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Flip & mirror
Portrait mode
Privacy masking
Time stamp overlay
Text caption overlay
Image stabilizer
Back Light Compensation (BLC)
Audio formats supportedG.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, PCM
Ethernet LAN
Wi-Fi
Bluetooth
Networking standardsIEEE 802.1af
Supported network protocolsIPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP,IGMP,SNMP
Number of users32 user(s)
Quality of Service (QoS) support
Built-in HDD
Card reader integrated
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size128 GB
Ethernet LAN (RJ-45) ports1
DC-in jack
Password protection
Video motion detection
Active tampering alarm
IP address filtering
Motion sensor
Anti-flicker
Heartbeat
Mirror
Digital watermark
Reset button
Power source typeDC, PoE
Power consumption (max)8.5 W
Power consumption (Power over Ethernet (PoE))10 W
DC output voltage12
Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Height82 mm
Diameter11.1 cm
Weight500 g
Package width134 mm
Package depth134 mm
Package height108 mm
Package weight530 g
Package typeBox
Number of cameras1
Screws included
Resource CD
Browser supportedInternet Explorer 8 above,Safari 8.0
Sustainability certificatesRoHS
Pallet net height150 cm
Pallet net length80 cm
Pallet net width120 cm
Compliance certificatesRoHS
Harmonized System (HS) code85258900
Master (outer) case width345 mm
Master (outer) case length590 mm
Master (outer) case height568 mm
Master (outer) case gross weight608 g
Products per master (outer) case24 pc(s)
Number of video streams3
