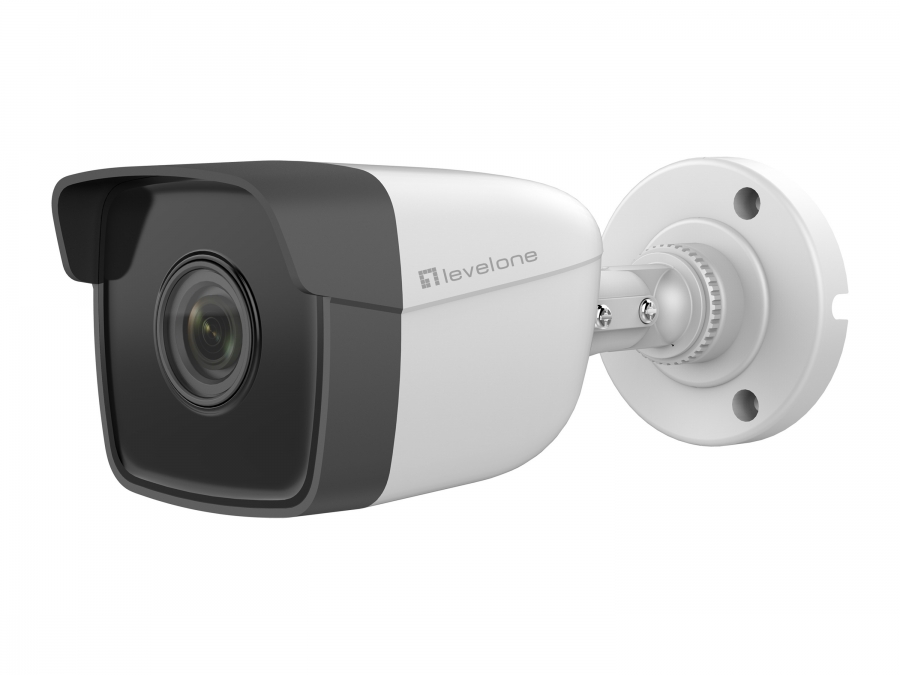

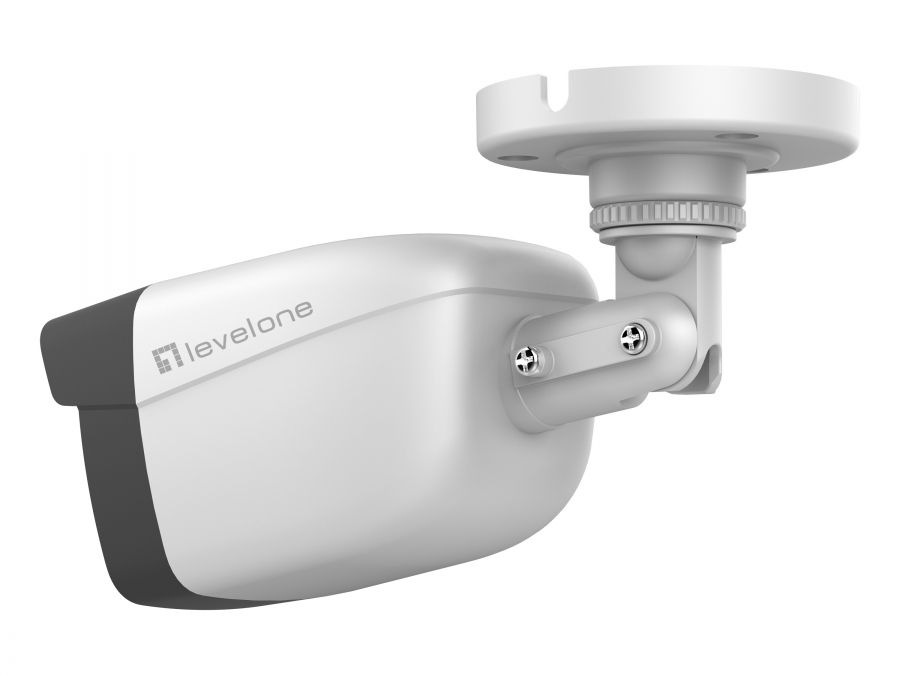

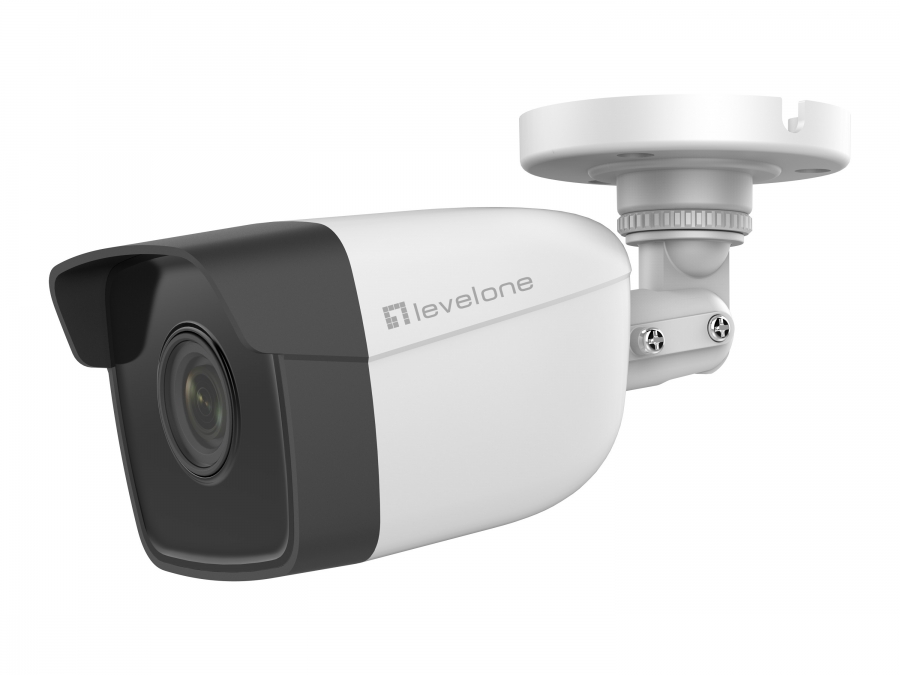

| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Jā |
| Infrared (IR) cut-off filter | Jā |
| Certification | CE/FCC |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Form factor | Bullet |
| LED indicators | Power |
| International Protection (IP) code | IP67 |
| Weatherproof | Jā |
| Country of origin | China |
| Field of view (FOV) angle | 83.6° |
| Camera shutter speed | 1/3 - 1/100000 s |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Zoom capability | Jā |
| Digital zoom | 8x |
| Focus adjustment | 2.0 |
| Fixed focal length | 4 mm |
| Night vision | Jā |
| Night vision distance | 30 m |
| LED type | IR |
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video formats supported | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
| Frame rate | 60 fps |
| Noise reduction | Jā |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Jā |
| Bit rate | 32 Kbps - 8 Mbps |
| Back Light Compensation (BLC) | Jā |
| Region of Interest (ROI) encoding | Jā |
| Ethernet LAN | Jā |
| Wi-Fi | Nē |
| Bluetooth | Nē |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3u |
| Supported network protocols | IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS |
| Number of users | 32 user(s) |
| User access level | Administrator, Operator, User |
| Quality of Service (QoS) support | Jā |
| Live view | Jā |
| Number of simultaneous live view channels | 6 channels |
| Built-in HDD | Nē |
| Ethernet LAN (RJ-45) ports | 1 |
| Password protection | Jā |
| Video motion detection | Jā |
| Active tampering alarm | Jā |
| Anti-flicker | Jā |
| Heartbeat | Jā |
| Mirror | Jā |
| Digital watermark | Jā |
| Reset button | Jā |
| Power source type | DC, PoE |
| Power consumption (max) | 5 W |
| Power consumption (Power over Ethernet (PoE)) | 7 W |
| Operating temperature (T-T) | -30 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Width | 69.1 mm |
| Depth | 66 mm |
| Height | 172.7 mm |
| Weight | 280 g |
| Package width | 121 mm |
| Package depth | 118 mm |
| Package height | 216 mm |
| Package weight | 530 g |
| Package type | Box |
| Number of cameras | 1 |
| Manual | Jā |
| Resource CD | Jā |
| Browser supported | IIE7+, Chrome18-42, Firefox5.0+, Safari5.02+ |
| Harmonized System (HS) code | 85258900 |
| Master (outer) case width | 245 mm |
| Master (outer) case length | 360 mm |
| Master (outer) case height | 650 mm |
| Master (outer) case gross weight | 9.6 kg |
| Products per master (outer) case | 18 pc(s) |
