| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Maximum operating distance | 30 m |
| Wide Dynamic Range (WDR) | Y |
| Day/night mode | Y |
| Remote viewing | Y |
| Infrared (IR) cut-off filter | Y |
| Certification | CE, FCC, RCM |
| Mounting type | Ceiling |
| Product colour | White |
| Form factor | Dome |
| Protection features | Dust resistant, Water resistant, Waterproof |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Weatherproof | Y |
| Camera pan control | Y |
| Camera tilt control | Y |

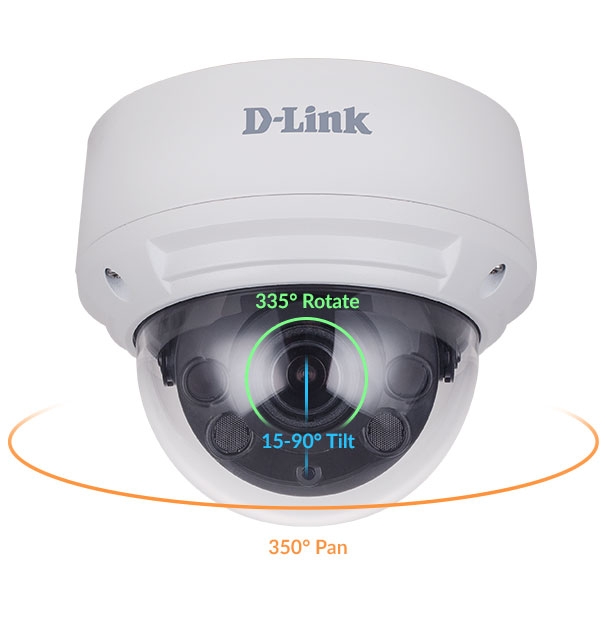

| Angle of rotation | 335° |
| Lens viewing angle, horizontal | 102° |
| Lens viewing angle, vertical | 55° |
| Lens viewing angle, diagonal | 126° |
| Tilt angle range | 15 - 90° |
| Pan range | 0 - 350° |
| White balance | Auto |
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Y |
| Number of effective pixels (H x V) | 2592 x 1520 pixels |
| Zoom capability | Y |
| Digital zoom | 18x |
| Maximum aperture number | 2 |
| Fixed focal length | 2.8 mm |
| Closest focusing distance | 0.5 m |
| Night vision | Y |
| LED type | IR |
| Maximum resolution | 2592 x 1520 pixels |
| Total megapixels | 2 MP |
| Video compression formats | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 2520 x 1520 |
| Supported video modes | 1520p |
| Video recording | Y |
| Frame rate | 30 fps |
| Gain control type | Auto |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Y |
| Time stamp overlay | Y |
| Text caption overlay | Y |
| Ethernet LAN | Y |
| Ethernet interface type | 10 Gigabit Ethernet, 100 Gigabit Ethernet |
| Networking standards | IEEE 802.3af |
| Supported network protocols | IPv4, HTTP/HTTPS, RTSP/RTP/RTCP, TCP, UDP, DHCP, DNS, DDNS, NTP, FTP, SMTP Client, ONVIF Profile S compliant, ARP, ICMP, PPPoE, SNMP v1/v2c/v3 |
| Card reader integrated | Y |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| Video motion detection | Y |
| Security algorithms | HTTPS |
| HTTPS encryption | Y |
| Reset button | Y |
| Power source type | AC, DC, PoE |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 5 W |
| DC output voltage | 12 |
| DC output current | 1.5 A |
| Operating temperature (T-T) | -30 - 55 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| Windows operating systems supported | Windows 10 |
| Width | 110 mm |
| Depth | 85.4 mm |
| Height | 110 mm |
| Weight | 390 g |
| Number of cameras | 1 |
| Harmonized System (HS) code | 85258900 |
