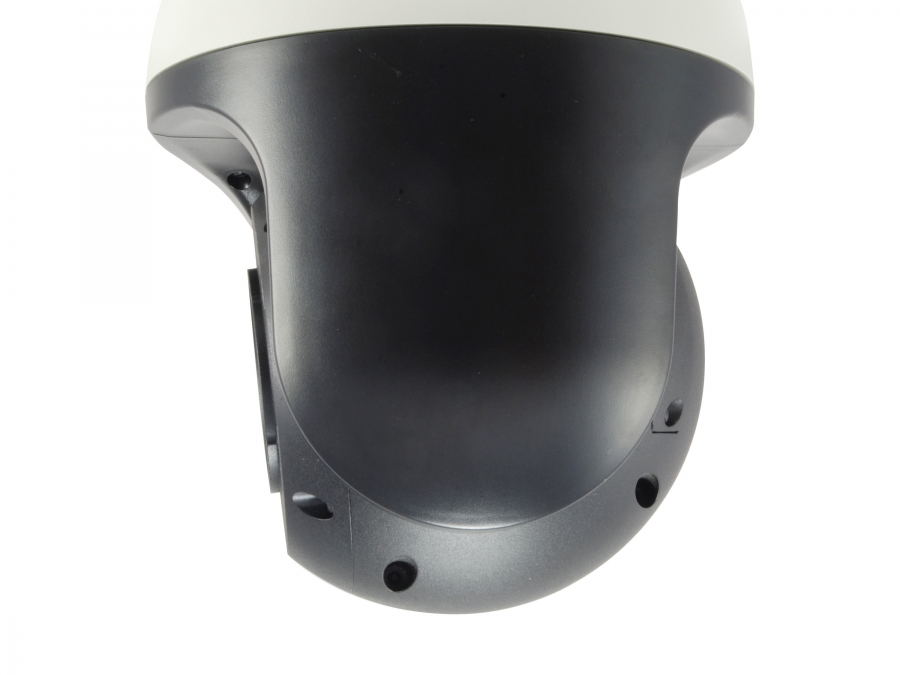

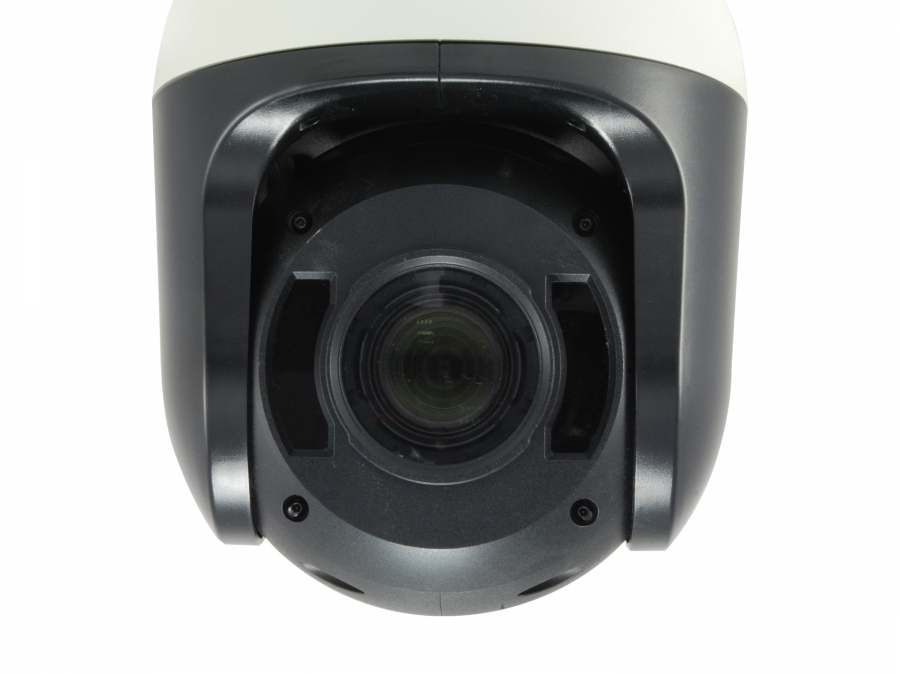

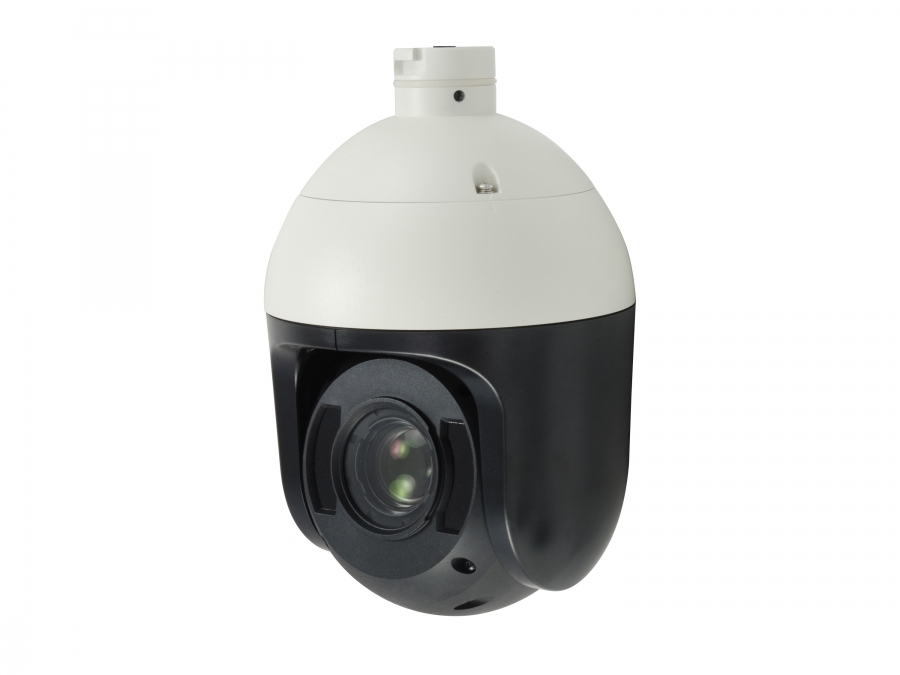

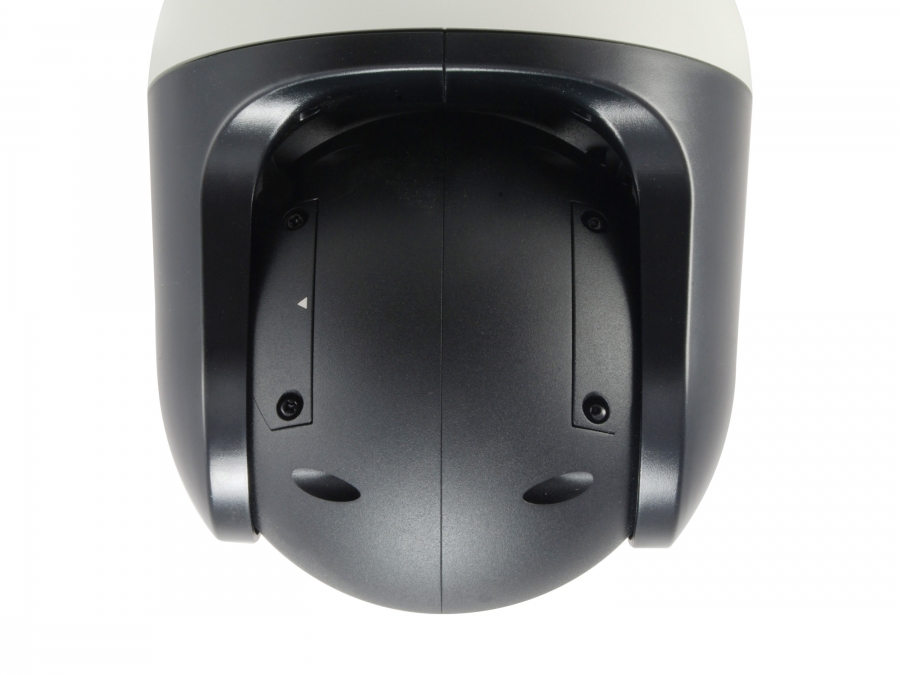

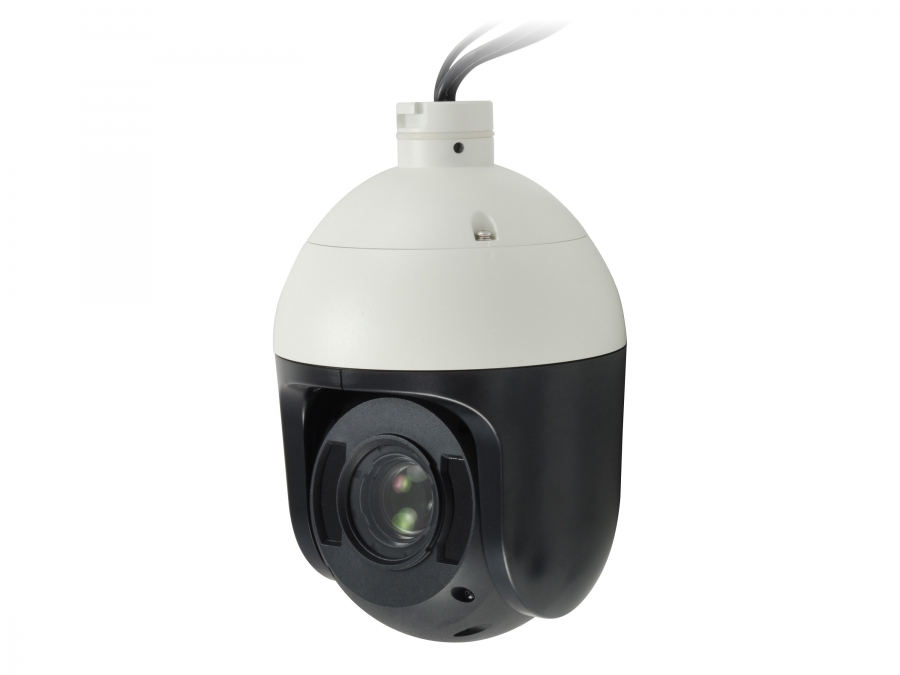

The LevelOne FCS-4048 is a PTZ IP surveillance camera designed for use outdoors, boasting 2-Megapixel resolution and a 33 X optical zoom. The camera features motorized Pan and Tilt features as well, enabling it to focus in a variety of directions and zoom in on a specific viewing area. The camera is also PoE, enabling it to run both power and data on the one Cat.5 cable, making deployments easy and efficient. An IP66-rated weatherproof casing allows for safe, reliable operation in outdoor conditions such as rain, heat, dust, snow and humidity.
|
| Type | IP security camera | | Placement supported | Indoor & outdoor | | Connectivity technology | Wired | | PTZ control | Y | | Day/night mode | Y | | Certification | CF/FCC | | Mounting type | Ceiling | | Product colour | Black, White | | Form factor | Dome | | LED indicators | Power | | Protection features | Vandal proof | | International Protection (IP) code | IP66 | | IK code | IK10 | | Weatherproof | Y | | Country of origin | Taiwan | | Field of view (FOV) angle | 61.7° | | Tilt speed | 280 °/sec | | Pan preset speed | 280 °/sec | | Camera shutter speed | 1/5 - 1/10000 s | | Adjustment shutter speed | Auto/Manual | | Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") | | Zoom capability | Y | | Optical zoom | 33x | | Maximum aperture number | 5 | | Minimum aperture number | 1.6 | | Focal length range | 4.5 - 148.5 mm | | Night vision | Y | | Night vision distance | 150 m | | LED type | IR | | Maximum resolution | 1920 x 1080 pixels | | Total megapixels | 2 MP | | Video formats supported | RAW | | Video compression formats | H.264, M-JPEG | | Supported graphics resolutions | 320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) | | Supported video modes | 240p, 480p, 720p, 1080p | | Frame rate | 60 fps | | Full HD | Y | | Audio input channels | 1 | | Audio output channels | 1 channels | | Audio codecs | G.711 | | Sample rate | 8 kHz | | Ethernet LAN | Y | | Wi-Fi | N | | Bluetooth | N | | Ethernet interface type | Fast Ethernet | | Supported network protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Number of users | 16 user(s) | | Built-in HDD | N | | Card reader integrated | Y | | Compatible memory cards | MicroSD (TransFlash), SD | | Maximum memory card size | 64 GB | | Ethernet LAN (RJ-45) ports | 1 | | Terminal block port | Y | | Password protection type | User | | Video motion detection | Y | | IP address filtering | Y | | HTTPS encryption | Y | | Reset button | Y | | Power source type | PoE | | AC input voltage | 24 V | | Power consumption (typical) | 25 W | | Power over Ethernet (PoE) | Y | | Operating temperature (T-T) | -40 - 50 °C | | Operating relative humidity (H-H) | 10 - 85% | | Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 | | Width | 191 mm | | Depth | 191 mm | | Height | 282 mm | | Weight | 2.75 kg | | Package width | 289 mm | | Package depth | 246 mm | | Package height | 289 mm | | Package weight | 2 kg | | Package type | Box | | Number of cameras | 1 | | AC adapter included | Y | | Resource CD | Y | | Browser supported | Microsoft Internet Explorer 8.0 | | Harmonized System (HS) code | 85258900 | | Master (outer) case width | 525 mm | | Master (outer) case length | 565 mm | | Master (outer) case height | 445 mm | | Master (outer) case gross weight | 20.7 kg | | Products per master (outer) case | 4 pc(s) |
|
