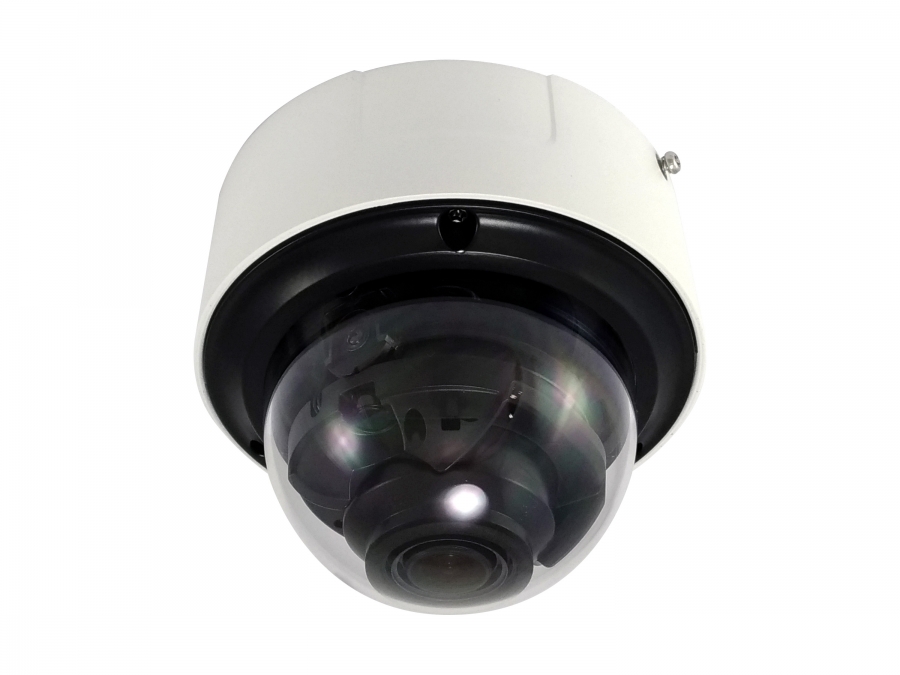

| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Y |
| Alarm input/output | Y |
| Infrared (IR) cut-off filter | Y |
| Dynamic range | 140 dB |
| Certification | CE/FCC/UL |
| Mounting type | Ceiling |
| Product colour | White |
| Form factor | Dome |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
| Weatherproof | Y |
| Country of origin | China |
| Lens viewing angle, horizontal | 103° |
| Lens viewing angle, vertical | 54° |
| Lens viewing angle, diagonal | 124° |
| White balance | Auto |
| Camera shutter speed | 1 - 1/100000 s |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Progressive scan | Y |
| Zoom capability | Y |
| Optical zoom | 4.3x |
| Night vision | Y |
| Night vision distance | 150 m |
| LED type | IR |
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video formats supported | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
| Frame rate | 60 fps |
| Noise reduction | Y |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Y |
| Bit rate | 32Kbps~16Mbps |
| Back Light Compensation (BLC) | Y |
| Voice codecs | G.711, G.722, G.722.1, G.726, MP2L2 |
| Ethernet LAN | Y |
| Wi-Fi | N |
| Bluetooth | N |
| Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS,RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,SNMP,IGMP,802.1X, QoS, IPv6, Bonjour |
| Live view | Y |
| Number of simultaneous live view channels | 20 channels |
| Built-in HDD | N |
| Card reader integrated | Y |
| Compatible memory cards | MicroSD (TransFlash), SD, SDHC, SDXC |
| Maximum memory card size | 256 GB |

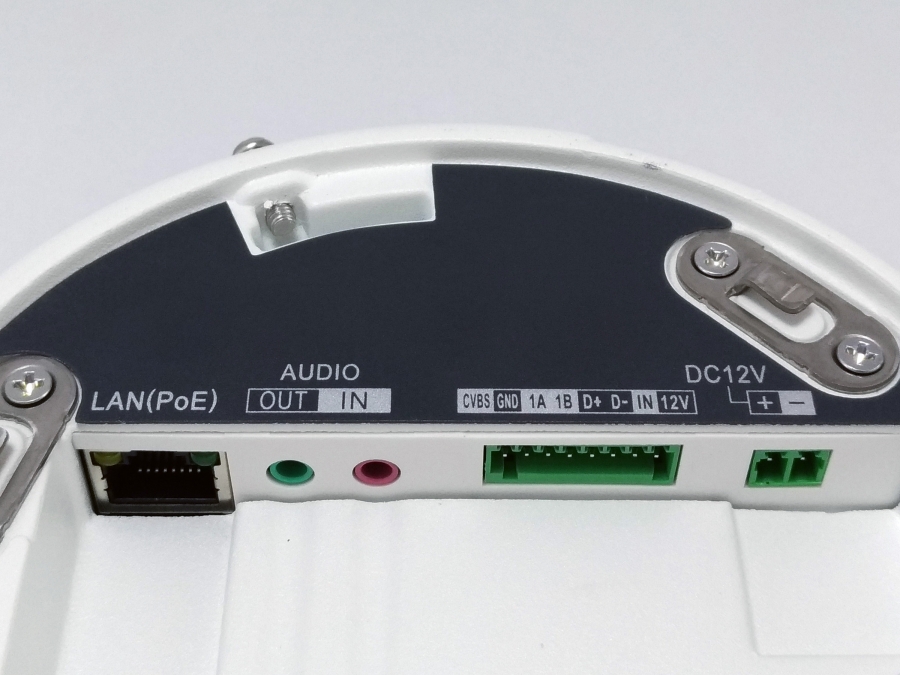

| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Y |
| Headphone outputs | 1 |
| DC-in jack | Y |
| Password protection | Y |
| Video motion detection | Y |
| IP address filtering | Y |
| Intelligent Video Surveillance (IVS) system features | Crossing line, Defocus, Face detection, Intrusion, Region entrance detection, Region exiting detection |
| Anti-flicker | Y |
| Mirror | Y |
| Digital watermark | Y |
| Reset button | Y |
| Power source type | DC, PoE |
| Power consumption (Power over Ethernet (PoE)) | 8 W |
| Power over Ethernet (PoE) | Y |
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Width | 133.1 mm |
| Depth | 153.4 mm |
| Height | 153.4 mm |
| Weight | 1.29 kg |
| Package width | 174 mm |
| Package depth | 173 mm |
| Package height | 244 mm |
| Package weight | 1.71 kg |
| Package type | Box |
| Number of cameras | 1 |
| Screws included | Y |
| Resource CD | Y |
| Browser supported | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
| Harmonized System (HS) code | 85258900 |
| Master (outer) case width | 365 mm |
| Master (outer) case length | 372 mm |
| Master (outer) case height | 504 mm |
| Master (outer) case gross weight | 13.7 kg |
| Products per master (outer) case | 8 pc(s) |
