| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Y |
| Infrared (IR) cut-off filter | Y |
| Mounting type | Ceiling |
| Product colour | White |
| Form factor | Dome |
| Protection features | Dust resistant, Heat resistant, Rain proof, Snow resistant |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
| Weatherproof | Y |
| Country of origin | China |
| Lens viewing angle, horizontal | 86° |
| Lens viewing angle, vertical | 46° |
| Lens viewing angle, diagonal | 102° |
| Camera shutter speed | 1/3 - 1/100000 s |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Y |
| Number of lenses | 1 |
| Focus adjustment | 2.0 |
| Fixed focal length | 4 mm |
| Night vision | Y |
| Night vision distance | 30 m |
| LED type | IR |
| Maximum resolution | 2680 x 1520 pixels |
| Total megapixels | 4 MP |
| Video formats supported | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 320 x 240, 352 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520 |
| Frame rate | 30 fps |
| Video streaming | Y |
| Noise reduction | Y |
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Flip & mirror | Y |
| Portrait mode | Y |
| Privacy masking | Y |
| Time stamp overlay | Y |
| Text caption overlay | Y |
| Image stabilizer | Y |
| Back Light Compensation (BLC) | Y |
| Audio formats supported | G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, PCM |
| Ethernet LAN | Y |
| Wi-Fi | N |
| Bluetooth | N |
| Networking standards | IEEE 802.1af |
| Supported network protocols | IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP,IGMP,SNMP |
| Number of users | 32 user(s) |
| Quality of Service (QoS) support | Y |
| Built-in HDD | N |

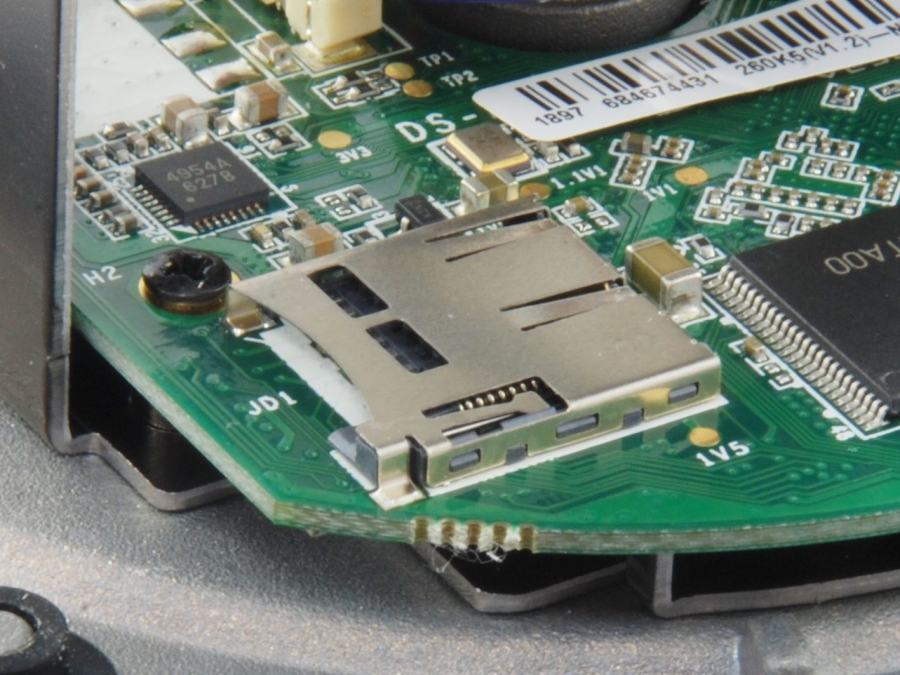

| Card reader integrated | Y |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Maximum memory card size | 128 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Y |
| Password protection | Y |
| Video motion detection | Y |
| Active tampering alarm | Y |
| IP address filtering | Y |
| Motion sensor | Y |
| Anti-flicker | Y |
| Heartbeat | Y |
| Mirror | Y |
| Digital watermark | Y |
| Reset button | Y |
| Power source type | DC, PoE |
| Power consumption (max) | 8.5 W |
| Power consumption (Power over Ethernet (PoE)) | 10 W |
| DC output voltage | 12 |
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Height | 82 mm |
| Diameter | 11.1 cm |
| Weight | 500 g |
| Package width | 134 mm |
| Package depth | 134 mm |
| Package height | 108 mm |
| Package weight | 530 g |
| Package type | Box |
| Number of cameras | 1 |
| Screws included | Y |
| Resource CD | Y |
| Browser supported | Internet Explorer 8 above,Safari 8.0 |
| Sustainability certificates | RoHS |
| Pallet net height | 150 cm |
| Pallet net length | 80 cm |
| Pallet net width | 120 cm |
| Harmonized System (HS) code | 85258900 |
| Master (outer) case width | 345 mm |
| Master (outer) case length | 590 mm |
| Master (outer) case height | 568 mm |
| Master (outer) case gross weight | 608 g |
| Products per master (outer) case | 24 pc(s) |
| Number of video streams | 3 |
