Level One LevelOne IPCam FCS-4048 PTZ33x Dome Out 2MP H.264 IR 60W PoE

LEVEL ONE

FCS-4048

Jauns

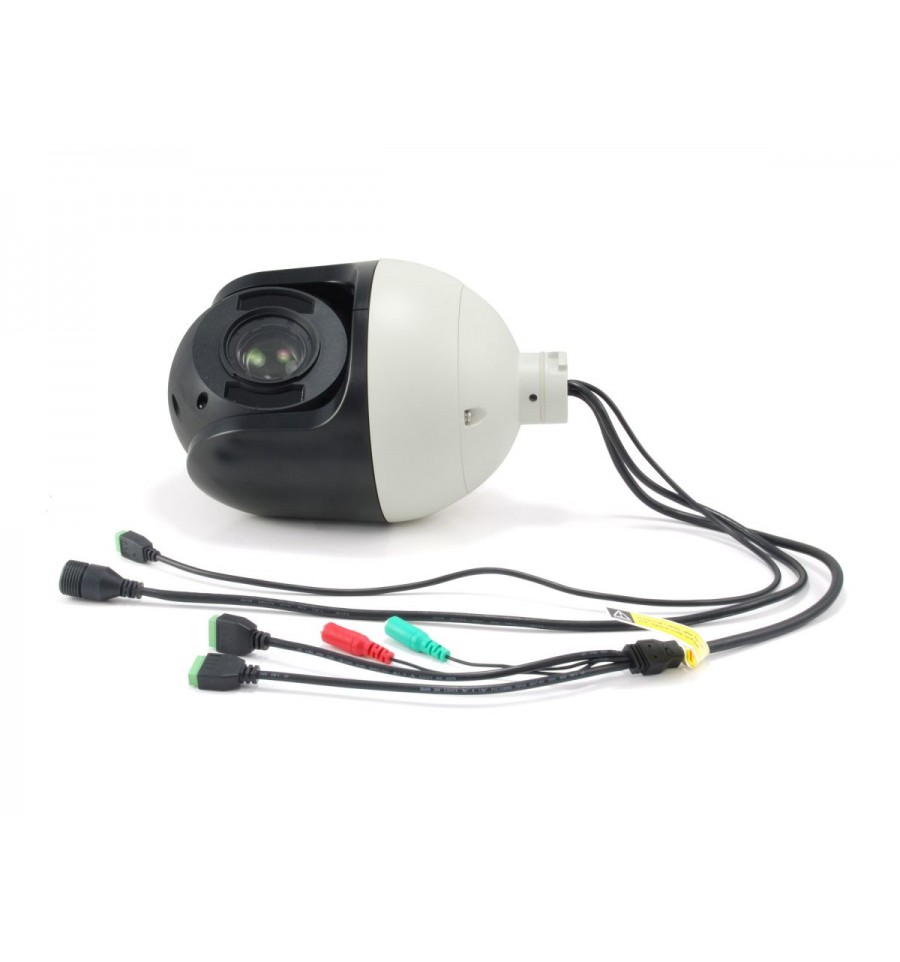

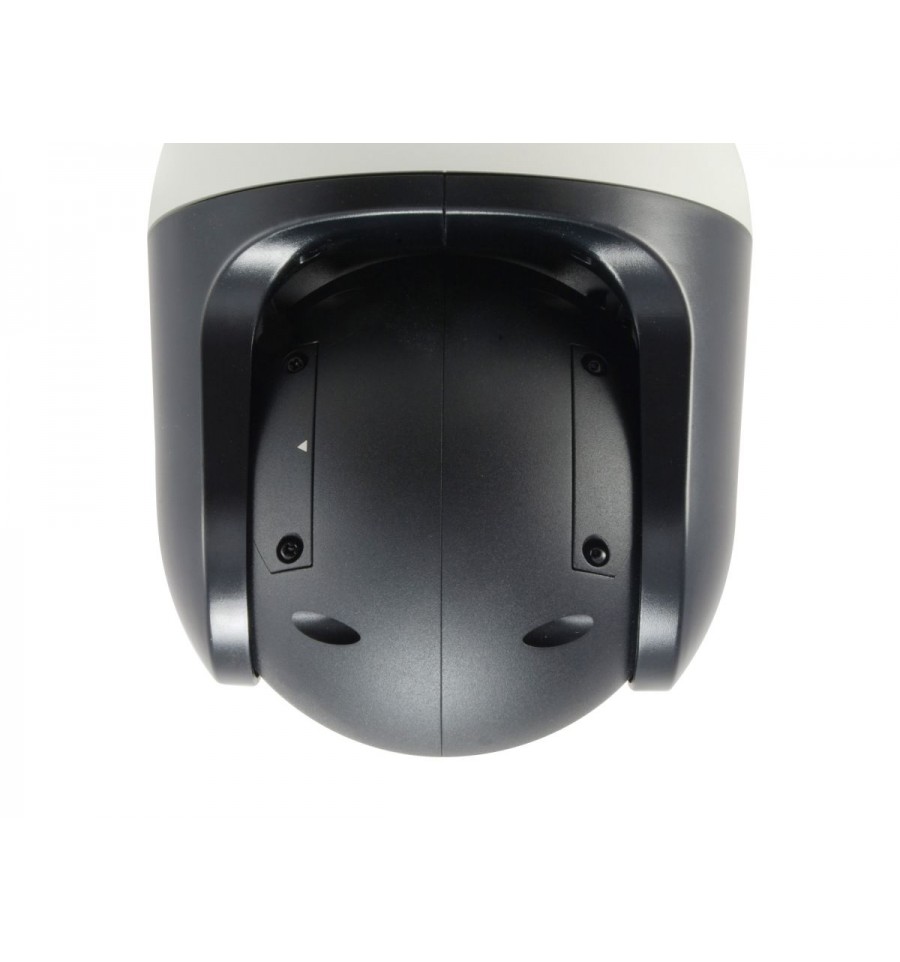

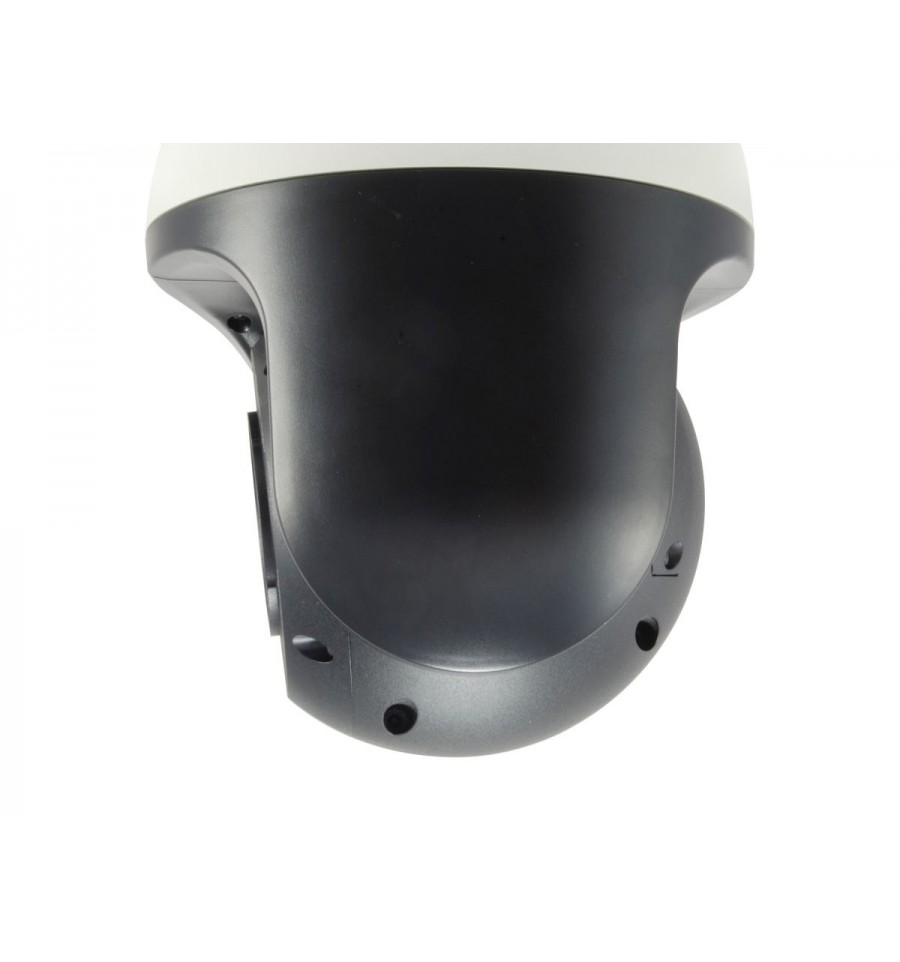

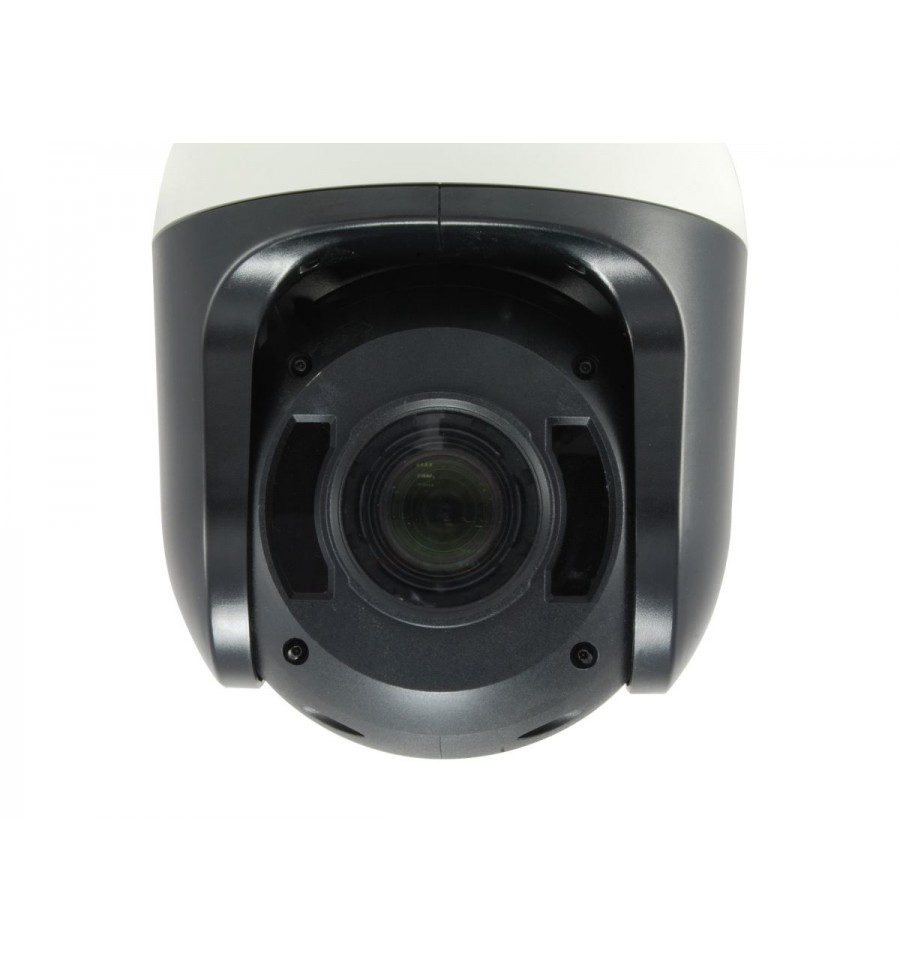

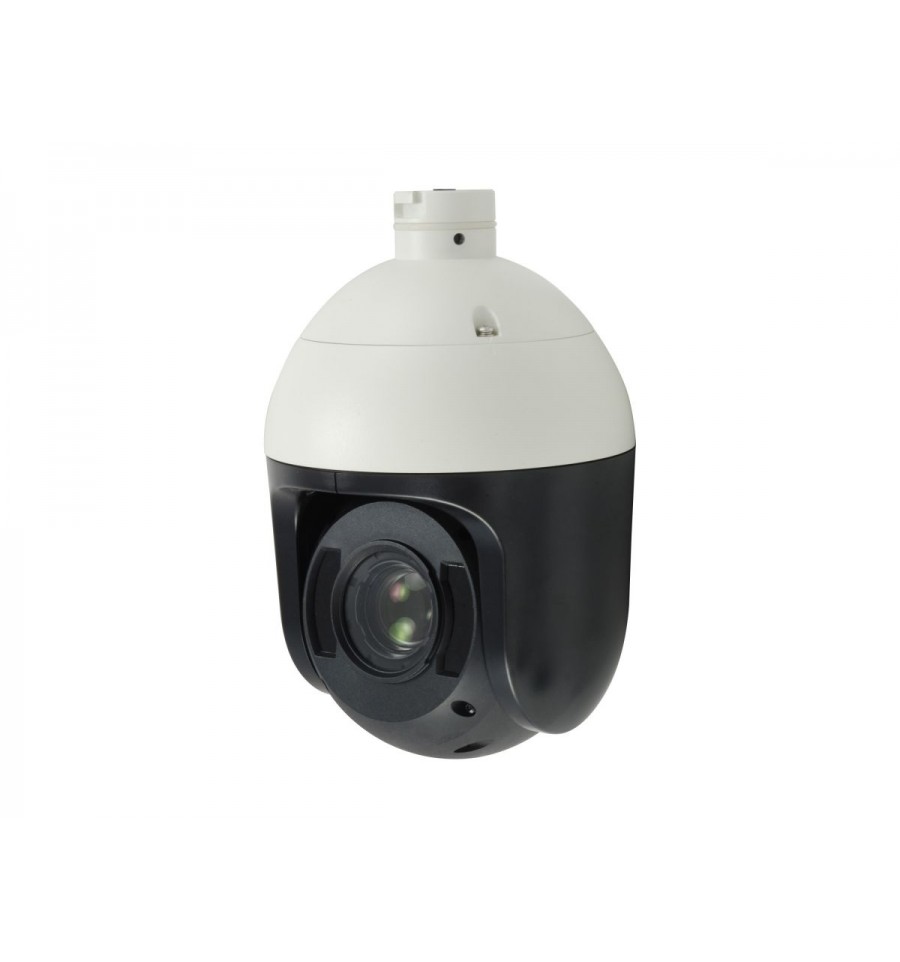

FCS-4048 HUBBLE PTZ IP Camera, 2-MP, 33X

Model Number
FCS-4048
SKU
57304107
  • 2-Megapixel (1920 x 1080) high-definition resolution
  • 60 fps High Frame Rate (HFR) video in 1080p
  • Built-in infrared LEDs for night viewing up to 160m
  • Supports 33X optical zoom
  • Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments
  • Built-in Micro SDHC/SDXC card slot for local storage
  • Video compression: H.264, MJPEG
  • Weatherproof IP66-rated housing
  • Vandal-proof IK10-rated housing
The LevelOne FCS-4048 is a PTZ IP surveillance camera designed for use outdoors, boasting 2-Megapixel resolution and a 33 X optical zoom. The camera features motorized Pan and Tilt features as well, enabling it to focus in a variety of directions and zoom in on a specific viewing area. The camera is also PoE, enabling it to run both power and data on the one Cat.5 cable, making deployments easy and efficient. An IP66-rated weatherproof casing allows for safe, reliable operation in outdoor conditions such as rain, heat, dust, snow and humidity.
Other
Approval and complianceCF,FCC,UL,IK10,IP66
CompatibilityONVIF
Supported browsersIE8+
Operating temperature-40°C ~ 60°C
Storage temperature10°C ~ 95°C
System specifications
Angle of View (°)Horizontal Viewing Angle 69.3 - 3
Audio format8 kHz, Mono, PCM, 16 bit encoding; G.711
Digital zoom8X
Image sensor1/2.8"Progressive Scan CMOS
IndicatorsPower
IR cut filterYes
IR range150 Meter
Lensf4.5 - 148.5mm / F1.6 - 5.0
Minimum illumination (lux)Color: 0.05 lux at F1.6 (30 IRE, 2400°K); B/W: 0 lux at F1.6 (30 IRE, 2400°K)
Optical zoom33X
Power supplyAC24V /3A
Resolution60 fps at 1920 x 1080; 60 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
Shutter time1/5 - 1/32,000 sec (manual mode); 1/5 -1/32,000 sec (auto mode)
Storage capacitySD/MicroSD memory card of up to 64GB
StandardsTCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, 802.1x
Video formatH.264/ MJPEG
Features
FeaturesVideo motion detection (10 regions); External device through digital input; Sound detection,Automatic White balance (AWB)
Physical Specifications
Product weight (kg)2,75
Default
ColorWhite
EAN4015867203873
Model NumberFCS-4048
Package contentsFCS-4048
Screw Kit
Resource CD (User Manual, Utility, 64-CH Monitoring Software)
Port Configuration

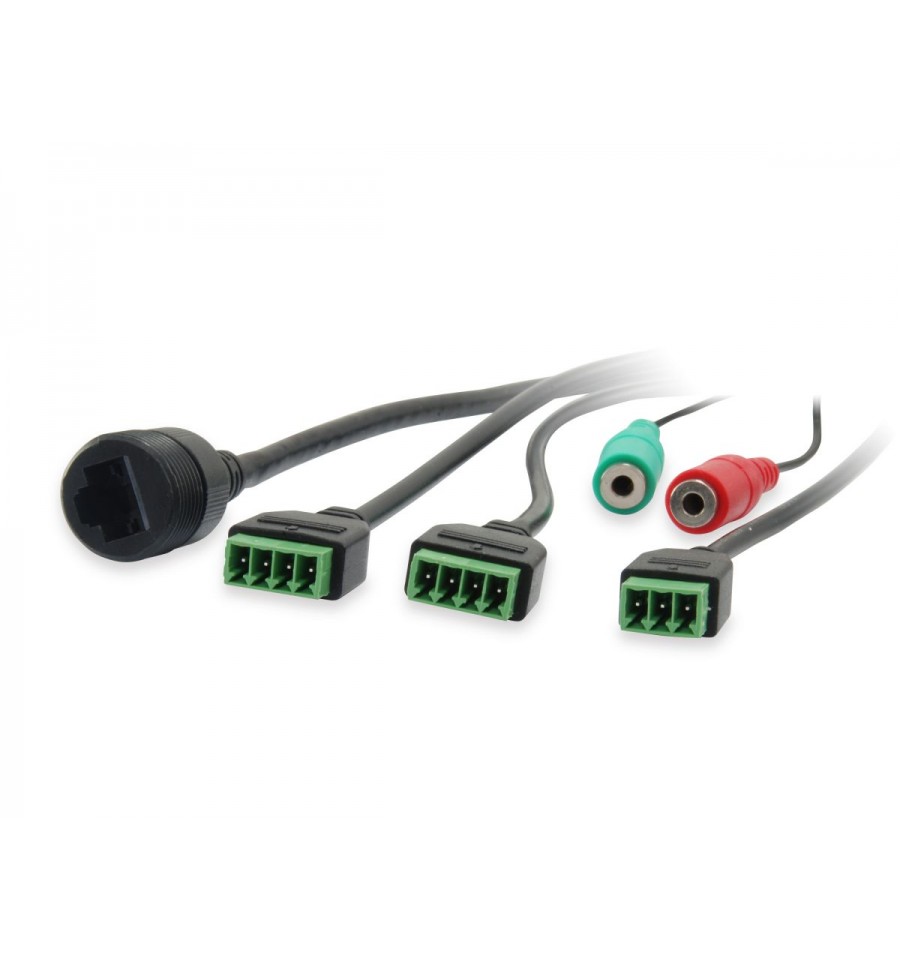

Terminal blockDI/DO
Filter
Camera TypeSpeed Dome
ResistanceWeatherproof
Zoom TypeMotorization
2-way AudioYes
IR Leds for night visionYes
PoE SupportedYes
Max. Resolution2 Megapixels
IP Camera seriesHUBBLE
Akeneo
Power consumptionHigh PoE 50 W (PoE, heater and fan on )(POI-5001)
AC 24V 62 W (AC, heater and fan on)
Dimensions (W x D x H)191 x 191 x 282 mm
