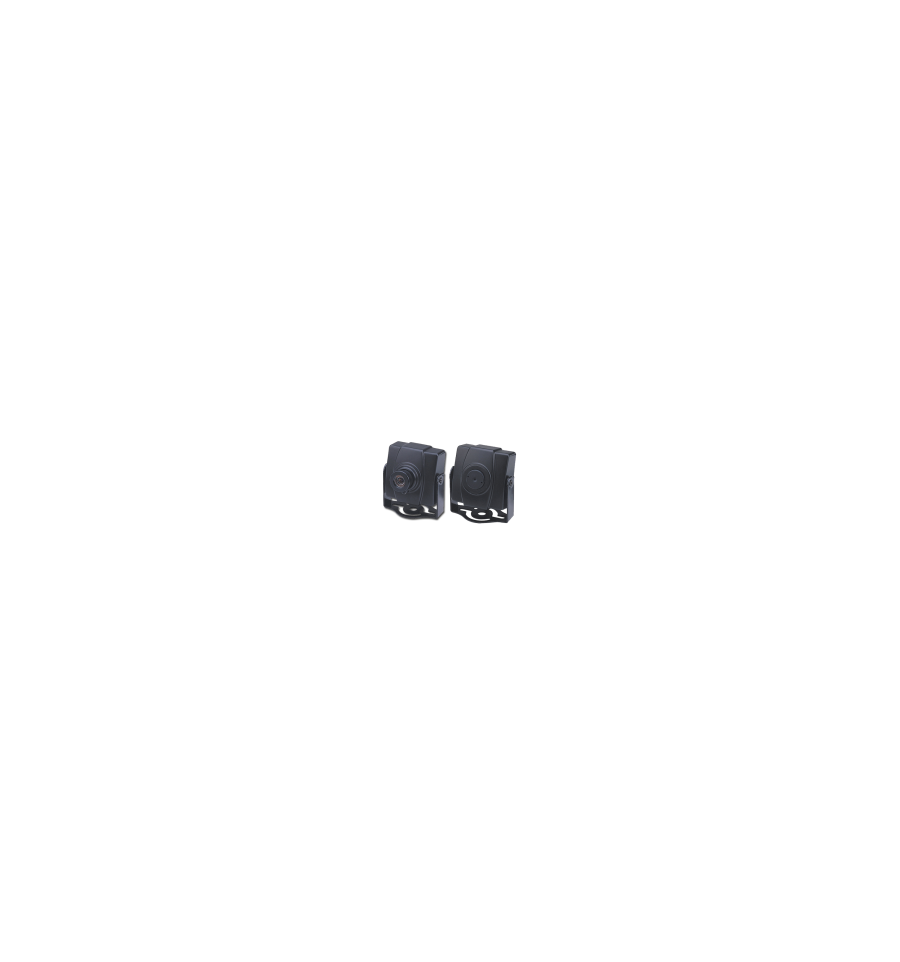

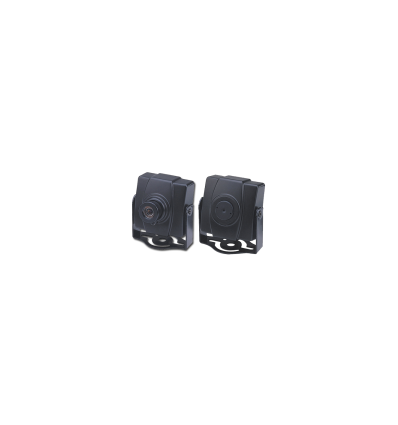

Mini analoga kamera ar objektīvu

Specifications

Model Name

RYK-2849/2850

Image Device

1/3" Color Sony Super HAD

Picture Elements

NTSC:510x492, PAL:500x582

Resolution

380 TVL

Min. Illumination

0.2 Lux / F 2.0

S/N Ratio

More than 48dB

Electronic Shutter

NTSC:1/60~1/100,000, PAL:1/50~1/110,000

Gamma

0.45

Lens Furnished

RYK-2849: Board Lens 3.6mm / F2.0 (option:2.5/4.3/6/8/12/16mm)
RYK-2850: Pinhole Lens 3.7mm / F2.0 (option:4.3mm)

White Balance

Auto

Gain Control

Auto

Sync. System

Internal

Video Output

1 Vp-p / 75 Ohms

Audio Output

2 Vp-p / 50 Ohms (option)

Power Supply

DC12V±10%

Power Consumption

117mA max.

Operating Temp.

-10°C ~ 50°C
