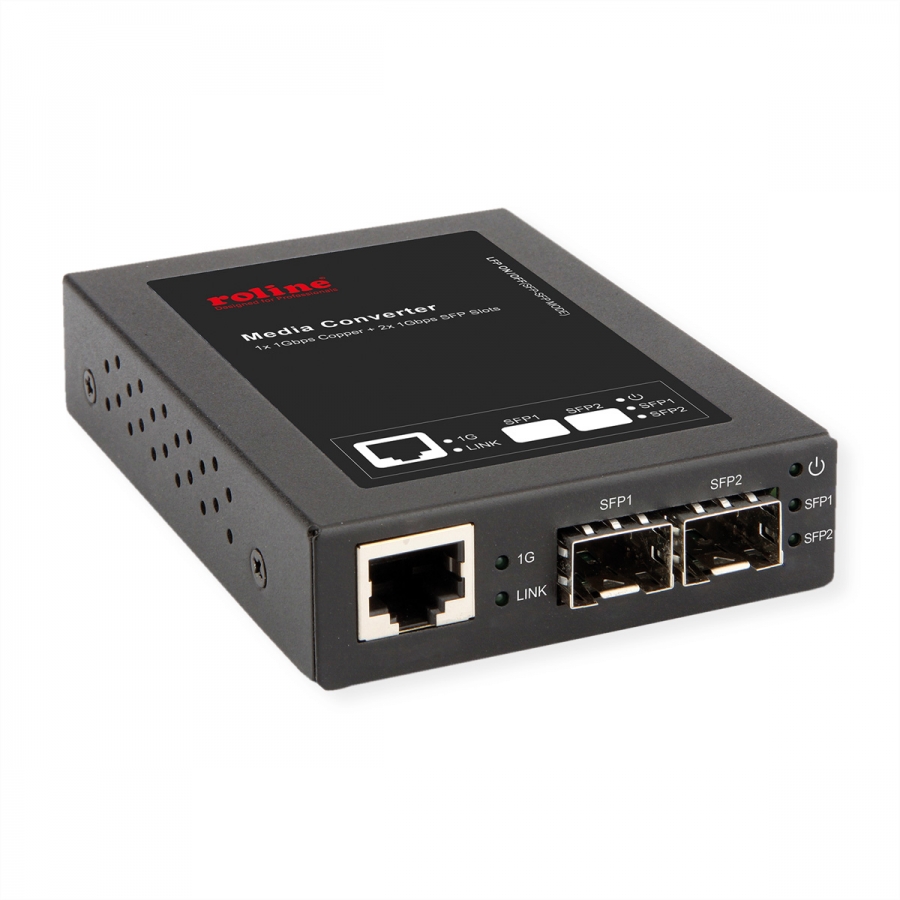

Fiber optic converters can be used to adapt different cabling within a LAN to create a functional network. Whether for converting fiber optics to a classic twisted pair network with a Mini-GBIC or for converting fiber optics to another fiber optic network with two Mini-GBICs. The ROLINE GigaBit converter offers both options.The ROLINE Gigabit Converter converts a Gigabit Ethernet TP port to fiber optic or a fiber optic port to a second fiber optic port. The fiber optic connections can be freely selected using a Mini-GBIC module. Mini-GBIC modules are available for SX/LC (21.14.3500) and LX/LC (21.14.3501: 10km, 21.14.3502: 20km).
- Compliant with IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3ab 1000BaseT and IEEE 802.3z 1000BaseSX/LXGigabit Ethernet Standards
- Connectors: 1x 10/100/1000BaseT Gigabit Ethernet TP port and 2x Mini-GBIC slots on the fiber optic side
- Power is supplied via an external power supply (included)
- TP port supports Full-Duplex, Auto-MDI/MDI-X, Auto-Negotiation
- Each SFP slot supports both singlemode and multimode or mixed
- Link Loss Forwarding (LLF) / Link Fault Pass Through (LFP)
- Dimensions: 22 x 74 x 102 mm
- Scope of delivery: converter, quick installation guide, plug-in power supply unit (5V DC, 2A)
|
