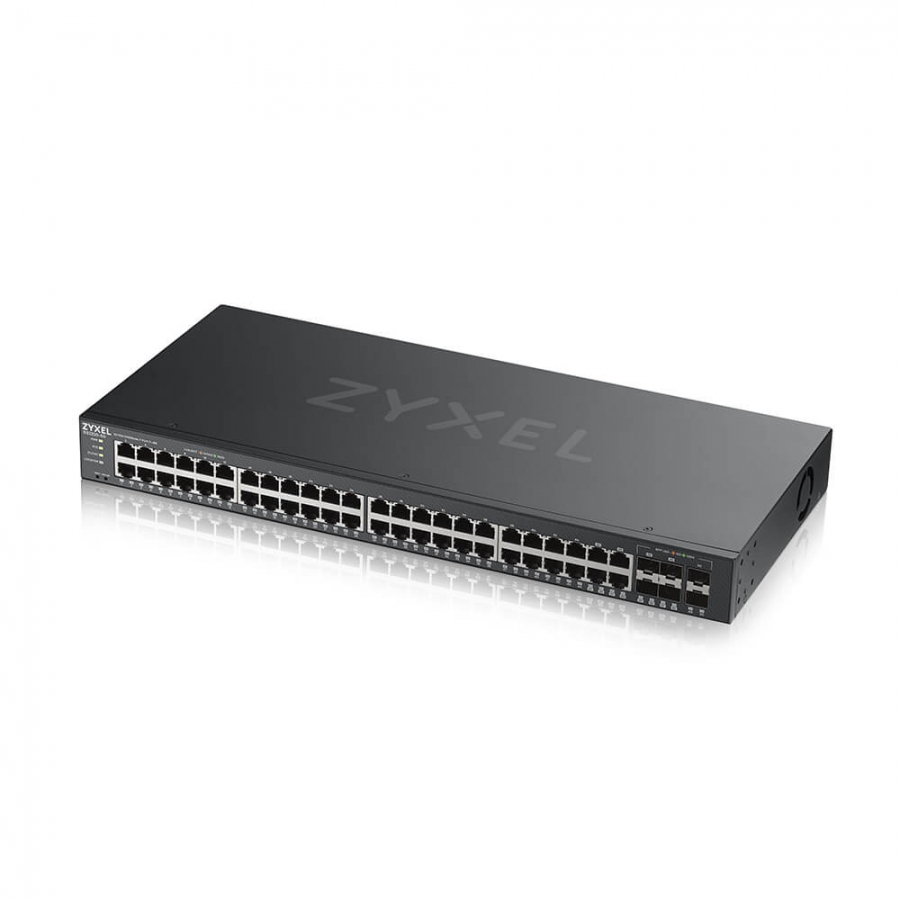

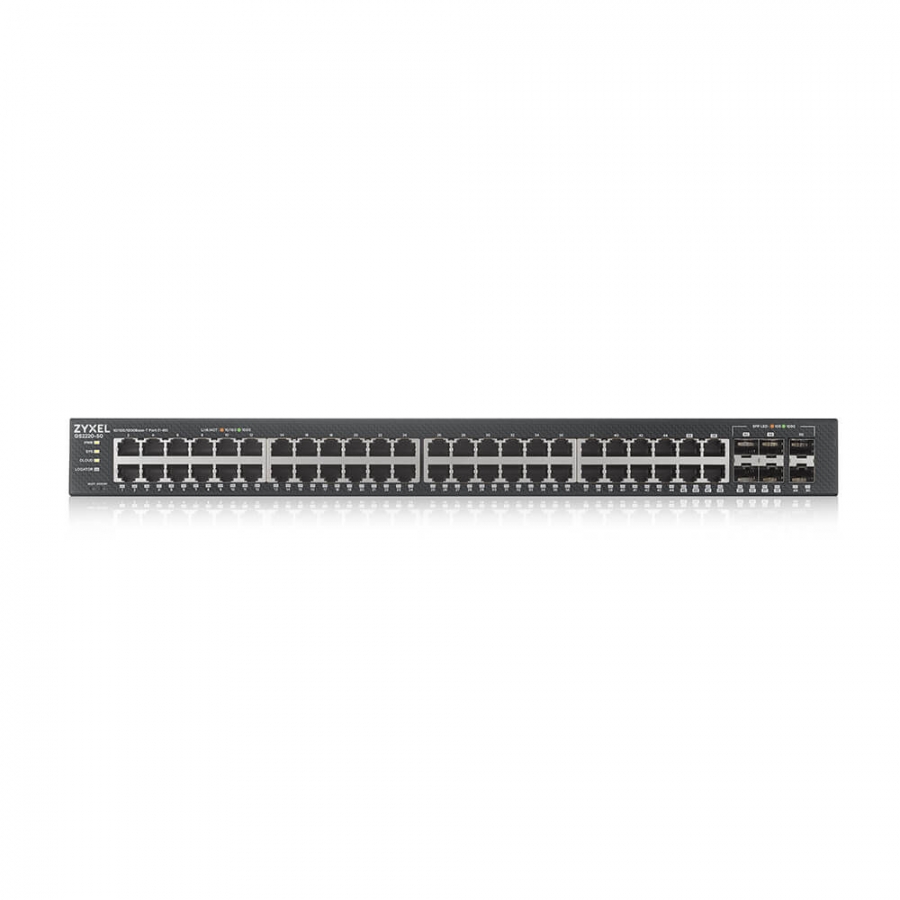

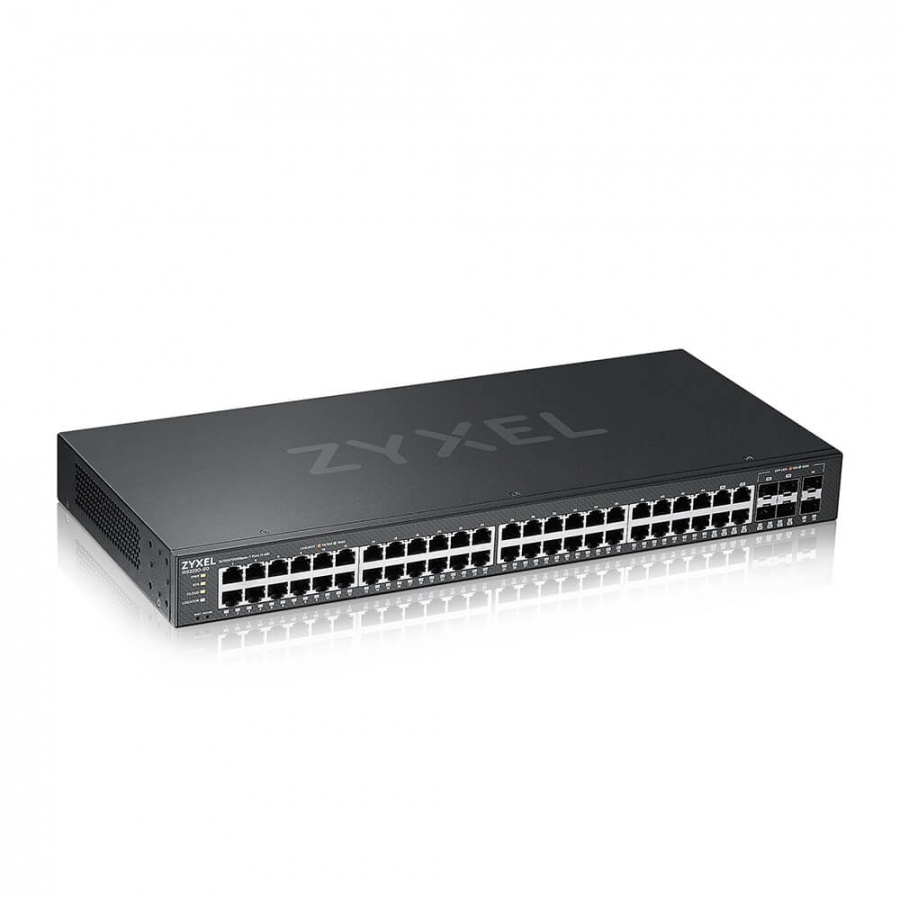

Zyxel Switch 50x GE GS2220-50 44Port+ 4xSFP/Rj45+ 2xSFP

Manufacturer: ZYXEL

Kods GS2220-50-EU0101F

Condition: Jauns

Vairāk informācijas

Designed for converged networks GS2220 Series Zyxel’s new generation of Layer 2 Managed Switch GS2220 Series are fully featured Layer 2 Gigabit access switches designed to meet converged data, video and voice networking needs. This latest series’ eye-catching new look comes in 10-, 28-, and 50-port models with a combination of PoE and non-PoE. On top of the fully manageable L2 features set comes with the state-ofart Zyxel NebulaFlex Pro technology for cloud manageability.Industry first tri-mode switch. The GS2220 Series is the first managed hybrid switch with Nebula Cloud management, Standalone management, and SNMP.Powerful L2 features. The GS2220 Series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference and IPTV deployments. Advanced traffic control features of the GS2220 Series such as L2 multicast, IGMP snooping, MVR provide businesses greater agility and more effective traffic management for the converged applications of today.Manage it your way! The support of Zyxel NebulaFlex Pro allows you to easily switch standalone management and intuitive Nebula cloud management platform with 1-YEAR Pro Pack bundled anytime with just a few simple clicks.Experience whisper-silent operations. This Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating.Flexible port combination. The GS2220 Series includes copper ports and combo ports, 50 and 50HP models even come with additional dedicated SFP ports for uplinks. This flexible port combination can fit in every Layer 2 switching applications easily.Plug into the power of the Zyxel One Network. The Zyxel One Network (ZON) Utility is a unified installation tool to discover and configure Zyxel Switches, WLAN and Gateways in the standalone network. Users can easily maintain the network in a single platform. ZON Utility is a free of charge tool which has been downloaded by over 32,000 users to date.

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Y
Web-based management	Y
Configuring Location Settings (CLI)	Y
System event log	Y
Basic switching RJ-45 Ethernet ports quantity	44
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	4
Fiber ports quantity	2
Fiber optic connector	SFP
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	N
Copper ethernet cabling technology	10BASE-TX, 1000BASE-T
Port mirroring	Y
Flow control support	Y
Link aggregation	Y
Broadcast storm control	Y
Rate limiting	Y
Spanning tree protocol	Y
VLAN support	Y
Virtual LAN features	Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Fiber ethernet cabling technology	1000BASE-X
MAC address table	16000 entries
Switching capacity	100 Gbit/s
Forwarding rate	74 Mpps
Packet buffer memory	1.5 MB
DHCP features	DHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay
Access Control List (ACL)	Y
IGMP snooping	Y
Security algorithms	SNMP, SNMPv2, SNMPv3, SSH-2, SSL/TLS
MAC address filtering	Y
Authentication	Guest VLAN, MAC-based authentication
Authentication type	IEEE 802.1x, RADIUS
Multicast support	Y
Rack mounting	Y
Product colour	Black
Certification	LVD, BSMI FCC 15 A, CE EMC A, BSMI ENC RoHS A
Internal memory	256 MB
Flash memory	32 MB
Noise level	47.3 dB
Mean time between failures (MTBF)	660245 h
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	36.9 W
Power over Ethernet (PoE)	N
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	10 - 95%
Heat dissipation	125.829 BTU/h
Width	440 mm
Depth	200 mm
Height	44.5 mm
Weight	2.9 kg
Cables included	AC
Package width	496 mm
Package depth	289 mm
Package height	90 mm
Package weight	3.97 kg
Harmonized System (HS) code	85176990
