ROLINE Industrial Converter RJ-45, Fiber Optic 1000SX/LC
Previous Next

ROLINE Industrial Converter RJ-45, Fiber Optic 1000SX/LC

ROLINE

21.13.1144

Jauns

  • Provides direct media conversion for Gigabit copper and Gigabit fiber
  • Plug and play design with no configuration setting
  • Support DIN-rail mounting and panel mounting

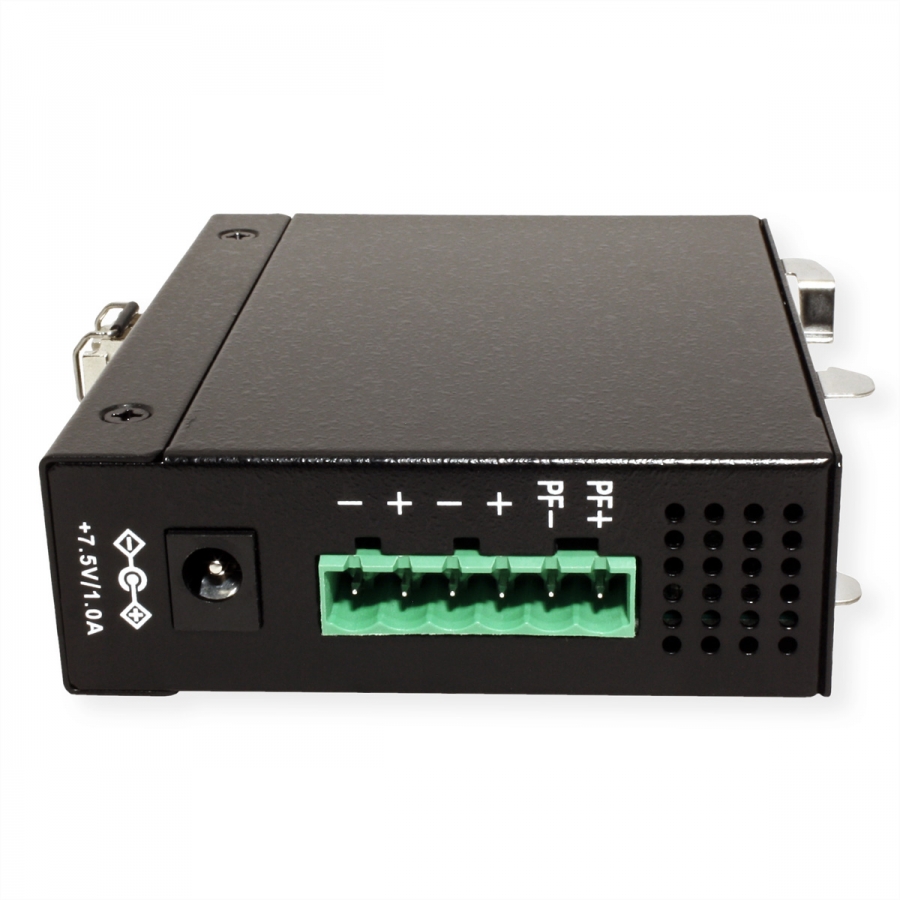

  • Two power interface types: screw terminal block and DC Jack
  • Low power consumption
  • Support full wire speed conversion
  • Support transparent conversion of any packet types with no packet length limitation
  • Support auto-negotiation with link partners
  • Provide link pass through between copper and fiber link

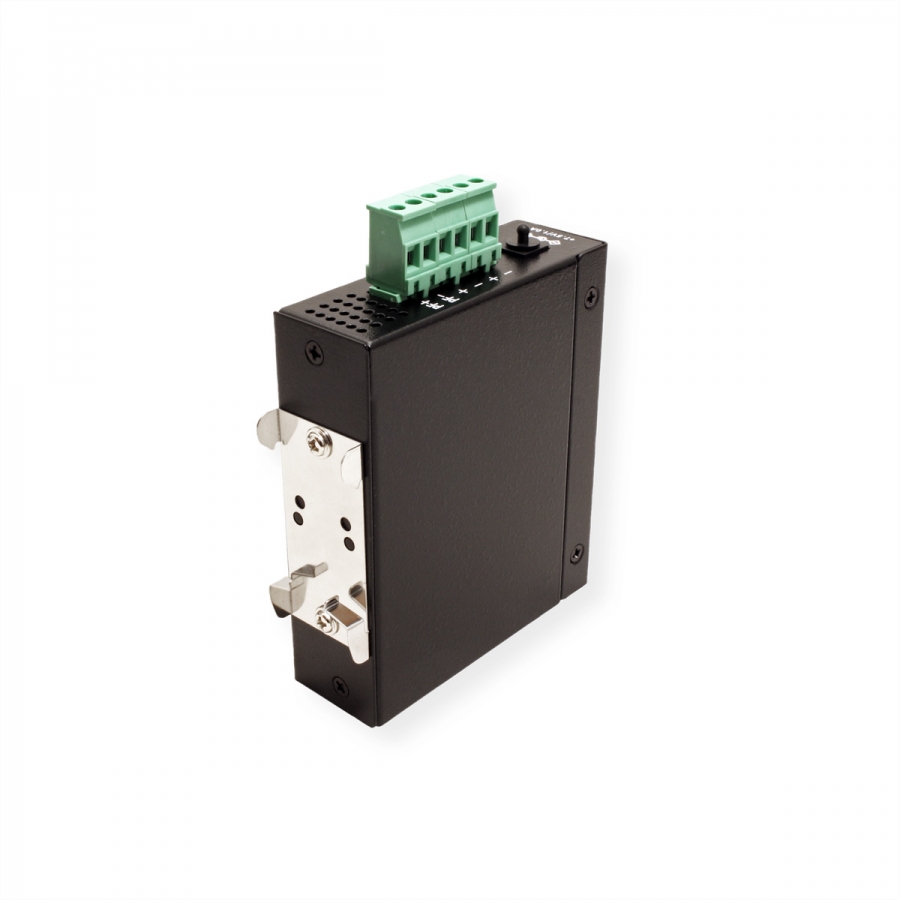

  • Supports DIN-rail mounting
  • Copper port:
- Shielded RJ-45,1000Mbps
- Auto-negotiation capable
- Auto-MDI/MDI-X crossover function
  • Fiber port:
- SFP connector with pre-configured SFP fiber transceiver
- Far End Fault support
  • Power: Input: 7 - 30V DC, consumption: 2,5W (max.)
  • Operating Temperature: - 20 °C - +70 °C
  • Dimensions: 28 x 82 x 95 mm (WxDxH)



ManufacturerROLINE
Product groupNetwork converters
Product typeMedia Converter
Colourblack
RJ-45 Port (Mbps/s)1000
Fibre Ports (Mbps)1000
Quantity of RJ45 ports1
Quantity of fibre LC ports1
FibreMultimode
Ethernet fibre standard1000Base-SX
Max. range 50 µm fibre500 m
Max. range 62,5 µm fibre220 m
ManagedNē
Technical particularity- 20 ºC - +70 ºC
Height95 mm
Width28 mm
Depth82 mm
Weight279.55 g
Height of packaging (single piece)70 mm
Width of packaging (single piece)130 mm
Depth of packaging (single piece)170 mm
Package weight (single piece)0.346 kg
Current catalog editionC22-01.13
