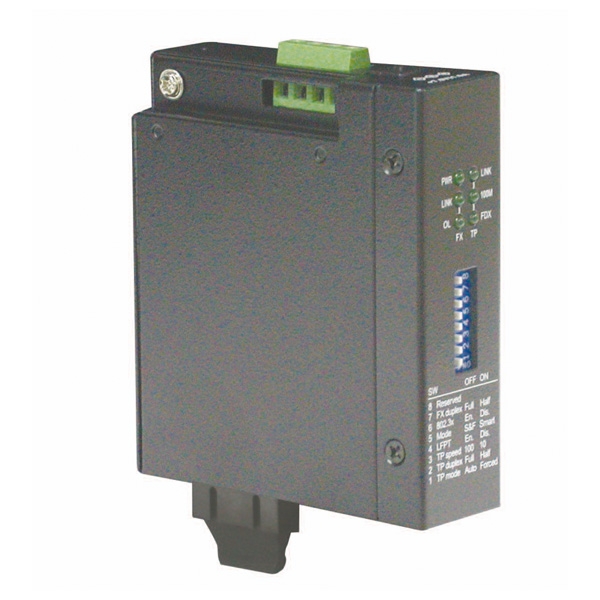

ROLINE Industrial Converter 10/100Base-T - Multimode Optical Fiber, SC

ROLINE Industrial Converter 10/100Base-T - Multimode Optical Fiber, SC

ROLINE

21.13.1143

Jauns

Salīdzināt
• Support full wire speed copper-to-fiber media conversion for 10/100Mbit/s speed and media types
• Support auto-negotiation 10/100Mbps or forced mode on TP copper port
• Auto MDI/MDI-X crossover function on the TP copper port
• Provide Link Fault Pass Through function
• Provide comprehensive manual configuration settings
• Transparent conversion to 802.1Q VLAN tagged packets
• Provides Far End Fault function on FX (fiber) port
• Low power consumption
• DC Input via terminal block or DC power jack (6.3mm/2.0mm)
• Power: Input: 7 - 30V DC, Consumption: 2.6W (max.)
• Operating Temperature: - 10 °C - +70 °C
• Supports DIN rail mounting
• Industrial-rated Emission and Immunity performance
• Dimensions: 28 x 82 x 95 mm (WxDxH)
• As according Power Supply Unit we recommend 21.13.1226

ManufacturerROLINE
Manufacturer Item No.21.13.1143
Product groupNetwork converters
Product type10/100/1000T to 100/1000 Fiber Converter
RJ-45 Port (Mbps/s)10/100
Fibre Ports (Mbps)100
Quantity of RJ45 ports1
Quantity of fibre SC ports1
FibreMultimode
Ethernet fibre standard100Base-FX
Max. range 50 µm fibre2 km
Max. range 62,5 µm fibre2 km
ManagedNē
Technical particularity- 10 ºC - +70 ºC
Gross Weight.36
