> >>ROLINE Industrial Converter RJ-45, LWL 1000SX/LC
ROLINE Industrial Converter RJ-45, LWL 1000SX/LC
Previous Next

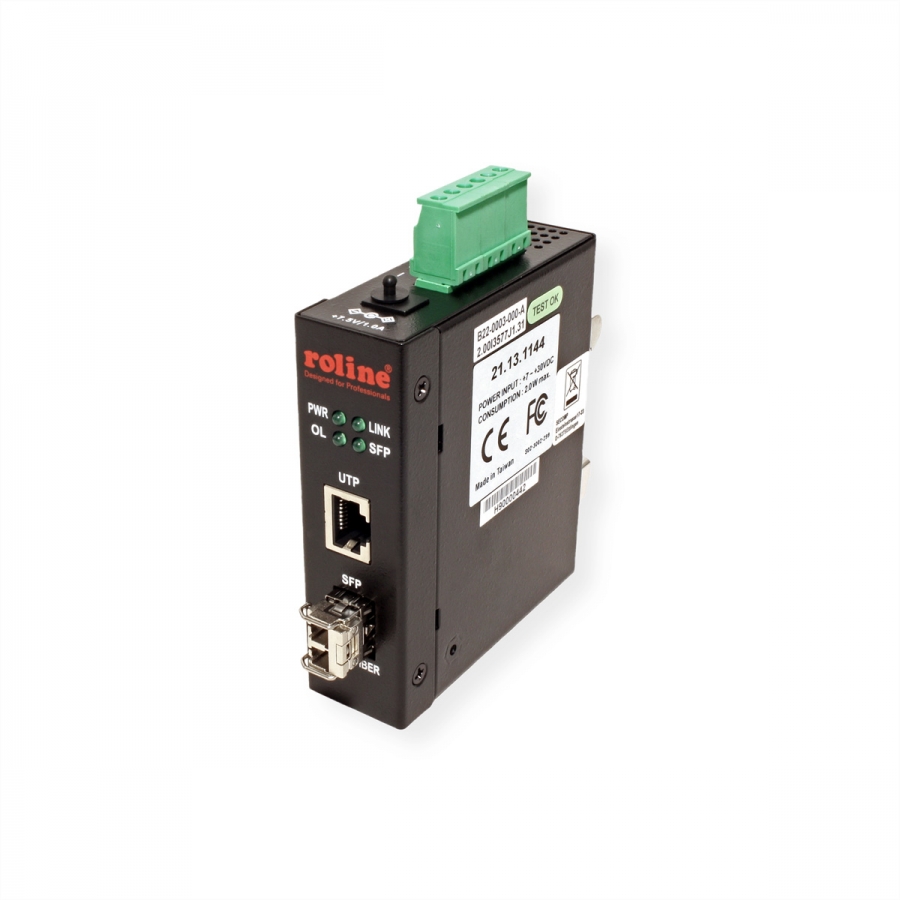

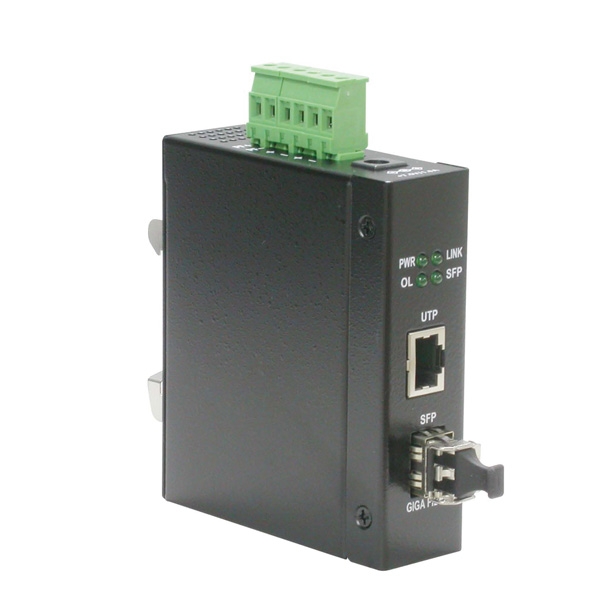

ROLINE Industrial Converter RJ-45, LWL 1000SX/LC

ROLINE

21.13.1144

Jauns

Salīdzināt
• Provides direct media conversion for Gigabit copper and Gigabit fiber
• Plug and play design with no configuration setting
• Support DIN-rail mounting and panel mounting
• Two power interface types: screw terminal block and DC Jack
• Low power consumption
• Support full wire speed conversion
• Support transparent conversion of any packet types with no packet length limitation
• Support auto-negotiation with link partners
• Provide link pass through between copper and fiber link

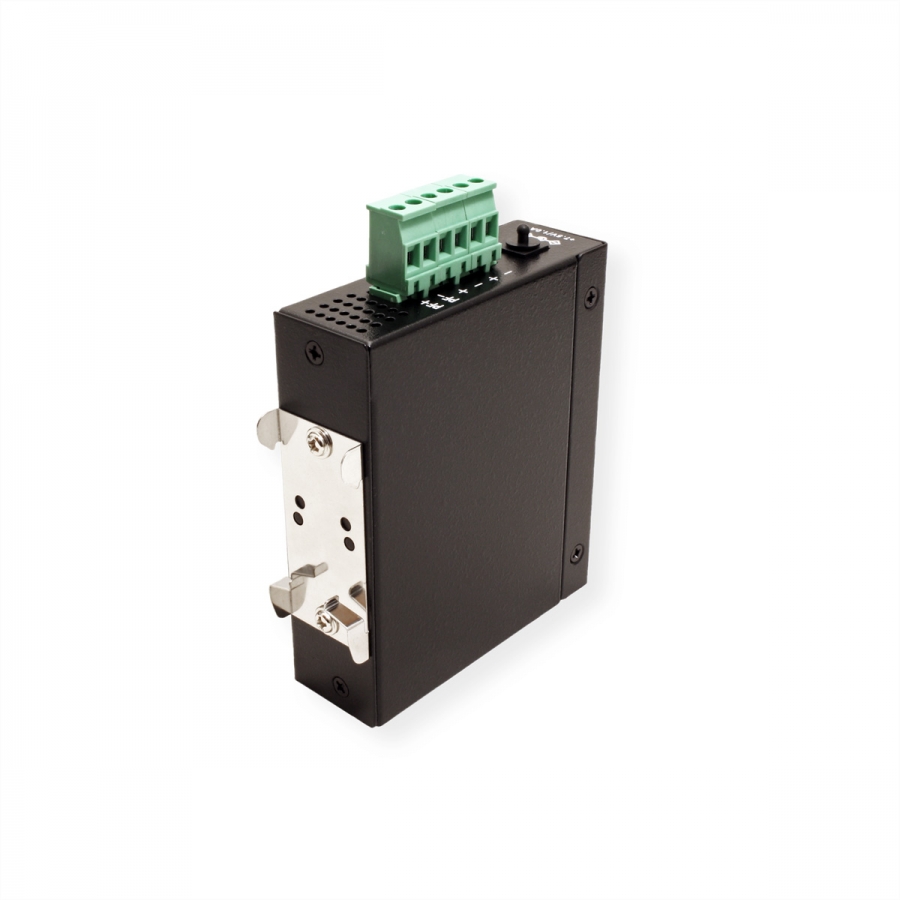

• Supports DIN-rail mounting
• Copper port:
- Shielded RJ-45,1000Mbps
- Auto-negotiation capable
- Auto-MDI/MDI-X crossover function
• Fiber port:
- SFP connector with pre-configured SFP fiber transceiver
- Far End Fault support
• Power: Input: 7 - 30V DC, consumption: 2,5W (max.)
• Operating Temperature: - 20 °C - +70 °C
• Dimensions: 28 x 82 x 95 mm (WxDxH)

ManufacturerROLINE
Manufacturer Item No.21.13.1144
Product groupNetwork converters
Product type10/100/1000T to 100/1000 Fiber Converter
RJ-45 Port (Mbps/s)1000
Fibre Ports (Mbps)1000
Quantity of RJ45 ports1
Quantity of fibre LC ports1
FibreMultimode
Ethernet fibre standard1000Base-SX
Max. range 50 µm fibre500 m
Max. range 62,5 µm fibre220 m
ManagedNē
Technical particularity- 20 ºC - +70 ºC
Gross Weight.356
