> >>Delock 3.5″ USB 3.2 Gen 1 Front Panel 2 x USB Type-C™ + 2 x USB Type-A
Delock 3.5″ USB 3.2 Gen 1 Front Panel 2 x USB Type-C™ + 2 x USB Type-A

Delock 3.5″ USB 3.2 Gen 1 Front Panel 2 x USB Type-C™ + 2 x USB Type-A

DELOCK

64155

Jauns

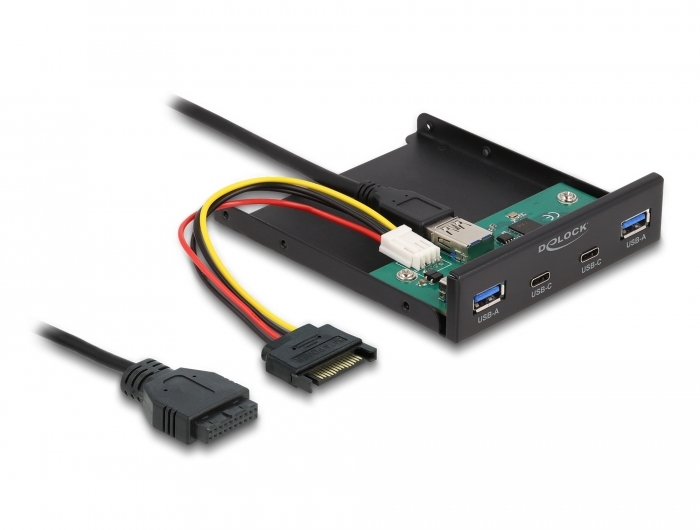

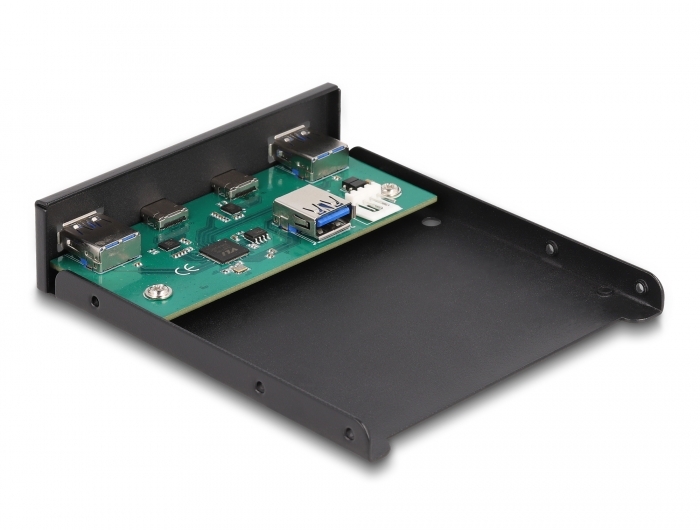

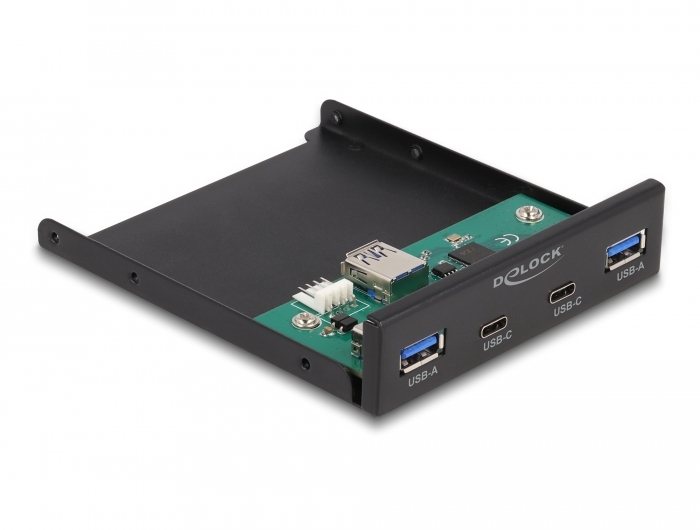

This hub by Delock can be installed into a 3.5″ bay of the PC. It will be connected internally via a USB pin header male on the motherboard. It has two USB Type-A and two USB Type-C™ ports.
System requirements:
• Linux Kernel 3.3 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC with one free 3.5″ bay
• Motherboard with a free 19 pin USB pin header male
• Power supply with SATA 15 pin receptacle
Specification:
• Connectors:
  external:
    2 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) USB Type-C™ female
    2 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-A female
  internal:
    1 x 19 pin USB 3.0 pin header female port on the cable
    1 x 4 pin power connector
• Chipset: VIA VL817
• Data transfer rate up to:
  SuperSpeed 5 Gbps,
  Hi-Speed 480 Mbps,
  Full-Speed 12 Mbps,
  Low-Speed 1.5 Mbps
• Cable data:
  1 x 19 pin USB pin header female cable, length ca. 54 cm (without connectors)
  1 x power cable 4 pin female to 1 x SATA 15 pin plug,
   length ca. 17 cm (without connectors)
• 3.5″ metal frame
• Colour: black
• Hot Swap, Plug & Play

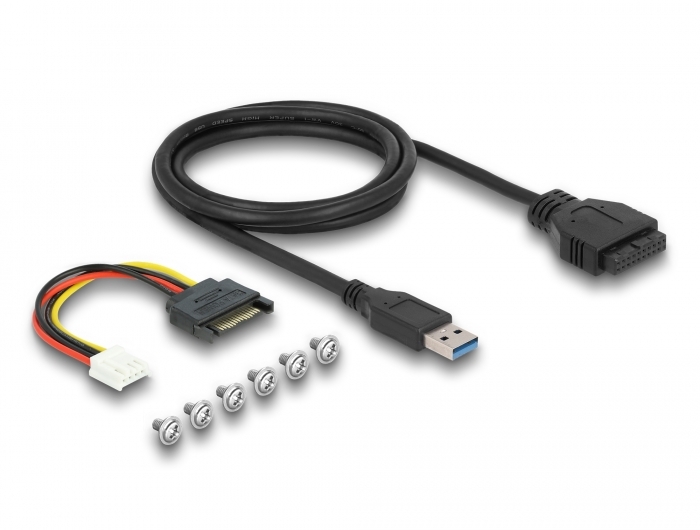

Package content:
• 3.5″ Hub
• USB cable
• Power cable
• Screws
• User manual
Data sheet:
http://www.delock.de/produkt/64155/pdf.html?sprache=en
