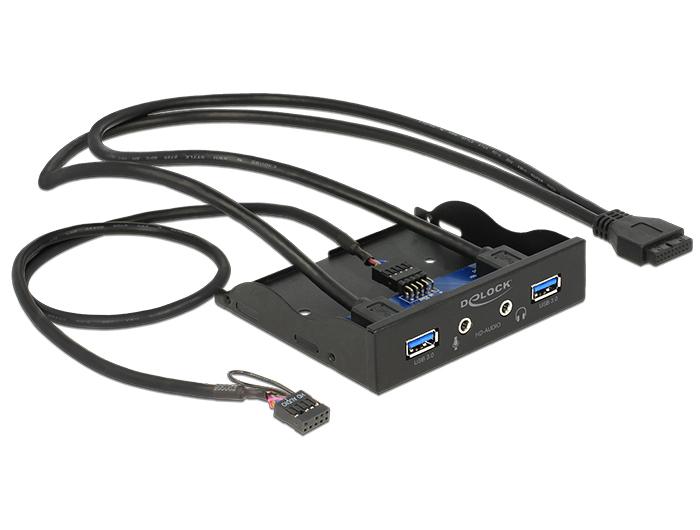

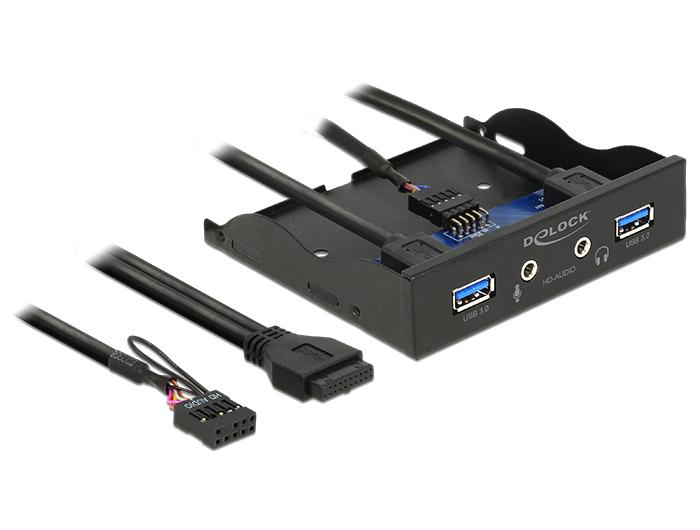

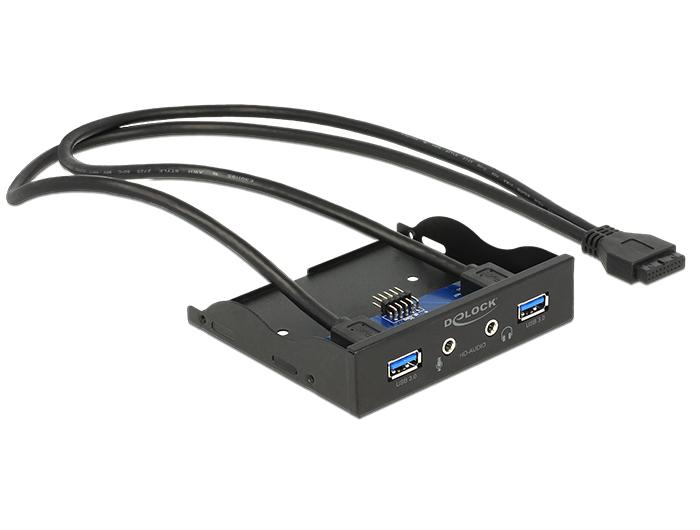

Delock 3.5 Front Panel 2 x USB 3.0 + HD-Audio

Description:
This front panel by Delock can be installed into a free 3.5″ bay of a computer. It has two USB 3.0 and two HD-Audio ports. The connecting cables will be connected internally to the motherboard.

Specification:
• Connector:
external:
2 x USB 3.0 Type-A female
1 x 3.5 mm 3 pin stereo jack female microphone (HD-Audio)
1 x 3.5 mm 3 pin stereo jack female headset (HD-Audio)
internal:
1 x 19 pin USB 3.0 pin header female port on the cable
1 x 9 pin HD-Audio pin header male
• Data transfer rate up to:
SuperSpeed 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Cable data:
1 x 19 pin USB 3.0 pin header female cable ca. 60 cm (incl. connector)
1 x 9 pin HD-Audio pin header female cable ca. 62 cm (incl. connector)
• 3.5″ metal frame
• Colour: black
• Hot Swap, Plug & Play
• OS independent, no driver installation necessary

System requirements:
• PC with one free 3.5″ bay
• Mainboard with a free 19 pin USB 3.0 pin header male
• Mainboard with a free 9 pin HD-Audio pin header male

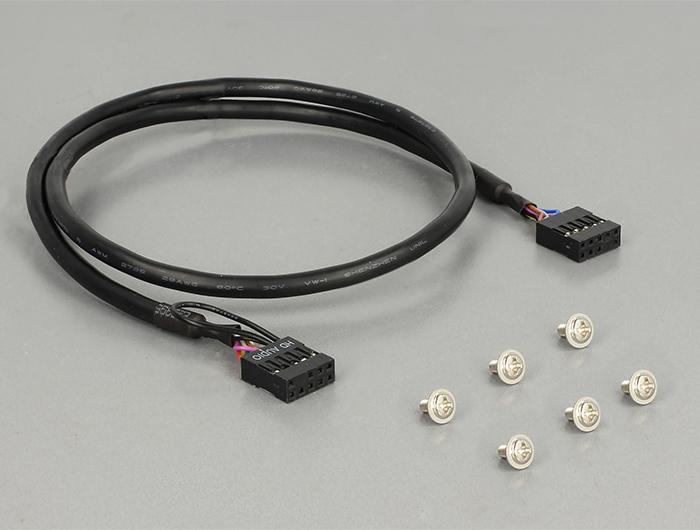

Package content:
• 3.5″ front panel
• HD-Audio pin header female cable
• Screws
• User manual
