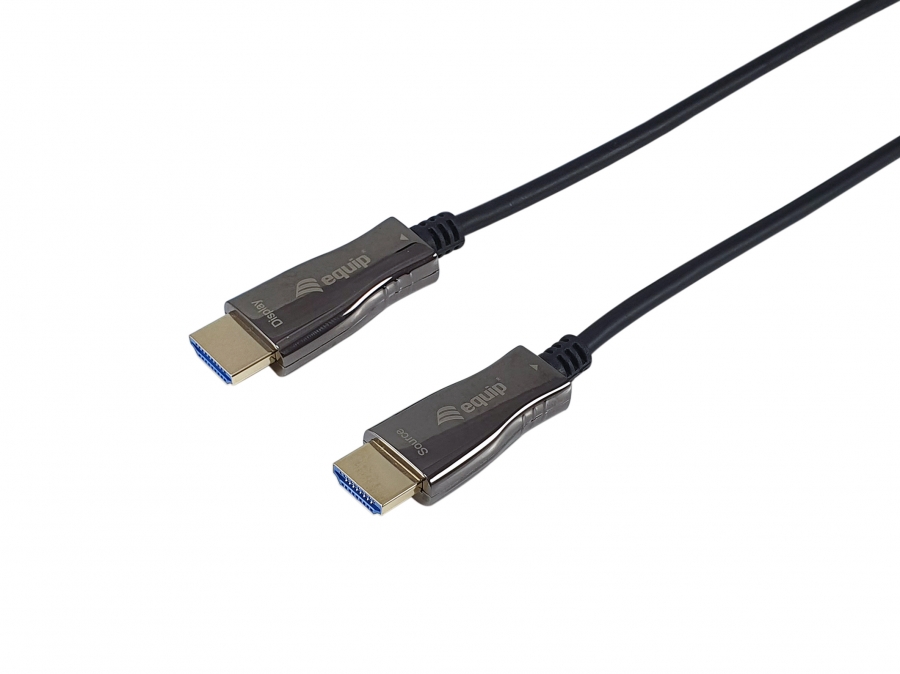

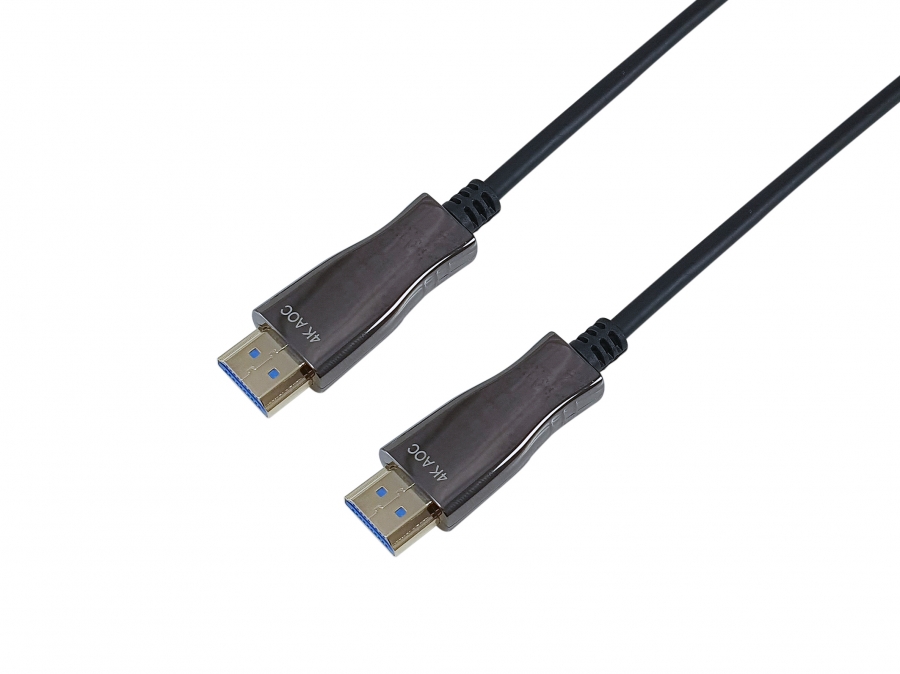

Equip HDMI PHS Ethernet 2.0 A-A St/St100.0m 4K60Hz HDRopt.sw

Kods 119433

Condition: Jauns

Vairāk informācijas

The Equip 11943x series Active Optical Cable (AOC) is a cabling technology that accepts the same electrical inputs as a traditional copper cable but uses optical fibre between the connectors to extend HDMI signals with zero loss or latency. Our hybrid cable design consists of optical fibres and copper wires. The high-speed TMDS signals are transmitted through the optical multimode fibres, while the low frequency control signals are transmitted through the copper wires. The range of active optical leads give you up to 100m of distance without a drop of signal quality or the requirement of a separate power supply

Cable length	100 m
Connector 1	HDMI Type A (Standard)
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Male
Product colour	Black
Connector contacts plating	Gold
Quantity per pack	1 pc(s)
Connector 1 form factor	Straight
Connector 2 form factor	Straight
HDMI version	2.0
3D	Jā
Supported graphics resolutions	1920 x 1200 (WUXGA), 2560 x 1440, 3840 x 2160
HDMI Ethernet channel	Jā
HDCP	Jā
HDCP version	2.2
Bandwidth	18000 MB/s
High Dynamic Range (HDR) supported	Jā
Maximum refresh rate	240 Hz
Cable material	Copper
Cable jacket material	Polyvinyl chloride (PVC)
Weight	2.95 kg
Package width	270 mm
Package depth	90 mm
Package height	270 mm

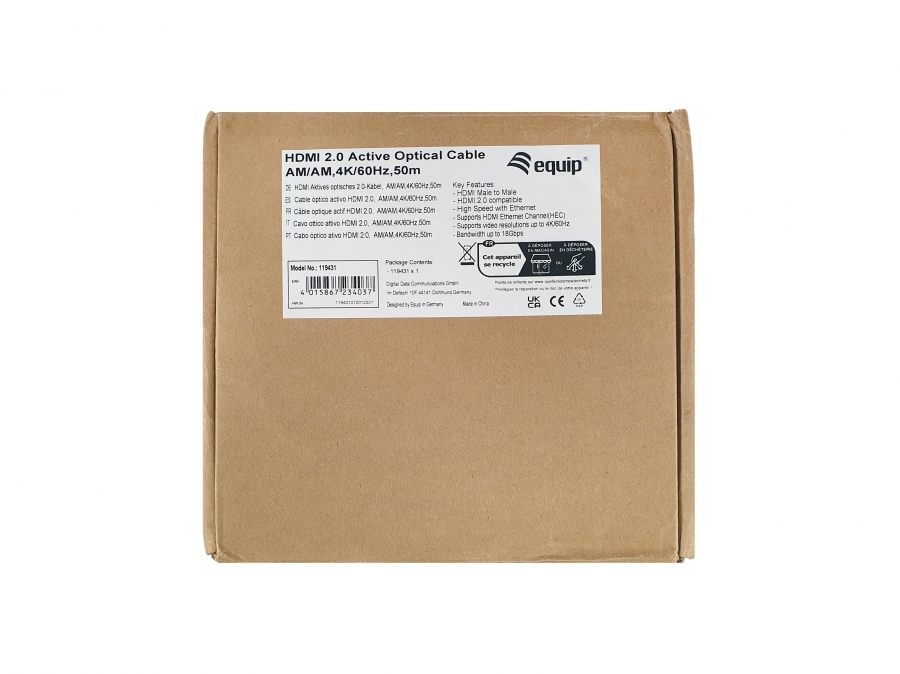

Package type	Box
Country of origin	China
Compliance certificates	CE, RoHS
Harmonized System (HS) code	8544421900
Master (outer) case width	370 mm
Master (outer) case length	330 mm
Master (outer) case height	480 mm
Master (outer) case gross weight	15.8 kg
Products per master (outer) case	5 pc(s)
