ROLINE HDMI 8K Audio Extractor, LPCM 7.1

ROLINE

14.01.3444

Jauns

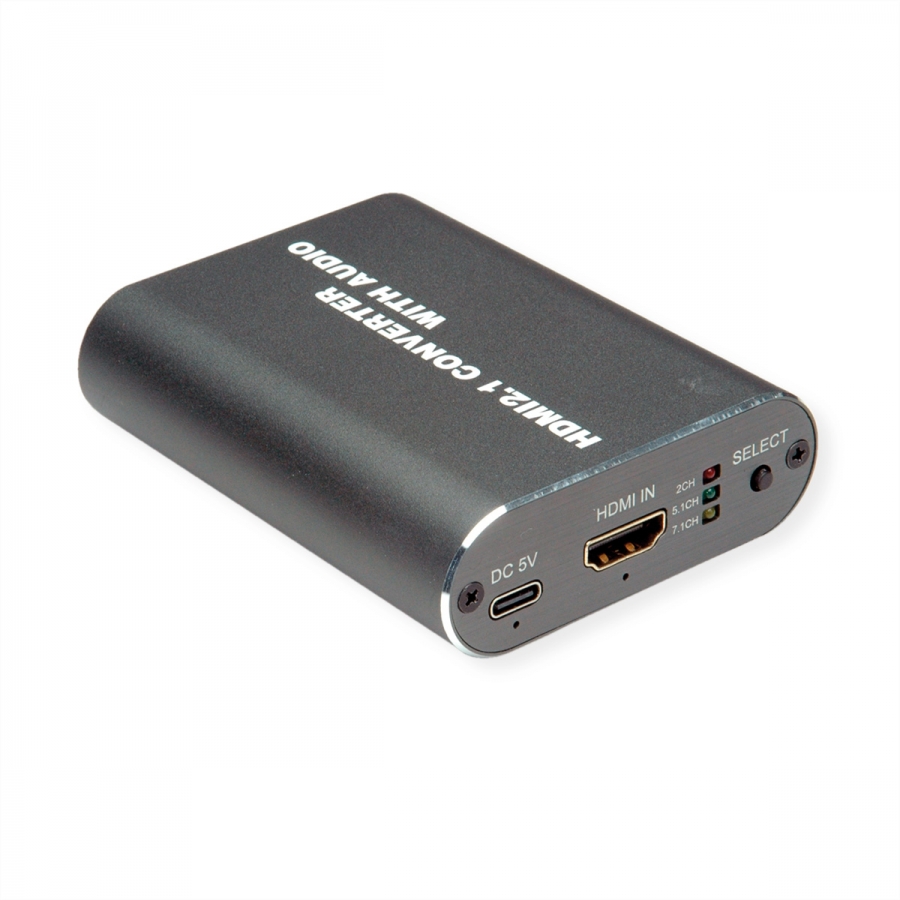

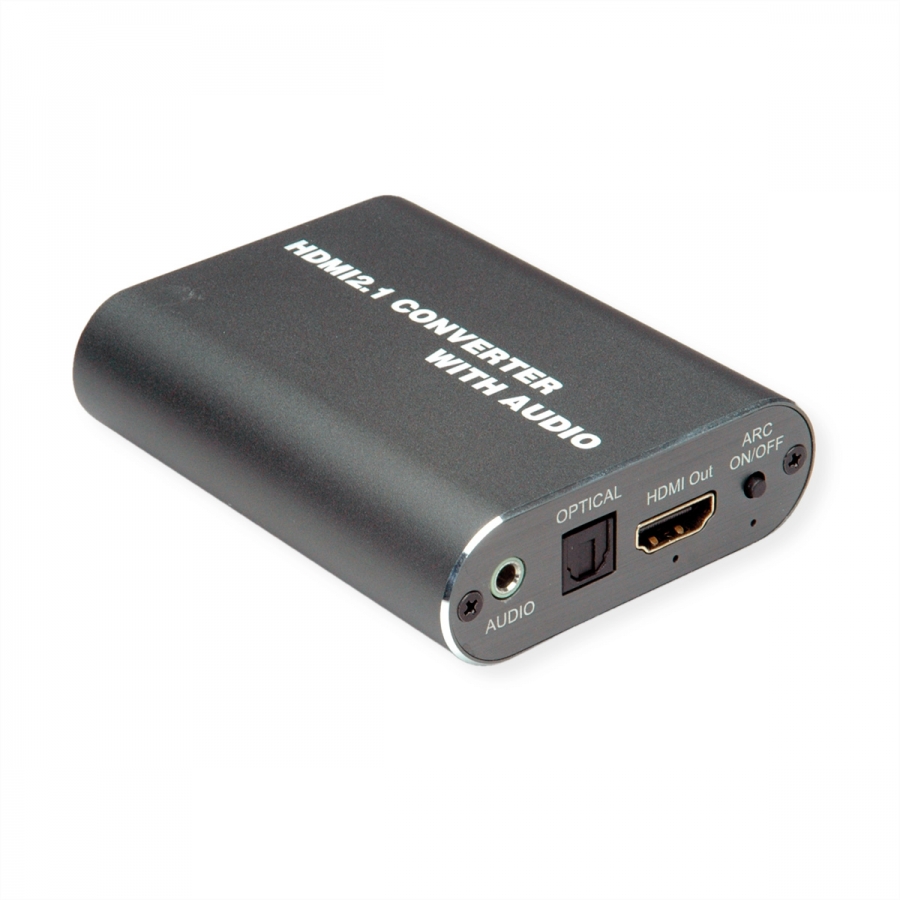

This ROLINE HDMI 8K@60Hz Audio Extractor allows you to uncouple the audio signal from the HDMI signal. Not all monitors have good speakers. With this extractor you can redirect the audio signal via S/PDIF (optical) or analog via the 3.5mm port to a speaker system and the pure image signal goes to the screen.

This ROLINE HDMI 8K@60Hz Audio Extractor allows you to uncouple the audio signal from the HDMI signal.

  • Maximum resolution: 8K@60Hz
  • Maximum bandwidth: 40Gbps
  • Supports HDMI 2.1
  • Supports HDCP 2.3
  • Audio output supports 4 EDID selection modes (2CH/5.1CH/7.1CH/TV)
  • HDMl frequency support: LPCM up to 7.1 192 KHz 24Bit
  • S/PDIF TOSLINK output: LPCM up to 5.1 96KHz 24 Bit
  • Stereo RCA output format: PCM 2.0 CH

  • Contents: extractor, USB cable (A-C), user manual


HDMI
