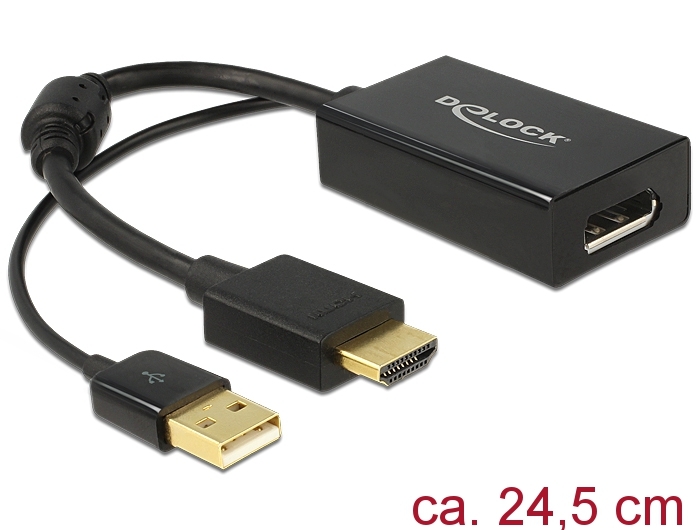

Delock Adapter HDMI-A male > Displayport 1.2 female black

DELOCK

62667

Jauns

This adapter by Delock enables you to connect e.g. a Displayport monitor through a free HDMI interface.
System requirements:
• A free HDMI-A female port
• A free USB-A female port
• Monitor with a free Displayport interface
• One Displayport cable
Specification:

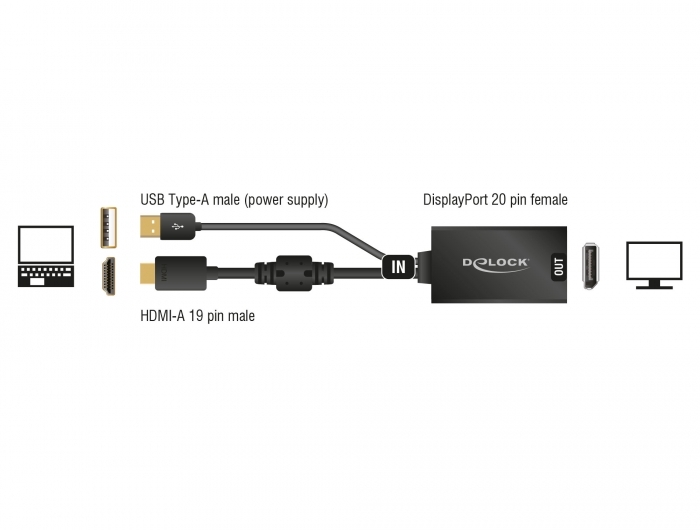

• Connector:
  Input:
    1 x High Speed HDMI-A 19 pin male
    1 x USB type A male (power supply)
  Output:
    1 x Displayport 20 pin female
• Chipset: STDP2600
• Displayport 1.2 and High Speed HDMI specification
• High Speed HDMI receiver - link rate up to 2.97 Gb/s per data pair
• Supports 3D displays
• Supports a resolution up to 4Kx2K @ 30 Hz; 1920 x 1080 @ 120 Hz (depending on
  the system and the connected hardware)
• Supports Audio 7.1 channel up to 192 kHz sample rate
• Supports HDCP 1.3
• Gold-plated connector
• Colour depth:
  RGB / YCC (4:4:4) - 16 bit colour
  YCC (4:2:2 / 4:2:0) - 16 bit colour
• Power consumption:
  operation: ca. 500 mW
  standby: ca. 25 mW
• Colour: black
• Cable length: ca. 24.5 cm (incl. connector)
• OS independent, no driver installation necessary
Package content:
• Adapter HDMI to Displayport
• User manual
Data sheet:
http://www.delock.de/produkt/62667/pdf.html?sprache=en
