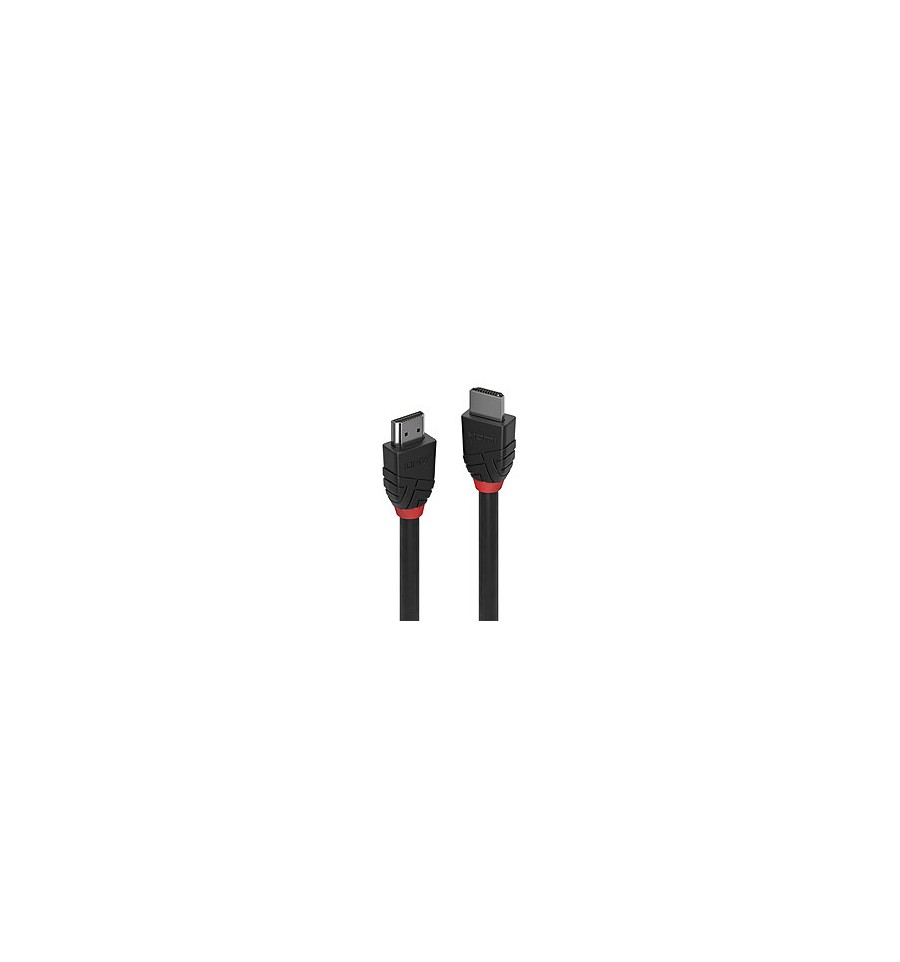

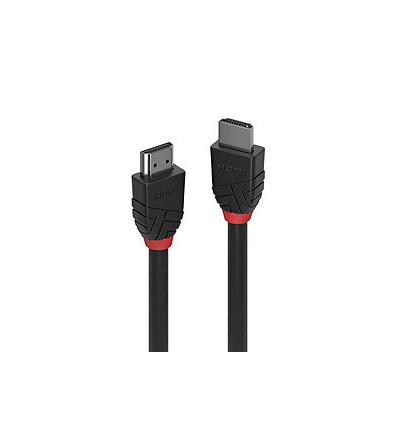

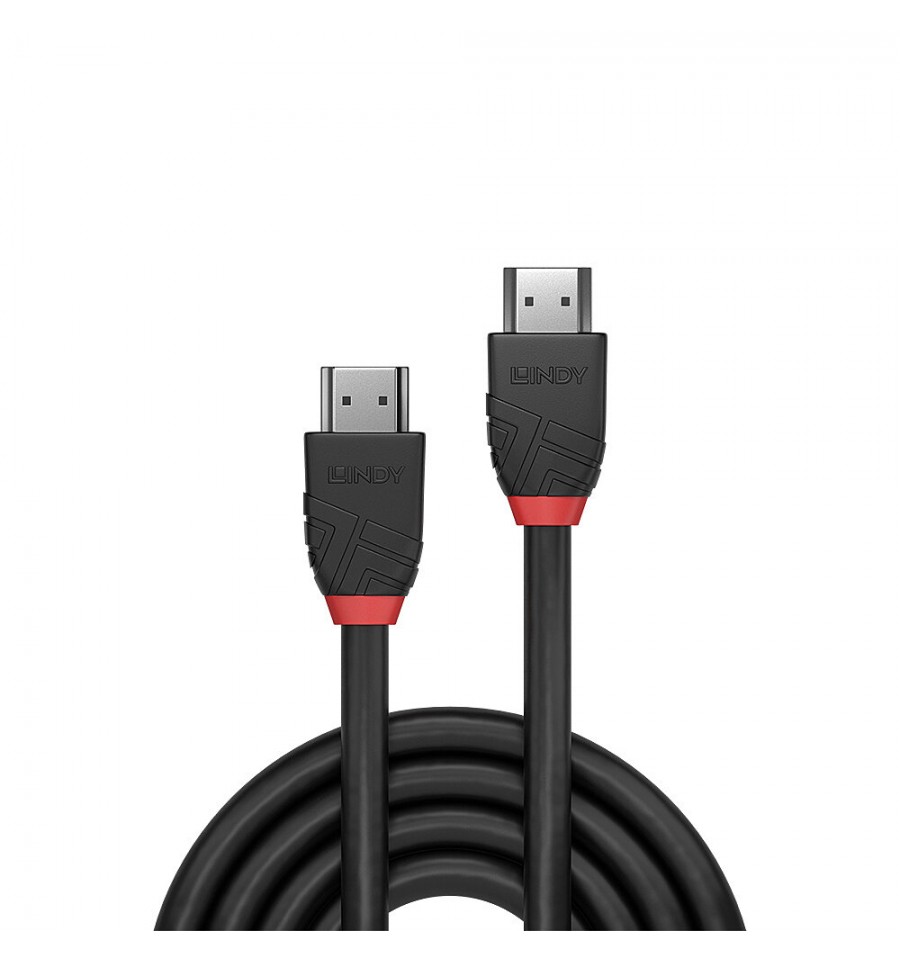

Connectors - Connector A: HDMI Type A Male
- Connector B: HDMI Type A Male
- Housing Material: PVC
- Connector Plating: Nickel
- Pin Construction: Phosphor bronze
- Pin Plating: Gold Flash
- Dimensions (approx.) WxDxH: 19.2x34.1x10.6mm (0.76x1.34x0.42in)
Cable Construction - Length: 10m (32.80ft)
- Standard: Standard HDMI
- Colour: Black
- Type: Round
- Jacket Diameter: 7mm (0.27in)
- Jacket Material: PVC
- Conductor Material: Copper Coated Steel
- Conductor Gauge: 28AWG
- Shielding: Aluminum Foil
Specifications - Supported Bandwidth: 10.2Gbps
- Maximum Resolution: 4096x2160@30Hz 4:4:4 8bit
- Nominal Attenuation: 300kHz-825MHz <5dB, 825MHz-2.475GHz <5dB, 2.475GHz-4.125GHz <12dB, 4.125GHz-5.1GHz <20dB
- Minimum Bend Radius: 70mm (2.75in)
- Operating Temperature: -10°C - 80°C (14°F - 176°F)
- Storage Temperature: -10°C - 80°C (14°F - 176°F)
- ATC Approved: No
Miscellaneous - Packaging Type: Polybag
- Warranty (Years): 10
- Product Compliance: RoHS, Reach, UL
Purchasing Information - No.: 36467
- EAN: 4002888364683
This product is also available in other lengths - 36470 - 0.5m (1.64ft)
- 36471 - 1m (3.28ft)
- 36472 - 2m (6.56ft)
- 36473 - 3m (9.84ft)
- 36474 - 5m (16.44ft)
- 36467 - 7.5m (24.60ft)
- 36468 - 10m (32.80ft)
- 36469 - 15m (49.21ft)
|
