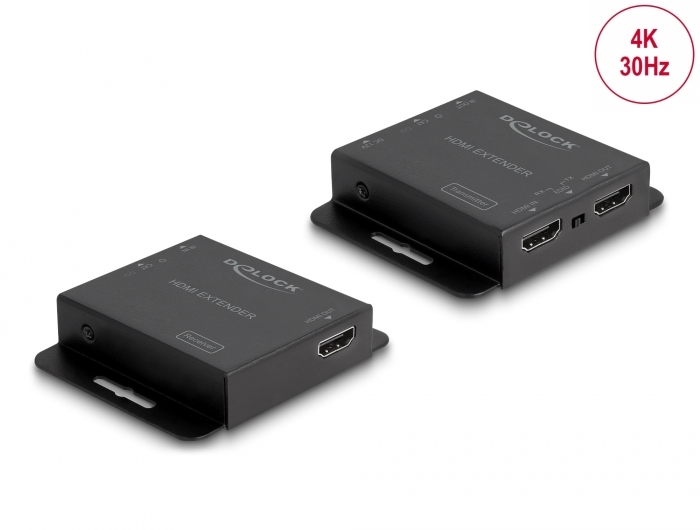

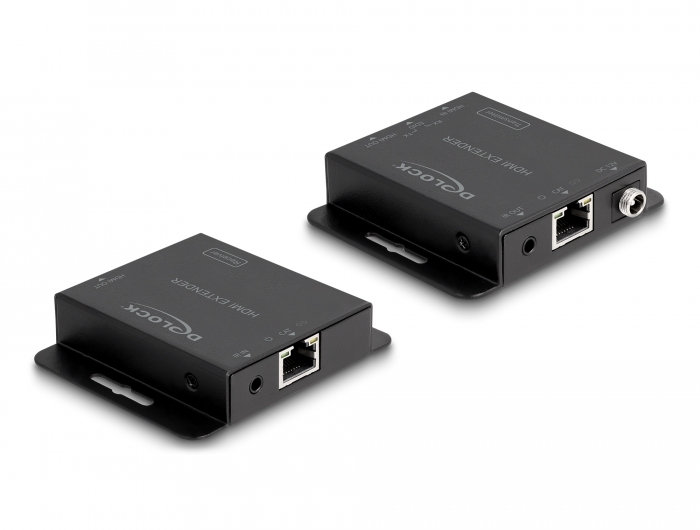

Delock HDMI Extender Set over Cat.6 cable 4K 30 Hz

Kods 65832

Condition: Jauns

Vairāk informācijas

This HDMI extender set by Delock can transmit high-resolution video / audio signals and an IR control signal over a single network cable. At 4K 30 Hz resolution, distances of up to 40 m are possible, and at 1080p resolution, 70 m can be achieved. The set has wide applications in conference rooms, for tele-education or on large screens.

HDMI loop output
The transmitter has an HDMI loop output, so the signal can be cascaded to the next extender or to a monitor.

Power over Cable (PoC)
The set supports Power over Cable (PoC), so only the transmitter requires a power supply. The receiver is powered via the network cable and can therefore be used more flexible.

Screwable DC connection
The power supply with screwable connector ensures a secure and reliable connection - perfect for professional installations to avoid accidental disconnection.

System requirements:
• HDMI cable
• One Cat.5e or Cat.6 network cable

Specification:

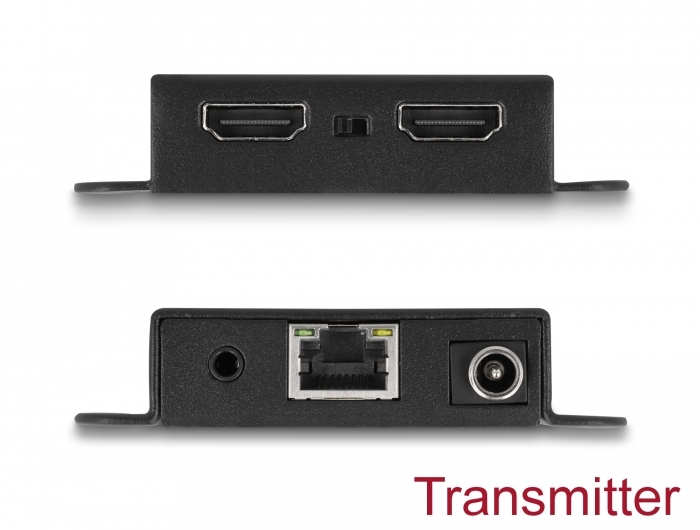

• Connectors Transmitter:
  Input:
  1 x HDMI-A female
  1 x DC 12 V power connector screwable
  Output:
  1 x RJ45 jack
  1 x HDMI-A female
  1 x 3.5 mm 3 pin stereo jack female (IR)

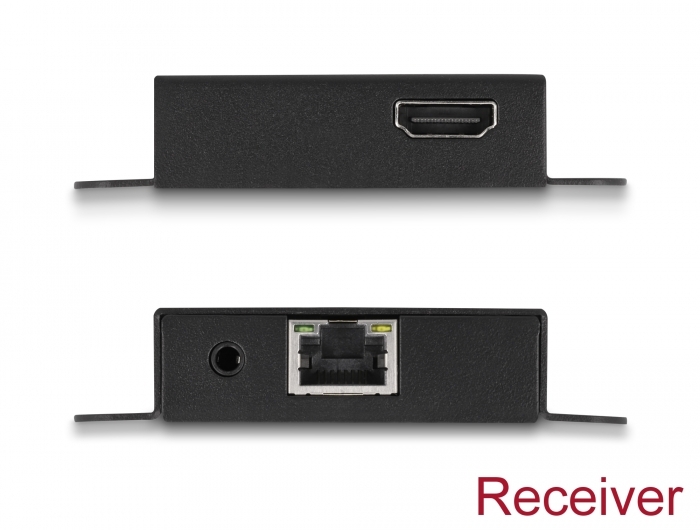

• Connectors Receiver:
  Input:
  1 x RJ45 jack
  1 x 3.5 mm 3 pin stereo jack female (IR)
  Output:
  1 x HDMI-A female
• Transmission of audio and video signals
• Transmission of IR signals 30 - 60 kHz
• Resolution up to 3840 x 2160 @ 30 Hz (depending on the system and the connected hardware)
• Supports EDID und HDCP
• Supports PoC (Power Over Cable)
• Power consumption: max. 3.0 W
• Metal housing
• Wall-mount option
• Colour: black
• Dimensions (LxWxH): ca. 80 x 69 x 17 mm

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A
• Output: 12.0 V / 1.0 A / 12.0 W
• Ground outside, plus inside
• Dimensions:
  inside: ø ca. 2.1 mm
  outside: ø ca. 5.5 mm
  length: ca. 9 mm

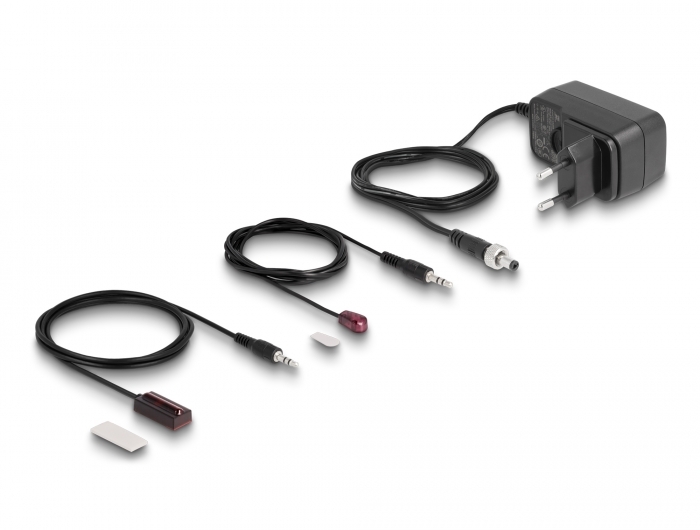

Package content:
• HDMI transmitter
• HDMI receiver
• Infrared transmitter
• Infrared receiver
• Power supply
• User manual
