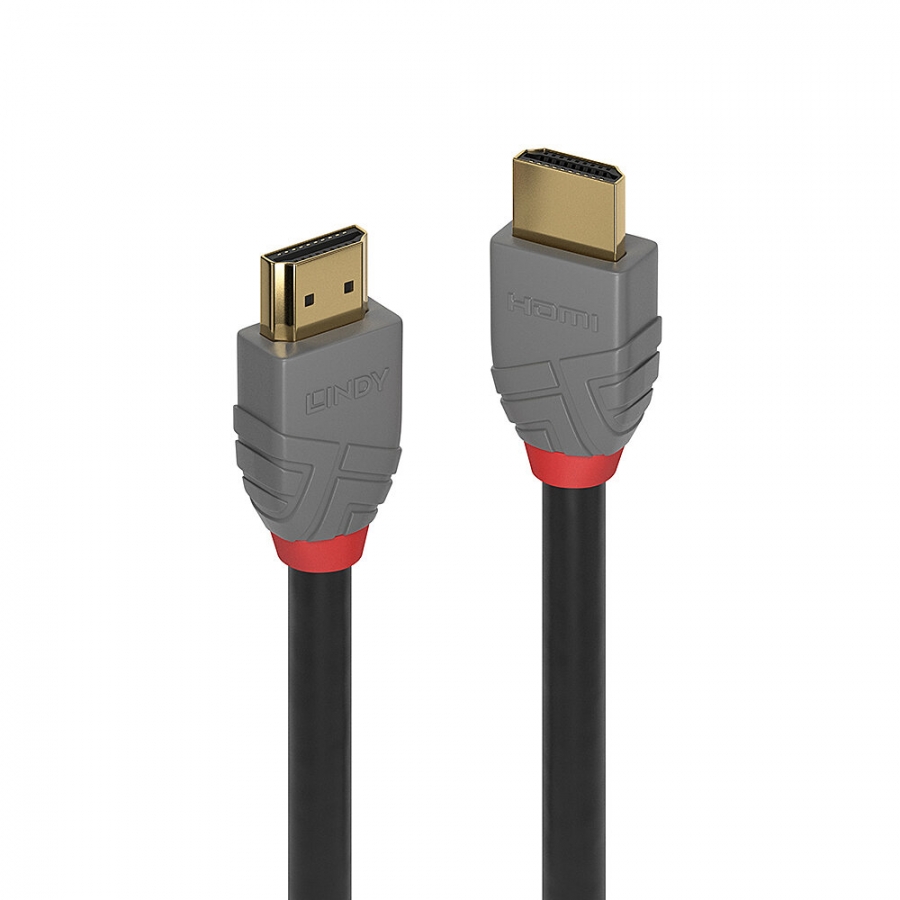

Lindy 0.5m Ultra High Speed HDMI Cable, Anthra Line

Connectors

• Connector A: HDMI Type A Male
• Connector B: HDMI Type A Male
• Housing Material: PVC
• Connector Plating: 24K Gold 15µm
• Pin Construction: Phosphor Copper
• Pin Plating: 24K Gold 3µm
• Dimensions (approx.) WxDxH: 20x34.2x10.9mm (0.79x1.35x0.43in)

Cable Construction

• Length: 0.5m (1.64ft)
• Standard: Certified Ultra High Speed HDMI
• Colour: Black
• Type: Round
• Jacket Diameter: 7.3mm (0.29in)
• Jacket Material: PVC
• Conductor Material: Copper
• Conductor Gauge: 30AWG
• Shielding: Aluminium Magnesium Alloy Braid, 85%

Specifications

• Supported Bandwidth: 48Gbps
• Maximum Resolution: 10240x4320@120Hz 4:2:0 12bit
• Nominal Attenuation:

≤ −5 dB from 0 GHz to 1 GHz

−6.5 dB @ 2 GHz

−9.2dB @ 3 GHz

−16.5 dB @ 6 GHz

−29 dB @ 12 GHz

• Minimum Bend Radius: 80mm (3.15in)
• Operating Temperature: 0°C - 50°C (32°F - 122°F)
• Storage Temperature: 0°C - 50°C (32°F - 122°F)
• ATC Approved: Yes

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS, REACH, UL, ATC

Purchasing Information

• No.: 36951
• EAN: 4002888369510

This product is also available in other lengths:

• 36951 - 0.5m (1.64ft)
• 36952 - 1m (3.28ft)
• 36953 - 2m (6.56ft)
• 36954 - 3m (9.84ft)
