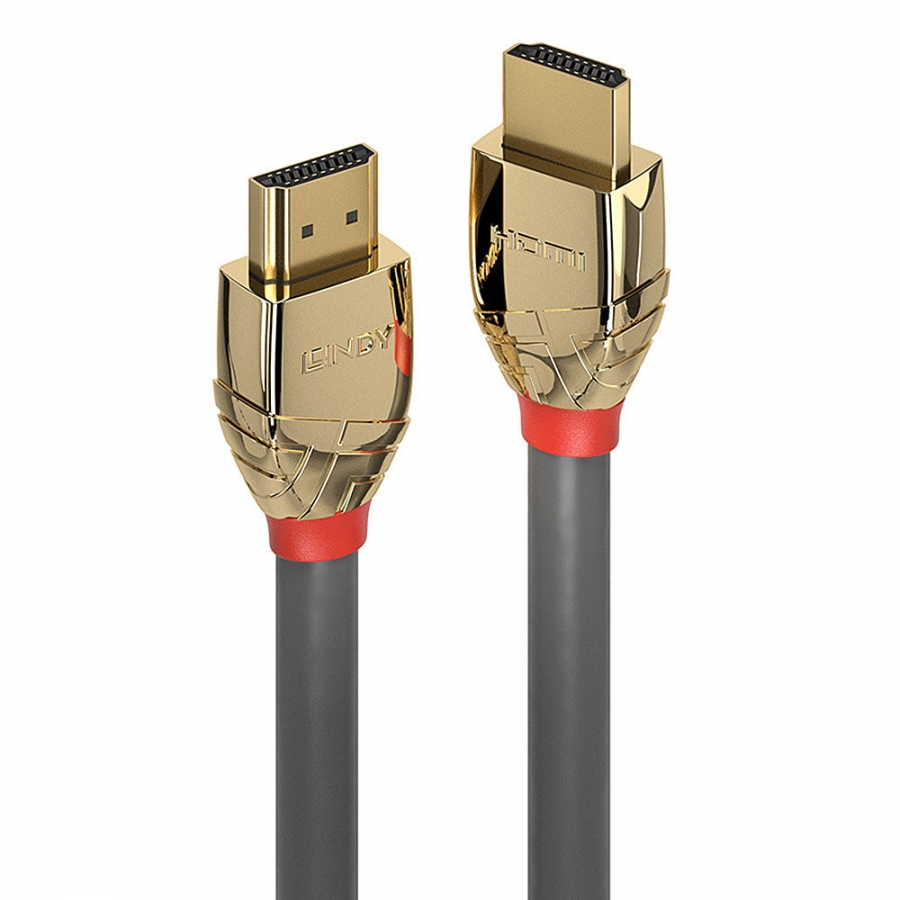

Connectors: |
- Connector A: HDMI Type A Male
|
- Connector B: HDMI Type A Male
|
- Housing Material: 24K Gold Plated Zinc Alloy
|
- Connector Plating: 24K Gold 3µm
|
- Pin Construction: Phosphor Bronze
|
- Pin Plating: 24K Gold 15µm
|
- Dimensions (approx.) WxDxH: 20x34.1x11.6mm (0.79x1.34x0.46in)
|
Cable construction: |
|
- Standard: Certified Ultra High Speed HDMI
|
|
|
- Jacket Diameter: 8mm (0.32in)
|
|
- Conductor Material: OFC Copper
|
|
- Shielding: Tinned Copper Braid, 85%
|
|
Specifications: |
- Supported Bandwidth: 48Gbps
|
- Maximum Resolution: 10240x4320@120Hz 4:2:0 12bit
|
- Nominal Attenuation: ≤ −5 dB from 0 GHz to 1 GHz
−6.5 dB @ 2 GHz −9.2dB @ 3 GHz −16.5 dB @ 6 GHz −29 dB @ 12 GHz
|
- Minimum Bend Radius: 80mm (3.15in)
|
- Operating Temperature: 0°C - 50°C (32°F - 122°F)
|
- Storage Temperature: 0°C - 50°C (32°F - 122°F)
|
|
|
Miscellaneous: |
|
|
- Certificated: RoHS, REACH, UL, ATC
|
Purchasing information: |
|
|
This product is also available in other lenghts: 37601 - 1m (3.28ft) 37602 - 2m (6.56ft) 37603 - 3m (9.84ft) 37604 - 5m (16.44ft) |
