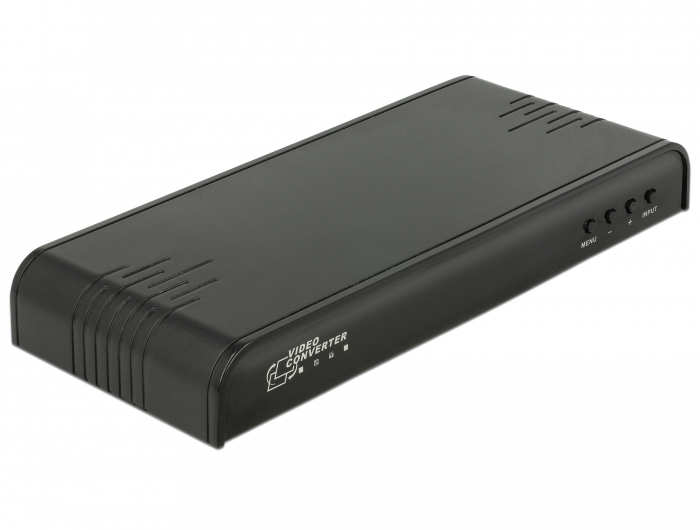

Delock Converter CVBS / YPbPr / VGA to HDMI with Scaler

Kods 63963

Condition: Jauns

Vairāk informācijas

The Delock A/V converter converts an analogue video and audio signal to a digital HDMI signal. Thereby e.g. a VCR or game console can be connected to an HDMI monitor or Full HD TV. The inputs can be scaled via the integrated video processor to an HDMI output signal of 720p or 1080p with 50 or 60 Hz.

System requirements:
• Monitor or TV with HDMI connector
• Connection cables

Specification:

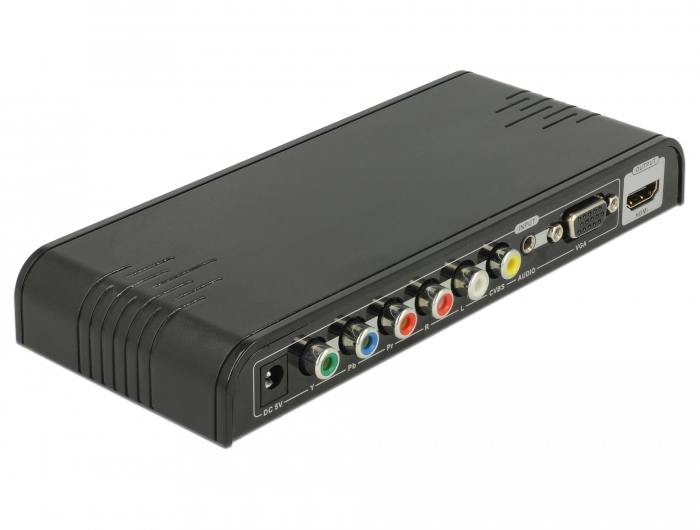

• Connectors:
  Input:
  1 x RCA female (CVBS)
  3 x RCA female (YPbPr)
  2 x RCA female (audio)
  1 x VGA 15 pin female with nuts
  1 x 3.5 mm 3 pin stereo jack female (audio)
  1 x DC 5 V power connector
  Output:
  1 x HDMI-A 19 pin female
• Input switchable between CVBS / YPbPr / VGA
• Output switchable between 720p / 1080p, PAL / NTSC
• Resolution (CVBS input) PAL / NTSC
• Resolution (YPbPr input) 480i / 480p / 576i / 576p / 720p / 1080i / 1080p
• Resolution (VGA input) up to 1920 x 1080 @ 60 Hz
• Resolution (HDMI output) 1280 x 720 or 1920 x 1080 @ 50 or 60 Hz
• Supports stereo audio
• Colour: black
• Dimensions (LxWxH): ca. 185 x 85 x 25 mm

Package content:
• Multi-AV to HDMI Converter

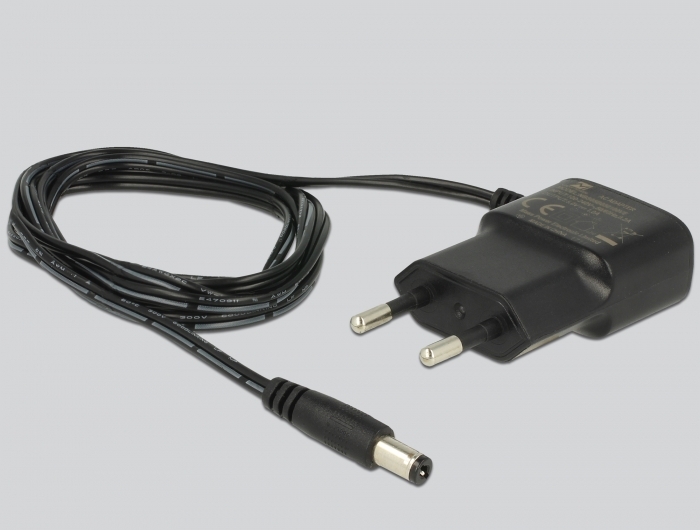

• Power supply
• User manual
