Delock Multi-AV to HDMI Converter 4K 60 Hz

DELOCK

87732

Jauns

This multi-functional converter by Delock makes it possible to convert different sources into one HDMI signal. The signal inputs are USB-C™ (DP Alt Mode), VGA with 3.5 mm audio, Mini DisplayPort and HDMI. The converter box is a practical solution for connecting various audio / video devices to a projector or TV with HDMI input.
Specification:

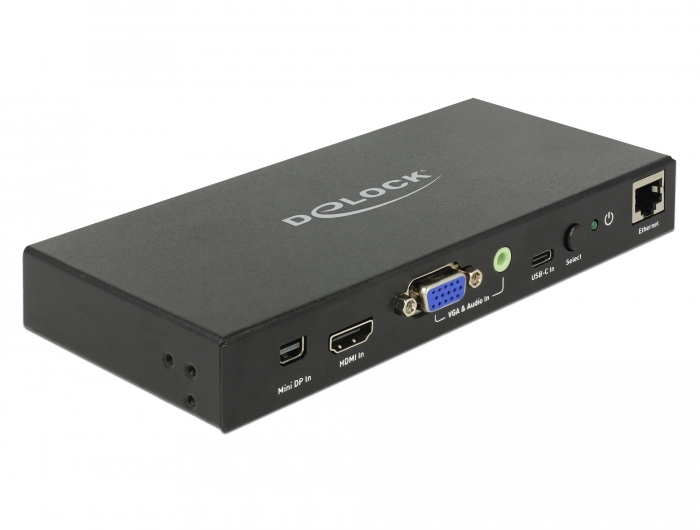

• Connectors:
  Input:
  1 x mini DisplayPort 20 pin female
  1 x HDMI-A 19 pin female
  1 x USB Type-C™ (DP Alt Mode) female
  1 x VGA 15 pin female with nuts
  1 x 3.5 mm 3 pin stereo jack female
  1 x DC 5 V power connector
  Output:
  1 x HDMI-A 19 pin female
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected hardware)
• Resolution (VGA input) up to 1920 x 1080 @ 60 Hz
• Transmission of audio and video signals
• Switching automatic or via button
• Robust metal housing
• Dimensions (LxWxH): ca. 179 x 80 x 25 mm

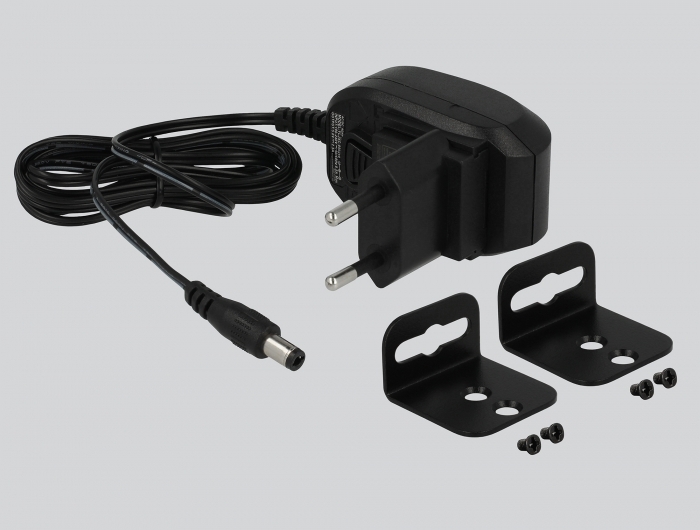

Package content:
• Converter
• Mounting bracket
• Power supply
• User manual
Data sheet:
http://www.delock.de/produkt/87732/pdf.html?sprache=en
