Delock 5.25″ Mobile Rack for 4 x 2.5″ SATA / SAS HDD / SSD 12 Gb/s

DELOCK

47233

Jauns

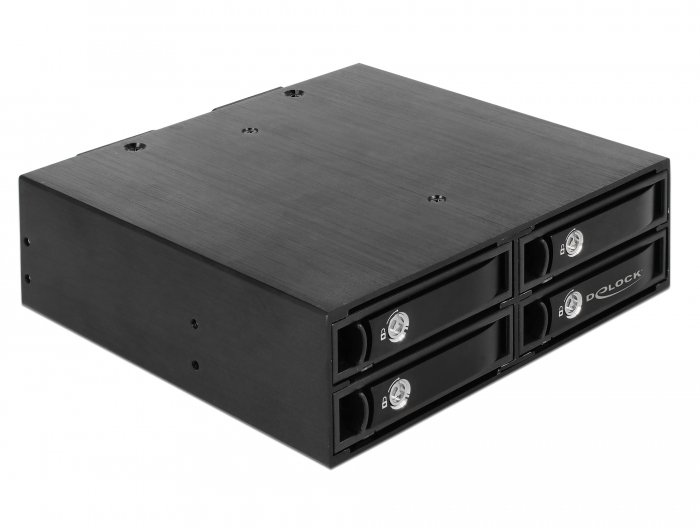

This mobile rack by Delock can be installed into a free 5.25″ bay of a desktop PC and enables the operation of up to four 2.5″ SATA or SAS hard drives.

Quick change of hard drives
Due to the special mechanism, the hard disks can be exchanged quickly and easily. For example, data backups can be taken and stored in a safe place.

Protection against theft

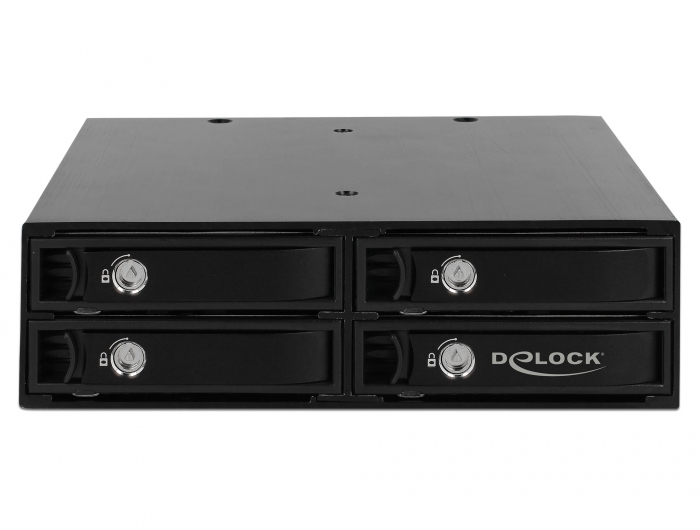

Each of the four removable frames is provided with a separate lock. Thus, the hard disks and data can be protected against theft and misuse.

Operation with SATA controller
This mobile rack by Delock can also be used on motherboards with SATA controllers.
With the Delock item 83320, the Mini SAS HD port on the mobile rack can be connected to four free SATA ports of the motherboard and allows the use of up to four SATA HDDs.
System requirements:
• PC with one free 5.25″ bay
• PC with one SAS or SATA controller
• Power supply with SATA 15 pin receptacle
• 1 Mini SAS HD cable
Specification:
• Connectors:
  internal:
    4 x SFF-8680 female

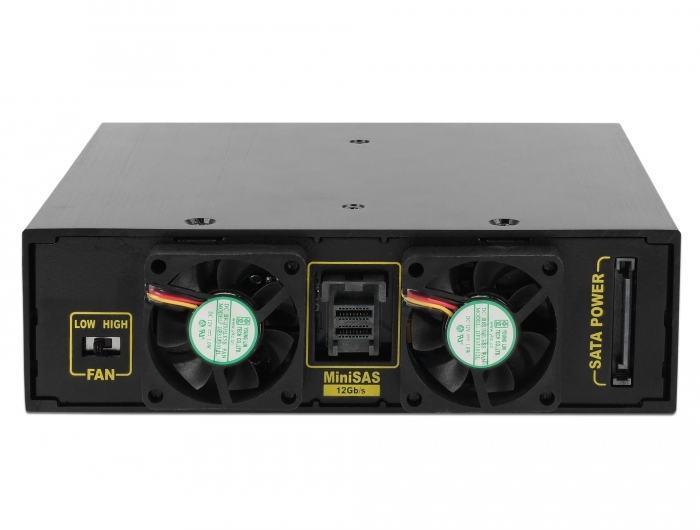

  external:
    1 x Mini SAS HD SFF-8643 female
    1 x SATA 15 pin power connector
• Suitable for 2.5″ SATA / SAS HDD / SSD:
  HDD height up to 15 mm
  supports 5 V HDD / SSD
• Data transfer rate:
  SATA up to 6 Gb/s
  SAS up to 12 Gb/s
• Mobile rack with key lock for each bay
• 4 x LED indicator for power and access
• Robust aluminum housing

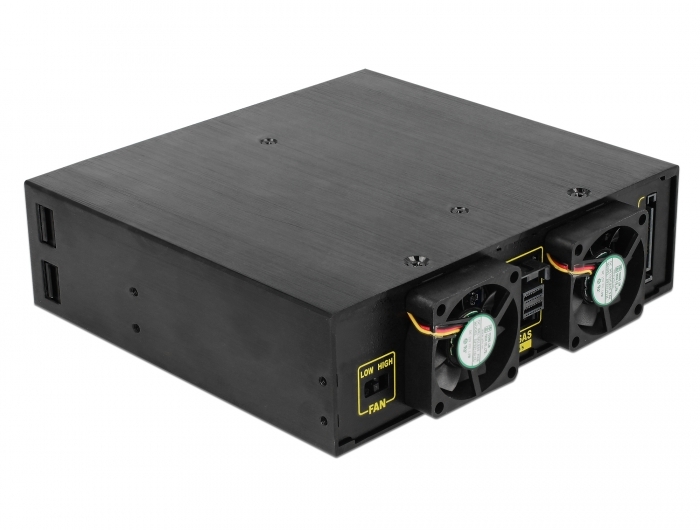

• 2 x fan 35 x 35 mm at the back side
• Fan speed control in two steps
• Hot Swap
• OS independent, no driver installation necessary

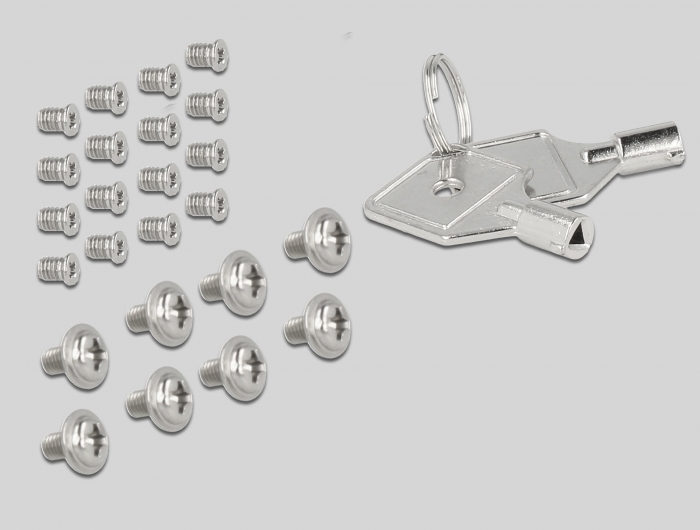

Package content:
• Mobile Rack
• Screws
• User manual
Data sheet:
http://www.delock.de/produkt/47233/pdf.html?sprache=en
