Delock 3.5″ Mobile Rack for 1 x 2.5″ SATA HDD
Previous Next

Delock 3.5″ Mobile Rack for 1 x 2.5″ SATA HDD

DELOCK

47198

Jauns

Salīdzināt

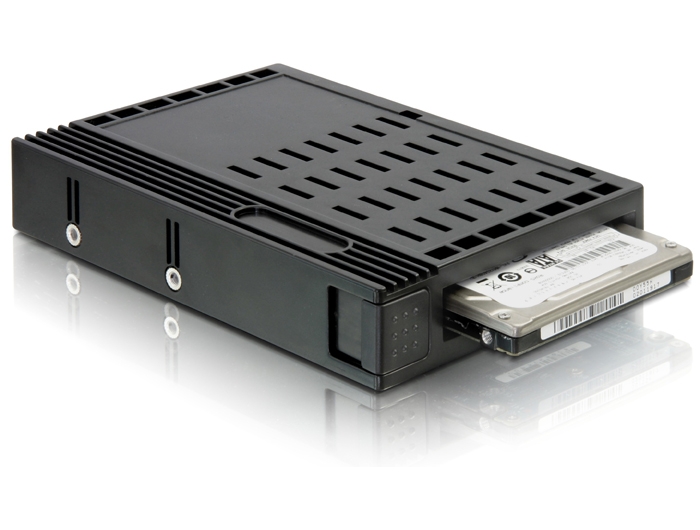

This Delock Mobile Rack is designed for external or internal connection of a 2.5″ SATA HDD. Insert the HDD directly into the frame and connect it either externally to a free USB port or with the help of an optional cable to a Power Over eSATA port, or internally to SATA. The dimension of the frame complies to a standard 3.5″ HDD. Thus you can install the frame into a 3.5″ slot as well as into a 5.25″ mobile rack.
System requirements:
• For external using:
  1. PC or notebook with a free USB port
  2. PC or notebook with a free Power Over eSATA port
  (optional eSATAp cable item 84397 / 84396 / 84432)
• For internal using:
  1. PC with a free 3.5″ bay
  2. PC with a free SATA port
  3. SATA connecting cable
Specification:
• 3.5″ HDD dimension
• Connector:
  inside:
    1 x SATA 22 pin male (NSS connector)
  outside:
    1 x SATA 22 pin female
    1 x USB 2.0 Type Mini-B female
• Suitable for 2.5″ SATA HDD / SSD:
  HDD height 9.5 mm
  SATA HDD / SSD up to 6 Gb/s
  supports 5 V HDD / SSD
• Data transfer rate up to 6 Gb/s
• Possible applications:
  1. internally in a 3.5″ bay
  2. inside a 5.25″ mobile rack
  3. externally over USB
  4. externally over eSATAp (cable optional)
• Hot Swap
• With special SATA NSS connector inside to protect the SATA connector of the HDD from
  wear at each change
• OS independent, no driver installation necessary
Package content:
• Mobile Rack

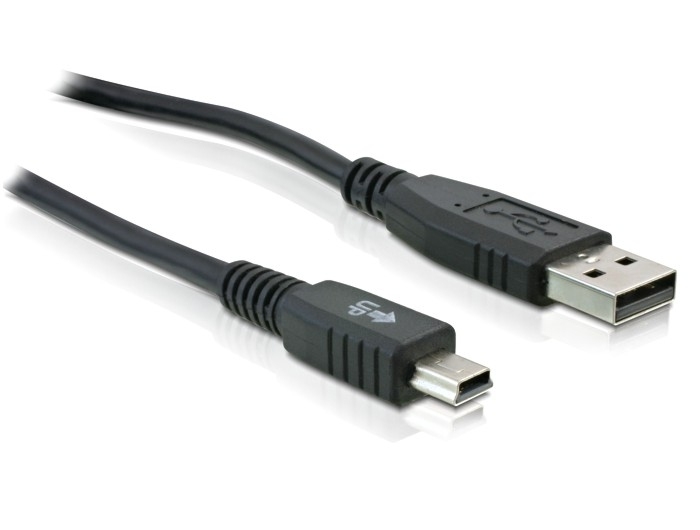

• USB 2.0 cable
• User manual
Data sheet:
http://www.delock.de/produkt/47198/pdf.html?sprache=en
