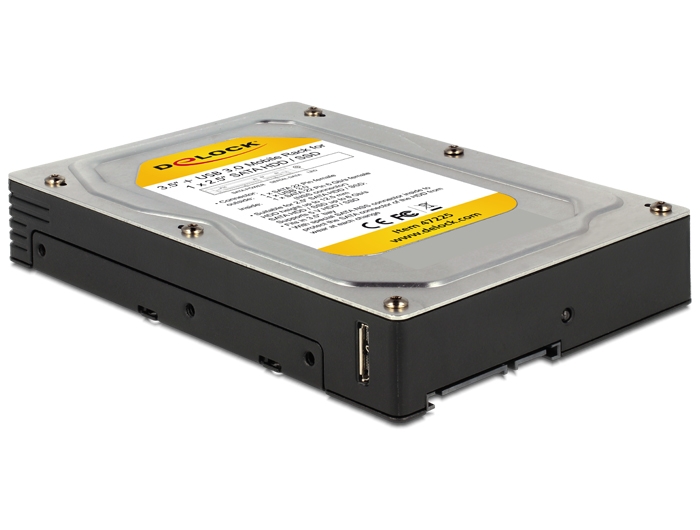

Delock 3.5″ Mobile Rack for 1 x 2.5″ SATA HDD / SSD

DELOCK

47225

Jauns

Salīdzināt

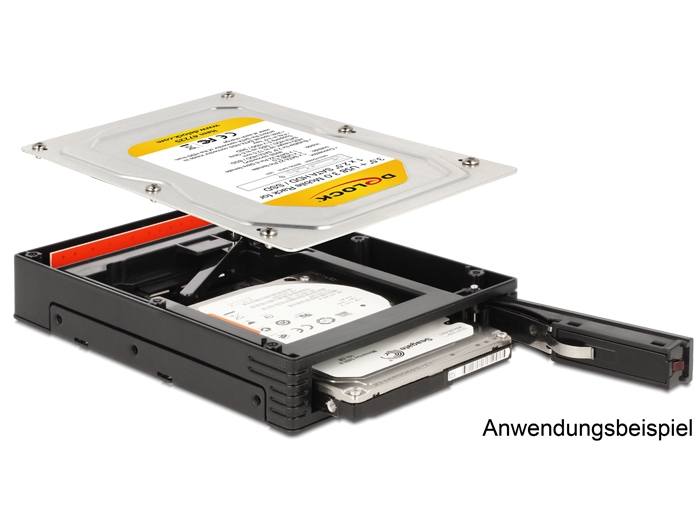

This Delock Mobile Rack is designed for external or internal connection of a 2.5″ SATA HDD. Insert the HDD directly into the frame and connect it either externally to a free USB port or with the help of an optional cable to a Power Over eSATA port, or internally to SATA. The dimension of the frame complies to a standard 3.5″ HDD. Thus you can install the frame into a 3.5″ slot as well as into a 5.25″ mobile rack.
System requirements:
• For external using:
    1. PC or notebook with a free USB port
    2. PC or notebook with a free Power Over eSATA port
        (optional eSATAp cable item 84397 / 84396 / 84432)
• For internal using:
    1. PC with a free 3.5″ bay
    2. PC with a free SATA port
    3. SATA connecting cable
Specification:
• Connector:
  outside:
    1 x SATA 22 pin female

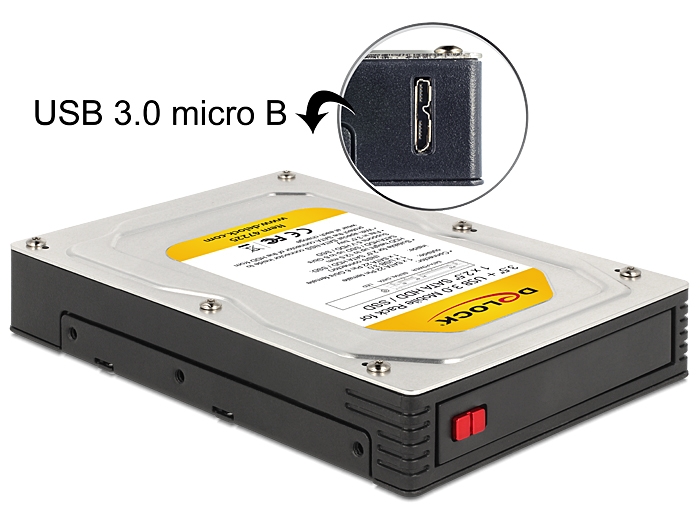

    1 x Micro USB 3.0 type B female
  inside:
    1 x 22 pin SATA 6 Gb/s female (NSS connector)
• Suitable for 2.5″ SATA HDD / SSD:
    HDD height up to 12.5 mm
    SATA HDD / SSD up to 6 Gb/s
    support 5 V HDD / SSD
• Data transfer rate up to 6 Gb/s

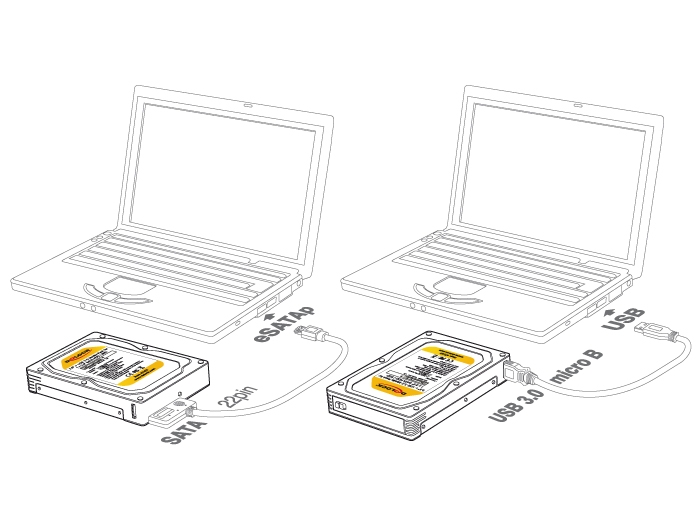

• Possible applications:
    1. internally in a 3.5″ bay
    2. inside a 5.25″ mobile rack
    3. externally over USB 3.0
    4. externally over eSATAp (cable optional)
• Hot Swap
• With special SATA NSS connector inside to protect the SATA
  connector of the HDD from wear at each change

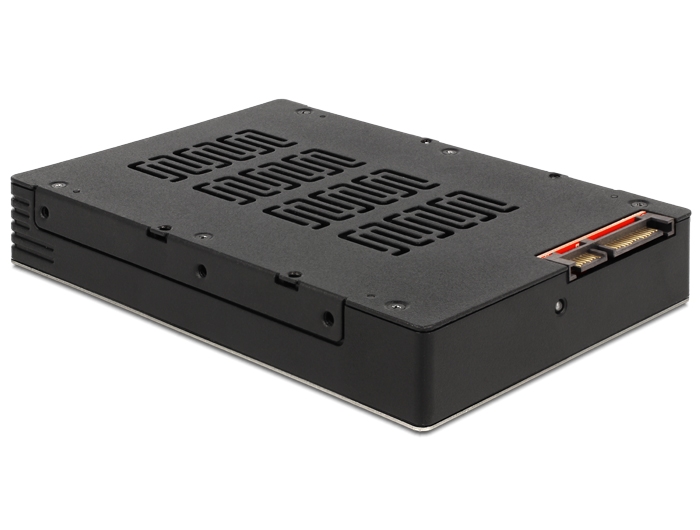

• Optional HDD fan (mounting holes on the bottom side of mobile rack)
• OS independent, no driver installation necessary
Package content:
• Mobile Rack
• Screws
• USB 3.0 cable
• User manual
Data sheet:
http://www.delock.de/produkt/47225/pdf.html?sprache=en
