> >>>ROLINE Gigabit Industrial Switch, 5x RJ-45, 1x LC, managed
ROLINE Gigabit Industrial Switch, 5x RJ-45, 1x LC, managed

ROLINE Gigabit Industrial Switch, 5x RJ-45, 1x LC, managed

ROLINE

21.13.1159

Jauns

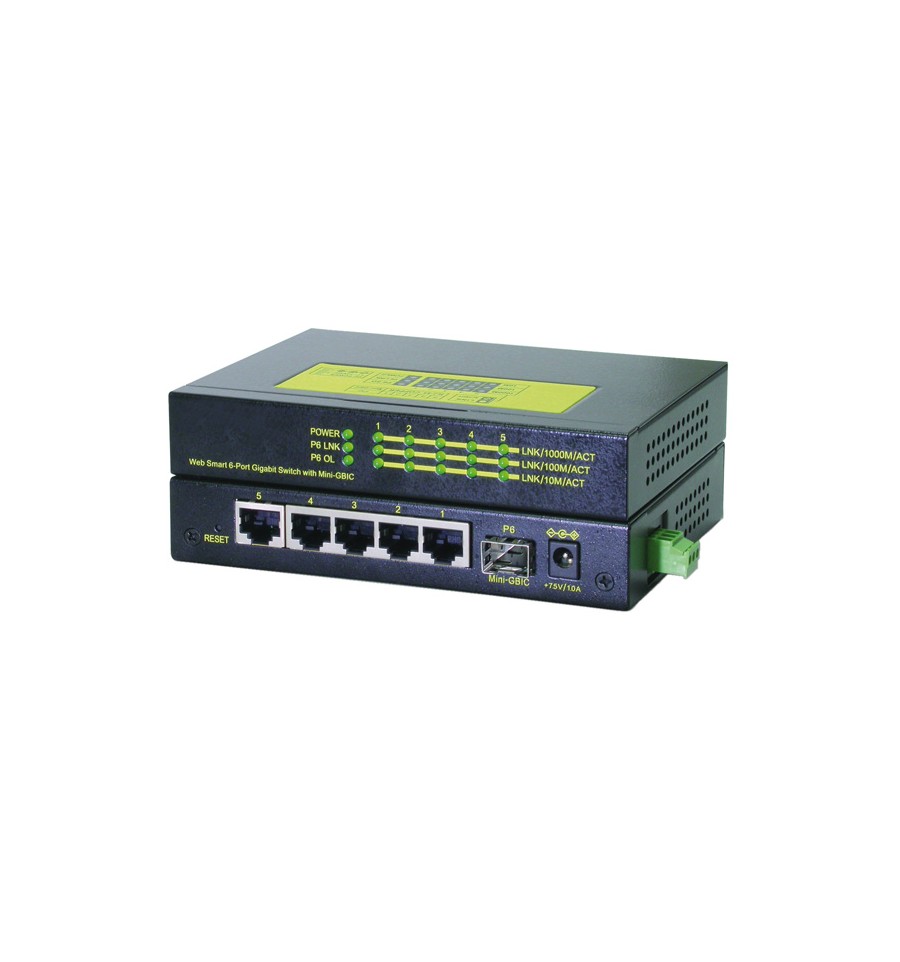

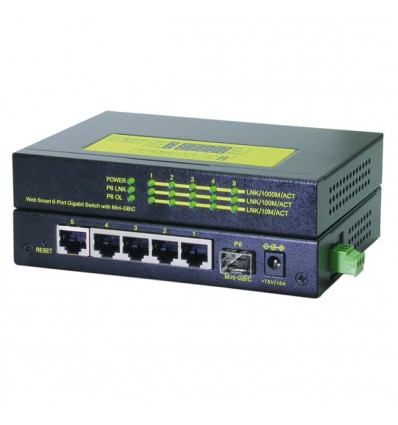

A managed 6-port Gigabit Ethernet switch which is featured with five copper ports, one mini-GBIC (SFP) port and the following advantages in a small footprint box.

  • Provides 5 10/100/1000Base-T ports and 1x 1000Base-SX port
  • Provides in-band web-based management interface
  • All copper ports support auto-negotiation and auto-MDI/MDI-X detection
  • Provides ful...

More details

Salīdzināt
A managed 6-port Gigabit Ethernet switch which is featured with five copper ports, one mini-GBIC (SFP) port and the following advantages in a small footprint box.

  • Provides 5 10/100/1000Base-T ports and 1x 1000Base-SX port
  • Provides in-band web-based management interface
  • All copper ports support auto-negotiation and auto-MDI/MDI-X detection
  • Provides full wire speed forwarding
  • Supports 802.3x flow control for full-duplex and backpressure for half-duplex
  • Provides port status, statistic monitoring and control function
  • Supports port-based and 802.1Q Tag-based VLAN
  • Provides QoS function
  • Provies 802.1x authentication
  • Supports configuration backup and upload
  • Provides port link aggregation (trunking) function
  • Provides port mirroring function
  • Industrial-rated emission and immunity performance
  • Power: Input: 6,5 - 32V DC, Consumption: 3.6W (max.)
  • Operating Temperature - 40 ºC - +70 ºC
  • DC Input via terminal block or DC power jack (6.3mm/2.0mm)
  • Dimensions: 144 X 104.5 X 26mm (WxDxH)
  • As according Power Supply Unit we recommend 21.13.1226
  • 1 x GBIC, included
Auto-NegotiationYes
Content of deliverySwitch, power supply, manual
Conveyance goodNo
Dimensions (HxWxD)106 x 144 x 26 mm
FanNo
Full duplexYes
Gigabit Ethernet Ports Fibre1GBIC, included
Gigabit Ethernet Ports RJ-455
LAN (Mbps)10/100/1000
MAC addressesWeb Browser Software, Management VLAN ID
ManagedYes
ManufacturerROLINE
Manufacturer Item No.21.13.1160
Network standardGigabit Ethernet
Power consumptionmax. 3.6 W
Power supply unit (internal/external)External
Product groupNetwork switches
Product typeSwitch
StackableNo
Switch Layer2
Switch TypeStore-and Forward
Switching Fabric TypeNon blocking
Technical particularity- 40 ºC - +70 ºC
Type of fibre ports1000Base-SX, LC
VLANYes
