Level One LevelOne Switch 26x GE XQS-3126 2x40/100GbE 19" 185W 24xPoE

Kods XQS-3126

Condition: Jauns

Vairāk informācijas

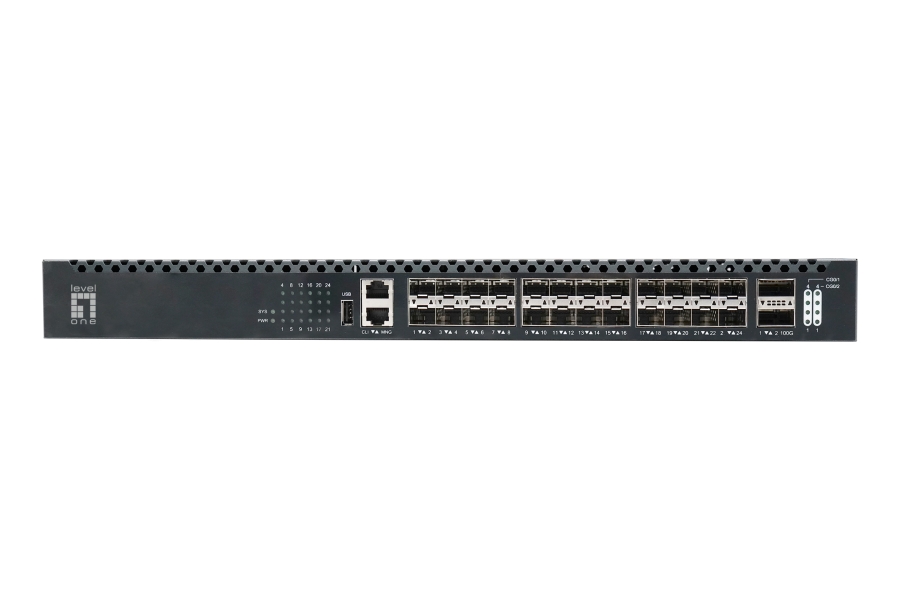

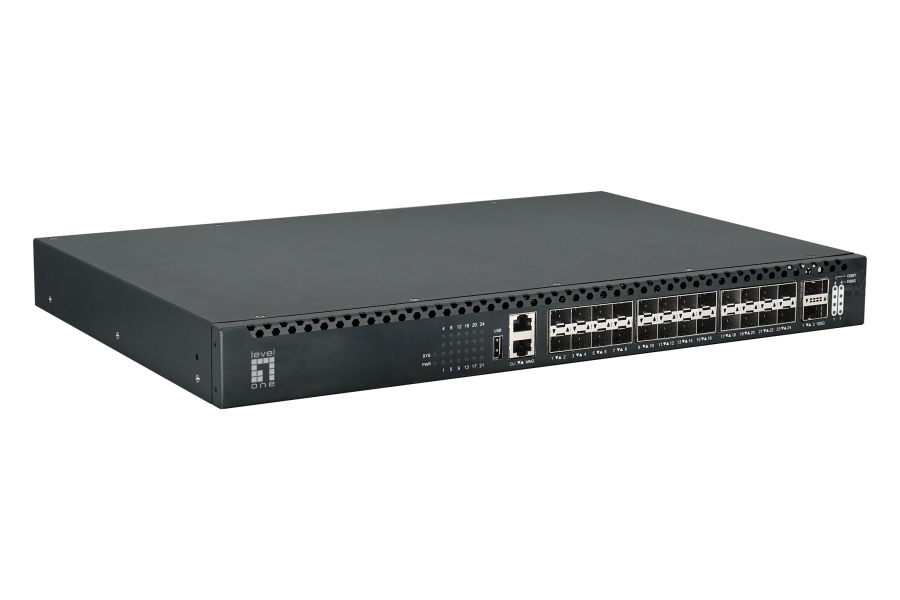

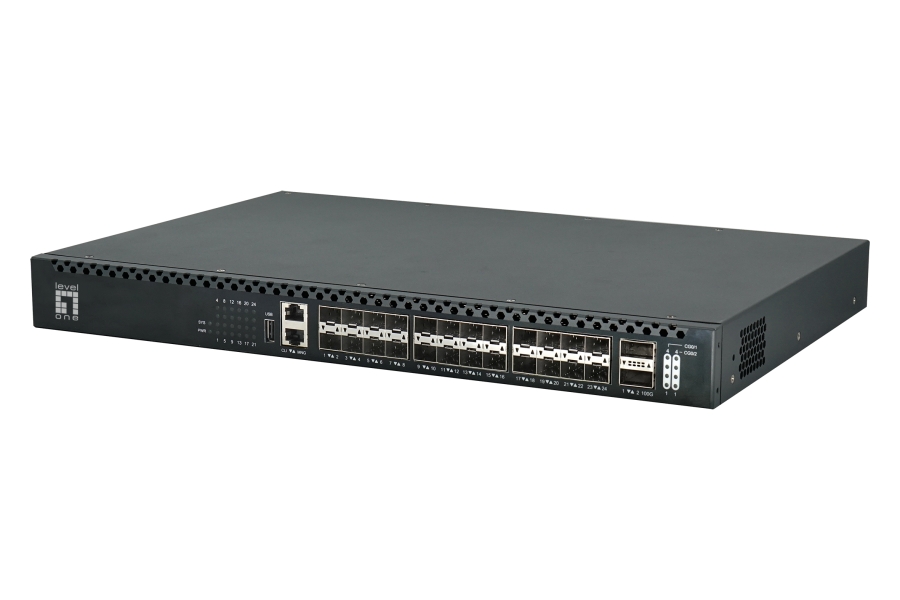

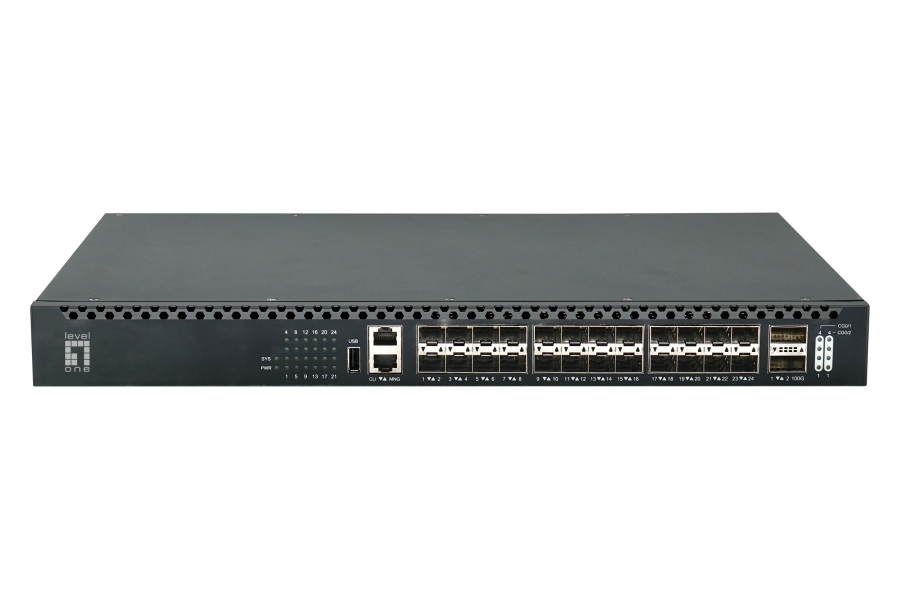

The LevelOne XQS-3126 is a high-performance, full Gigabit TOR switch optimized for demanding data center and cloud environments. Its advanced hardware architecture delivers industry-leading switching performance and low latency. Supporting wire-speed L2, L3, and L4 features, the XQS-3126 also offers essential network services like IPv6, traffic analysis, and virtualization. Built-in redundancy and uninterrupted operation mechanisms ensure maximum network uptime and reliability.

Performance and Scalability
Delivers industry-leading switching performance with up to 880Gbps capacity, powered by high-performance ASICs and multi-core processors.

Meets the demanding requirements of modern data centers for high performance, capacity, density, and scalability.

High Availability
Ensures uninterrupted operations with redundant power supplies, modular hot-swappable components, and seamless failover mechanisms.

Supports advanced redundancy protocols including STP/RSTP/MSTP, VRRP, ring network protection, dual uplink, and LACP.

Offers ISSU and GR for zero-downtime software upgrades and graceful restarts.

Virtualization and Efficiency
Optimizes resource utilization and enhances network performance with Virtual Switch System (VSS) technology.

Doubles performance by eliminating STP blocking and maximizing link utilization.

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Jā
Web-based management	Jā
Traffic classification	Jā
Basic switching RJ-45 Ethernet ports type	Nē
SFP+ module slots quantity	24
Number of management ports	1 pc(s)
Console port	RJ-45
QSFP28 ports quantity	2
USB 2.0 ports quantity	1
Networking standards	IEEE 802.1AE, IEEE 802.1D, IEEE 802.1ag, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ah, IEEE 802.3az
10G support	Nē
Policy-based routing	Jā
Link aggregation	Jā
Spanning tree protocol	Jā
MAC address auto-learning supported	Jā
MAC address auto-aging supported	Jā
Ethernet Ring Protection Switching (ERPS)	Jā
Fast leave	Jā
6to4 tunnel	Jā
VLAN support	Jā
Virtual LAN features	Private VLAN, Protocol-based VLAN
Number of VLANs	4000
VLAN mapping type	1:1 VLAN mapping, N:1 VLAN mapping
MAC address table	128000 entries
Switching capacity	880 Gbit/s
Forwarding rate	660 Mpps
Jumbo frames support	Jā
Jumbo frames	16000
Path MTU discovery	Jā
Packet buffer memory	4.5 MB
DHCP features	DHCP Option 82, DHCP snooping
Access Control List (ACL)	Jā
IGMP snooping	Jā
MAC address filtering	Jā
BPDU filtering/protection	Jā
IP-MAC-Port binding	Jā
Root protection	Jā
DoS attack prevention	Jā
Authentication type	IEEE 802.1x, RADIUS, TACACS+
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR), Weighted random early detection (WRED)
Multicast support	Jā
Multicast features	Multicast traffic suppression
GARP VLAN Registration Protocol (GVRP)	Jā
Routing protocols	BGP, BGP4+, HSRP, MPLS, OSPF, OSPFv3, RIP-1, RIP-2, RIPng, VRRP
Intra-Site Automatic Tunnel Addressing Protocol (ISATAP)	Jā
Rack mounting	Jā
Product colour	Black
Internal memory	2048 MB
Flash memory	4096 MB
Noise level	57 dB
sFlow	Jā
Manually configured tunnel	Jā
Fanless	Nē
Mean time between failures (MTBF)	200000 h
Power source	AC
Power supply included	Jā
Redundant power supply (RPS) support	Jā
Number of power supply units	2
AC input voltage	100 - 240 V
AC input frequency	50 Hz
Power consumption (typical)	26 W
Power consumption (max)	64 W
Power over Ethernet (PoE)	Nē
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	238.91 BTU/h
Width	442.5 mm
Depth	300 mm
Height	44.5 mm
Weight	4.25 kg
Cables included	AC
Quick start guide	Jā
Rack mount kit	Jā
Rubber feet	Jā
Package width	576 mm
Package depth	448 mm
Package height	94 mm
Package weight	7.45 kg
Master (outer) cases per pallet (air)	18 pc(s)
Pallet gross length	100 cm
Pallet gross width	120 cm
Pallet height (air)	164.9 cm
Compliance certificates	Federal Communications Commission (FCC), RoHS, UKCA
Country of origin	China
Master (outer) case width	605 mm
Master (outer) case length	462 mm
Master (outer) case height	215 mm
Harmonized System (HS) code	851762
Master (outer) case gross weight	15.7 kg
Products per master (outer) case	2 pc(s)
