Level One LevelOne Switch 10x GE IGU-1071 8x 1GbE,2x 2.5GbE SFP sw

Kods IGU-1071

Condition: Jauns

Vairāk informācijas

The LevelOne IGU-1071 is a rugged L2+ managed industrial Ethernet switch built for demanding environments. Designed to excel in industrial automation, it offers comprehensive Layer 2 management and rapid failover capabilities. This switch ensures uninterrupted operations with its ERPS redundant network, boasting a sub-20ms recovery time.

Compact and Flexible Connectivity

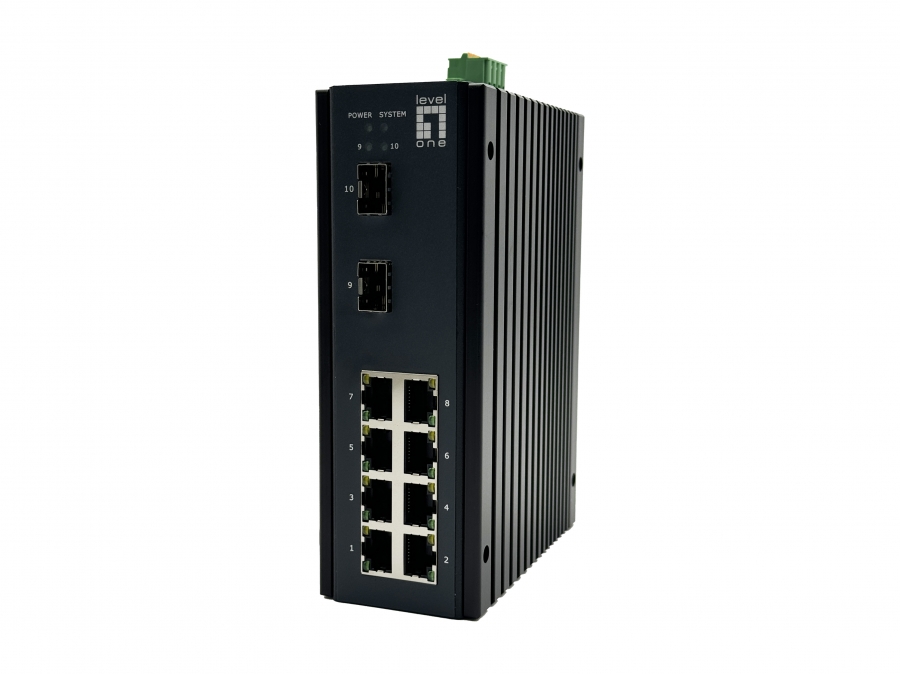

Offers versatile connectivity with 8 10/100/1000Base-T RJ45 ports and 2 1000/2500Base-X SFP slots.

Robust Power and Environmental Resilience

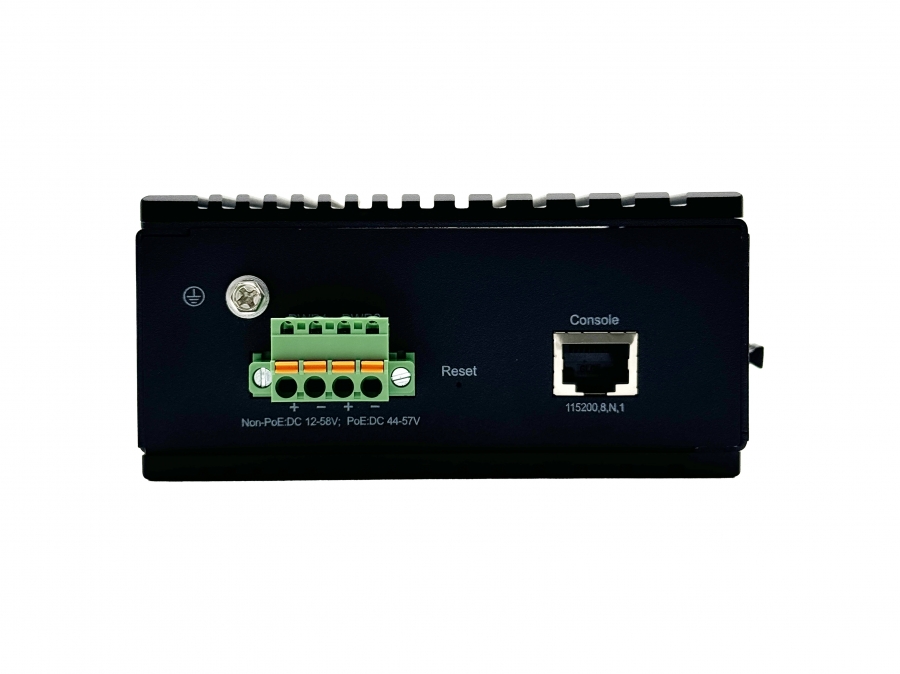

Ensures reliable operation with redundant 12-58V DC power supply, advanced surge protection (6KV), and ESD protection (Air-15kV, Contact-8kV).

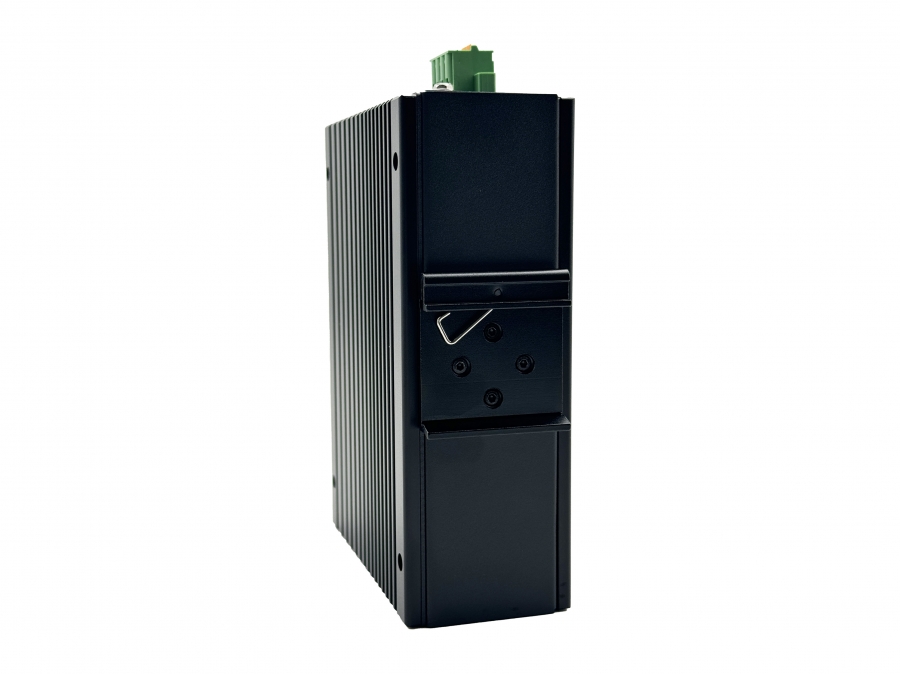

Designed for harsh environments with fanless IP40 Din-rail enclosure and wide operating temperature range (-40°C to +75°C).

High Availability and Performance
Delivers uninterrupted operation through G.8032 ERPS protocol with <20ms recovery time.
Supports advanced Layer 2 features including VLAN, STP/RSTP/MSTP, Link Aggregation, QoS, and IGMP Snooping for optimized network performance.

Comprehensive Layer 2 and Layer 3 Functionality
Offers robust Layer 2 management with VLAN, QinQ, port mirroring, ACL, and 802.1X for network segmentation and security.
Enables advanced Layer 3 routing with IPv4/IPv6 static routing, DHCP server, and other essential protocols.

Advanced Management and Maintenance
Simplifies configuration and management with user-friendly Web, SNMP, CLI, and Telnet interfaces.
Supports remote configuration, firmware upgrades, and system monitoring.

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Jā
Web-based management	Jā
ARP inspection	Jā
Configuring Location Settings (CLI)	Jā
System event log	Jā
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8
SFP module slots quantity	2
Console port	RJ-45
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Nē
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X
Port mirroring	Jā
Flow control support	Jā
Link aggregation	Jā
Spanning tree protocol	Jā
Ethernet Ring Protection Switching (ERPS)	Jā
VLAN support	Jā
MAC address table	16000 entries
Switching capacity	26 Gbit/s
Forwarding rate	38.6 Mpps
Jumbo frames support	Jā
Jumbo frames	10000
Packet buffer memory	12 MB
DHCP features	DHCP server
Access Control List (ACL)	Jā
IGMP snooping	Jā
Security algorithms	HTTPS, SSH
IP-MAC-Port binding	Jā
Authentication	MAC-based authentication, Port-based authentication
Authentication type	IEEE 802.1x, RADIUS
IP Source Guard (IPSG)	Jā
Product colour	Black
LED indicators	Power, System
International Protection (IP) code	IP40
DIN rail mounting	Jā
Country of origin	China
Firmware upgradeable	Jā
Fanless	Jā
Master (outer) cases per pallet (air)	28 pc(s)
Pallet gross length	80 cm
Pallet gross width	120 cm
Pallet height (air)	164.4 cm
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, UKCA
Power source	DC
Power supply included	Nē
Redundant power supply (RPS) support	Jā
Number of power supply units	2
DC input voltage	12 - 58 V
Power consumption (max)	10 W
Surge protection	Jā
Surge protection voltage	6 kV
Power over Ethernet (PoE)	Nē
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Width	54 mm
Depth	115 mm
Height	158 mm
Weight	1.12 kg
Cables included	LAN (RJ-45)
Quick start guide	Jā
Terminal block included	Jā
DIN rail included	Jā
Package width	230 mm
Package depth	180 mm
Package height	70 mm
Package weight	1.38 kg
Master (outer) case width	440 mm
Master (outer) case length	375 mm
Master (outer) case height	250 mm
Harmonized System (HS) code	851762
Master (outer) case gross weight	17.5 kg
Products per master (outer) case	12 pc(s)
Remote administration	Y
