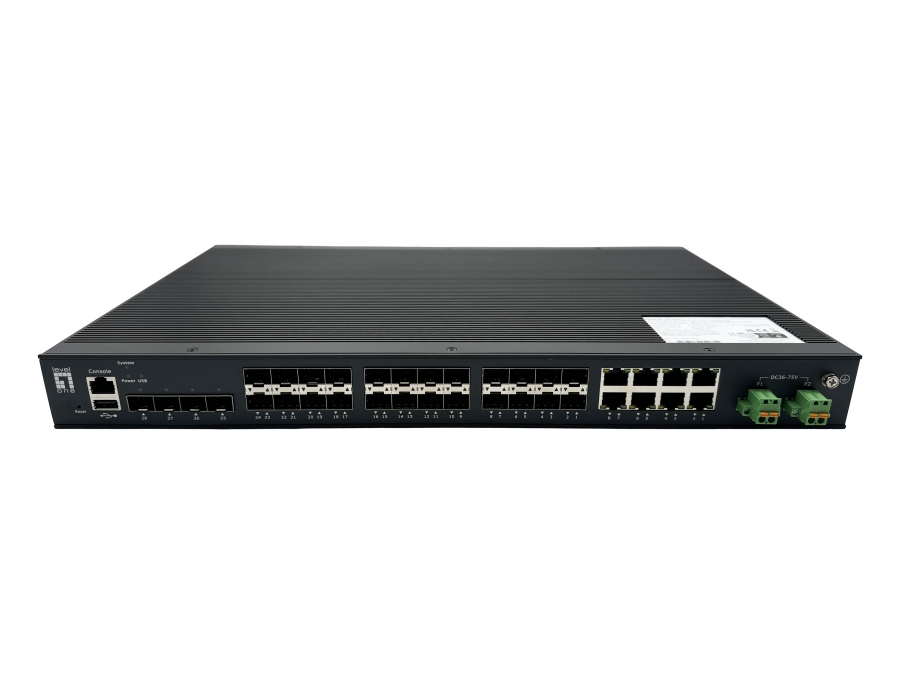

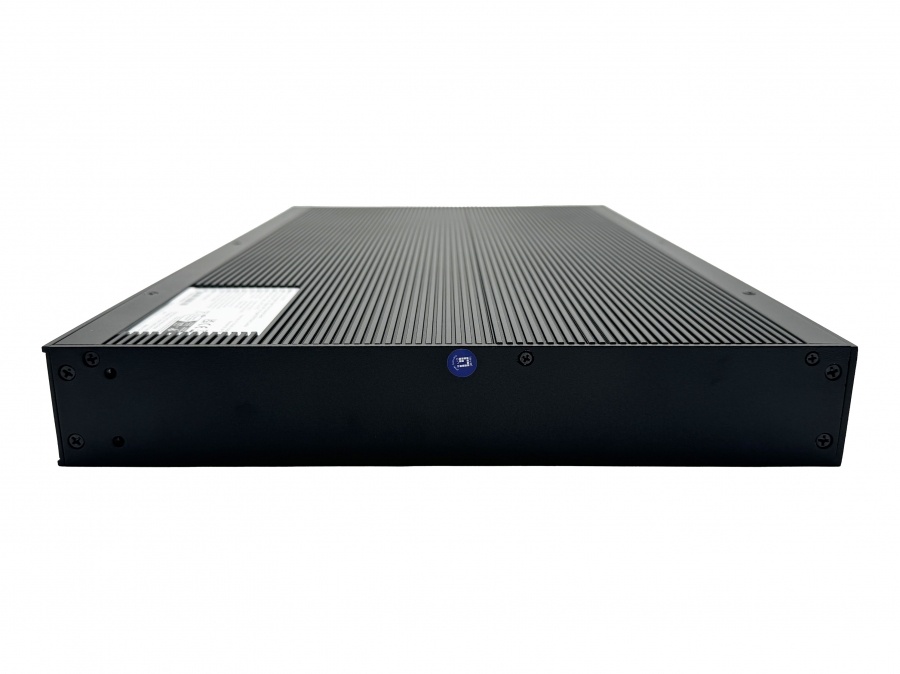

Level One LevelOne Switch 28x GE IGU-2872 4x2.5GbE, 16x1.25GbE SFP

Kods IGU-2872

Condition: Jauns

Vairāk informācijas

The LevelOne IGU-2872 is a rugged L2+ managed industrial Ethernet switch built for demanding environments. Designed to excel in industrial automation, it offers comprehensive Layer 2 management and rapid failover capabilities. This switch ensures uninterrupted operations with its ERPS redundant network, boasting a sub-20ms recovery time. Its wide operating temperature range, AC/DC Redundant power supply, and fanless design ensure uninterrupted operation in harsh industrial conditions. Ideal for large-scale industrial networks, the IGU-2872 provides the foundation for efficient and secure operations.

High-Density Connectivity and Flexibility
Offers comprehensive connectivity options with 16 100/1000Base-X SFP, 8x Gigabit SFP/RJ45 Combo, and 4*1G/2.5GBase-X SFP ports.

Enhanced Reliability and Performance
Ensures uninterrupted operation with redundant AC/DC power supply, advanced surge protection (6KV), and ESD protection (Air-15kV, Contact-8kV).

Delivers high availability through G.8032 ERPS protocol with <20ms recovery time.
Supports advanced Layer 2 features including VLAN, STP/RSTP/MSTP, Link Aggregation, QoS, and IGMP Snooping for optimized network performance.

Advanced Management and Security
Simplifies configuration and upgrades with USB one-key functionality.
Offers robust management options through Web, SNMP, CLI, Telnet, and SSH interfaces.
Provides enhanced security with 802.1X authentication, port isolation, and ACL.

Robust Layer 3 Capabilities
Enables advanced network routing with IPv4/IPv6 static routing and DHCP server.

Environmental Adaptability
Designed for harsh environments with fanless IP40 rack-mount enclosure and wide operating temperature range (-40°C to +80°C).

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Jā
Web-based management	Jā
System event log	Jā
Basic switching RJ-45 Ethernet ports type	Nē
Combo SFP ports quantity	8
SFP module slots quantity	20
Console port	RJ-45
USB 2.0 ports quantity	1
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Nē
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 100BASE-X, 1000BASE-T
Port mirroring	Jā
Flow control support	Jā
Broadcast storm control	Jā
Rate limiting	Jā
Spanning tree protocol	Jā
Ethernet Ring Protection Switching (ERPS)	Jā
VLAN support	Jā
Virtual LAN features	MAC address-based VLAN, Protocol-based VLAN, Stacked VLAN, VLAN mapping
MAC address table	16000 entries
Switching capacity	68 Gbit/s
Forwarding rate	101.1 Mpps
Jumbo frames support	Jā
Jumbo frames	10000
Packet buffer memory	12 MB
Access Control List (ACL)	Jā
Security algorithms	HTTPS, SSH
MAC address filtering	Jā
Authentication	MAC-based authentication, Port-based authentication
Queue scheduling algorithms	Weighted Round Robin (WRR)
Packet filtering	Y
MAC address entries	Dynamic MAC address entries, Static MAC address entries
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)
IP Source Guard (IPSG)	Jā
Rack mounting	Jā
Product colour	Black
LED indicators	Power, System, USB
International Protection (IP) code	IP40
Country of origin	China
Fanless	Jā
Mean time between failures (MTBF)	200000 h
Master (outer) cases per pallet (air)	14 pc(s)
Pallet gross length	80 cm
Pallet gross width	120 cm
Pallet height (air)	177.6 cm
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, UKCA
Power source	AC
Power supply included	Jā
Redundant power supply (RPS) support	Jā
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
DC input voltage	36 - 75 V
Power consumption (max)	36 W
Surge protection	Jā
Surge protection voltage	6 kV
Power over Ethernet (PoE)	Nē
Operating temperature (T-T)	-40 - 80 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Width	440 mm
Depth	45 mm
Height	280 mm
Weight	4.14 kg
Cables included	AC, LAN (RJ-45)
Quick start guide	Jā
Terminal block included	Jā
Rack mount kit	Jā
Package width	525 mm
Package depth	390 mm
Package height	95 mm
Package weight	5.29 kg
Master (outer) case width	535 mm
Master (outer) case length	400 mm
Master (outer) case height	408 mm
Harmonized System (HS) code	851762
Master (outer) case gross weight	22.5 kg
Products per master (outer) case	4 pc(s)
Port trunking	Jā
