Level One LevelOne Switch 10x GE IGS-2110P 2xSFP, 8x PoE Outputs

LEVEL ONE

IGS-2110P

Jauns

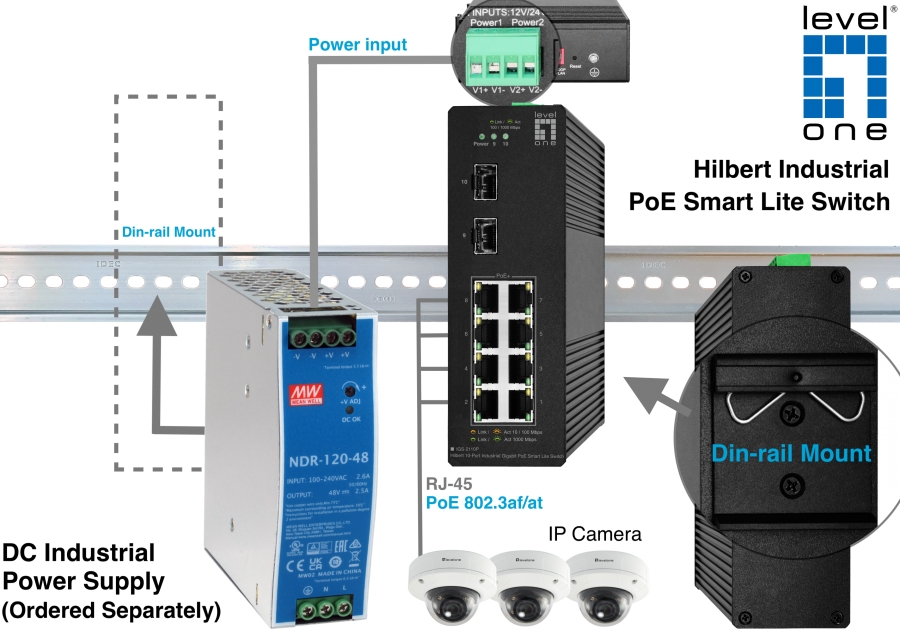

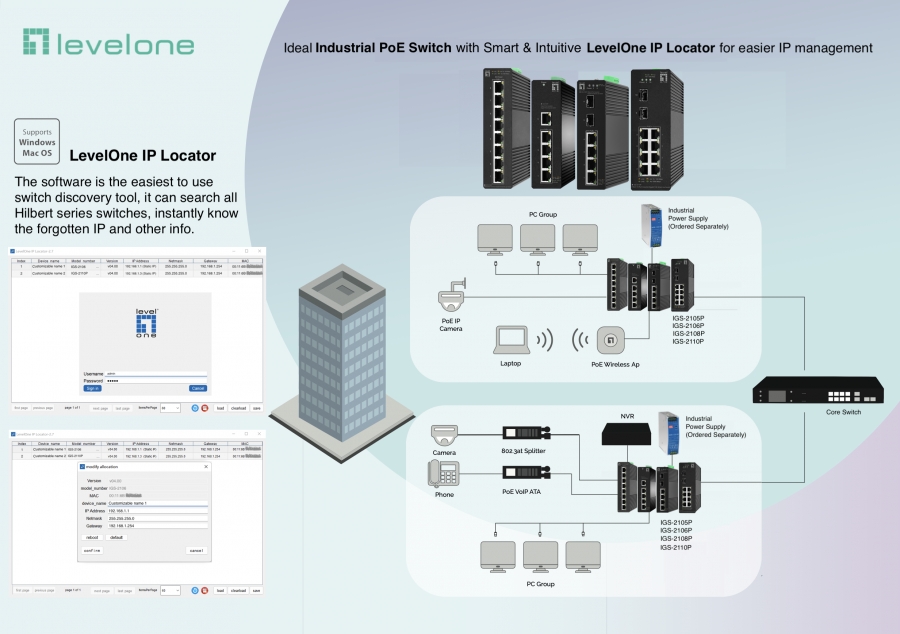

The LevelOne IGS-2110P Hilbert Industrial gigabit PoE smart lite switch is a next-generation Ethernet Switch offering powerful better PoE functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections. IGS-2110P delivers 8 (10M/100M/1G) RJ45/PoE+ (Support 802.3at/af) ports and 2 Gigabit SFP ports. With the industrial standard DIN-rail mount, plus the clearly visible status LEDs provide simple monitoring of port link activity.. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.

The LevelOne IGS-2110P provides high HW performance and environment flexibility for Enterprises. IGS-2110P is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.

Switch typeManaged
Switch layerL2
Quality of Service (QoS) support
Web-based management
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity8
SFP module slots quantity2
Fiber uplink ports quantity2
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X
Port mirroring
Full duplex
Half duplex
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Auto MDI/MDI-X
Spanning tree protocol
Auto-negotiation
MAC address auto-learning supported
MAC address auto-aging supported
VLAN support
Virtual LAN featuresPort-based VLAN, Tagged VLAN
Number of VLANs32
MAC address table4000 entries
Switching capacity20 Gbit/s
Forwarding rate14.88 Mpps
Jumbo frames support
Jumbo frames9000
Packet buffer memory1.5 MB
IGMP snooping
Queue scheduling algorithmsPriority queuing (PQ)
Multicast support
Product colourBlack
LED indicatorsPower, Link, Activity
International Protection (IP) codeIP30

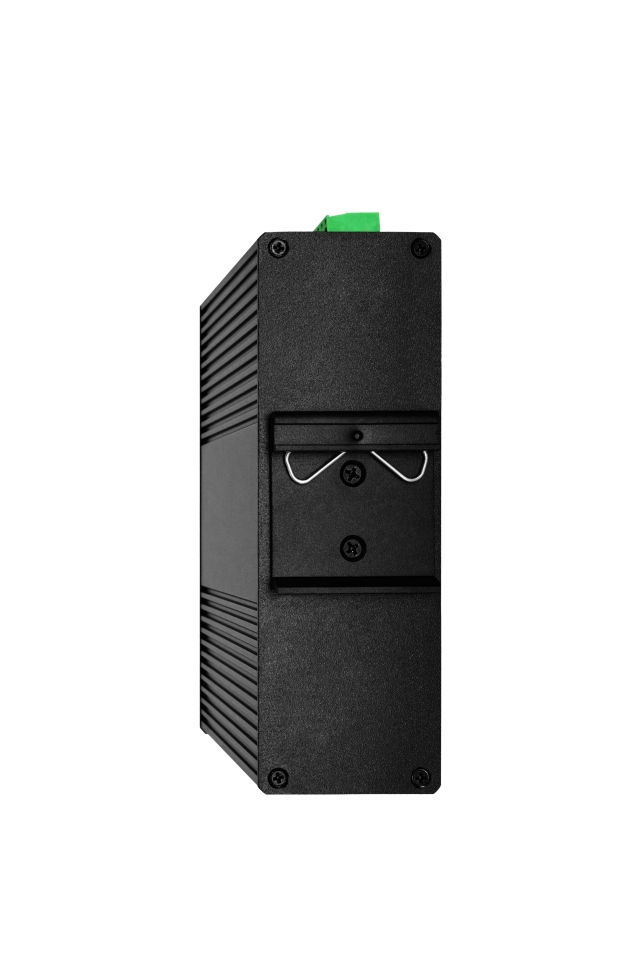

DIN rail mounting
Country of originChina
Flash memory2 MB
Fanless
Mean time between failures (MTBF)43800 h
Layers per pallet (air)16 pc(s)
Pallet gross length80 cm
Pallet gross width120 cm
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS, UKCA

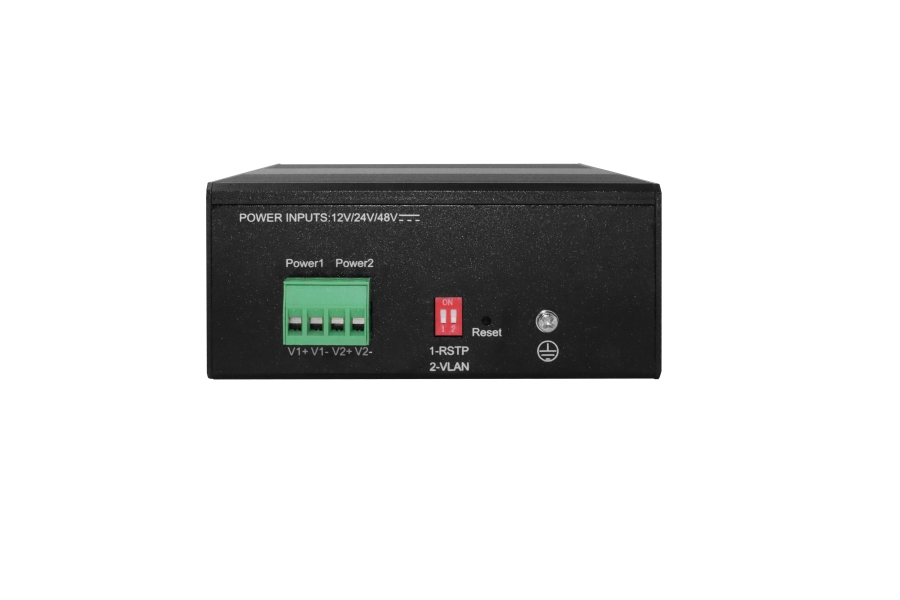

Power sourceDC/PoE
Power supply included
Redundant power supply (RPS) support
DC input voltage44 - 57 V
Power consumption (typical)120 W
Surge protection
Surge protection voltage4 kV
Power protection featuresSurge protection
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity8
Total Power over Ethernet (PoE) budget110 W
Operating temperature (T-T)-40 - 75 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%
Heat dissipation81.89 BTU/h
Width149.5 mm
Depth122.5 mm
Height50 mm
Weight550 g
Quick start guide
Terminal block included
Package typeBox
DIN rail included
Package width230 mm
Package depth160 mm
Package height73 mm
Package weight780 g
Sustainability certificatesCE, Federal Communications Commission (FCC), RoHS, UKCA
Pallet gross height154.4 cm
Master (outer) case width480 mm
Master (outer) case length395 mm
Master (outer) case height350 mm
Harmonized System (HS) code8517620090
Master (outer) case gross weight16 kg
Products per master (outer) case20 pc(s)
Sustainability compliance
