Level One LevelOne Switch 8x FE FEP-0800W65 65W 8xPoE

LEVEL ONE

FEP-0800W65

Jauns

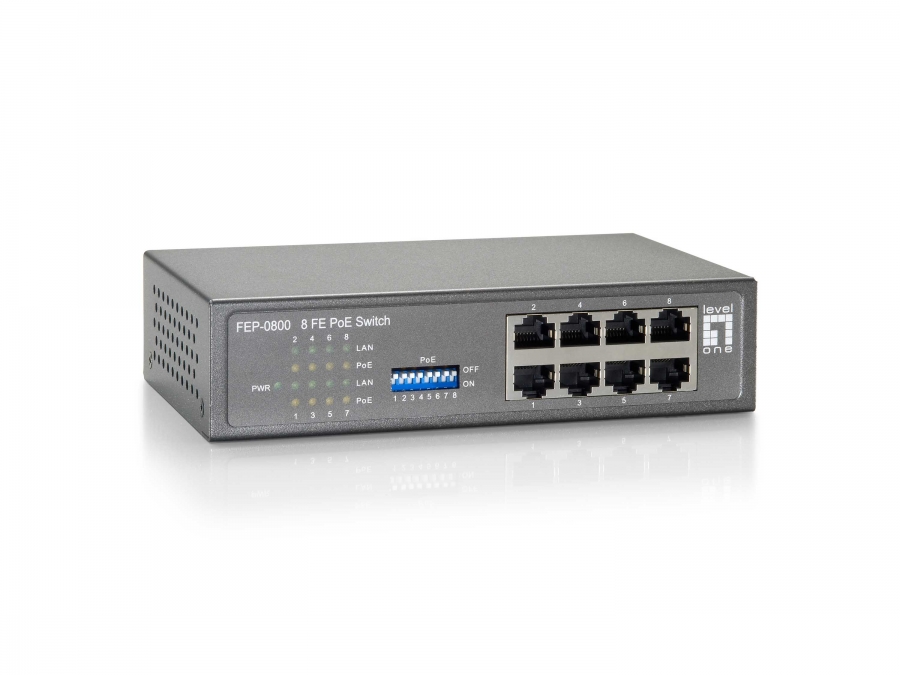

FEP-0800 is a 8-port 10/100Mbps Fast Ethernet Switch with Power over Ethernet (PoE) capability. With 8 dip switches, each PoE port can be manually set for On-Off control. FEP-0800 supports up to 30W on each LAN port when the DIP switch is in the ON position . Using a LevelOne PoE repeater, it is possible to extend the connection a further 100 meters, or even daisy-chain several PoE repeaters together for greater distances. Dual 10/100Mbps ports can connect with other edge switches or NVR as uplink ports.

Key Features
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX
- PoE on/off control per port by dip switches
- Total PoE power budget: 85W, up to 30W per port
- Simple Plug and Play installation

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Power connectorDC-in jack
Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G support
Copper ethernet cabling technology10BASE-T, 100BASE-TX
Full duplex
Flow control support
Auto MDI/MDI-X
Auto-negotiation
MAC address table1000 entries
Switching capacity1.6 Gbit/s
Store-and-forward
Packet forwarding rate (100 Mbps)148000 pps
Packet forwarding rate (10 Mbps)14880 pps
Rack mounting
Product colourGrey
LED indicatorsActivity, PoE, Power
On/off switch
Country of originTaiwan
CertificationFCC, CE, RoHS
Buffer size64 KB
Plug and Play
Power consumption (typical)65 W
Power protection featuresOver current
Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity8
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget60 W
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-40 - 75 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%
Width165 mm
Depth99 mm
Height41 mm
Weight1.4 kg
Cables includedAC
Manual
AC adapter included
Package typeBox
Package width371 mm
Package depth230 mm
Package height82 mm
Package weight1.6 kg
Master (outer) case width525 mm
Master (outer) case length246 mm
Master (outer) case height392 mm
Harmonized System (HS) code85176990
Master (outer) case gross weight10 kg
Products per master (outer) case6 pc(s)
