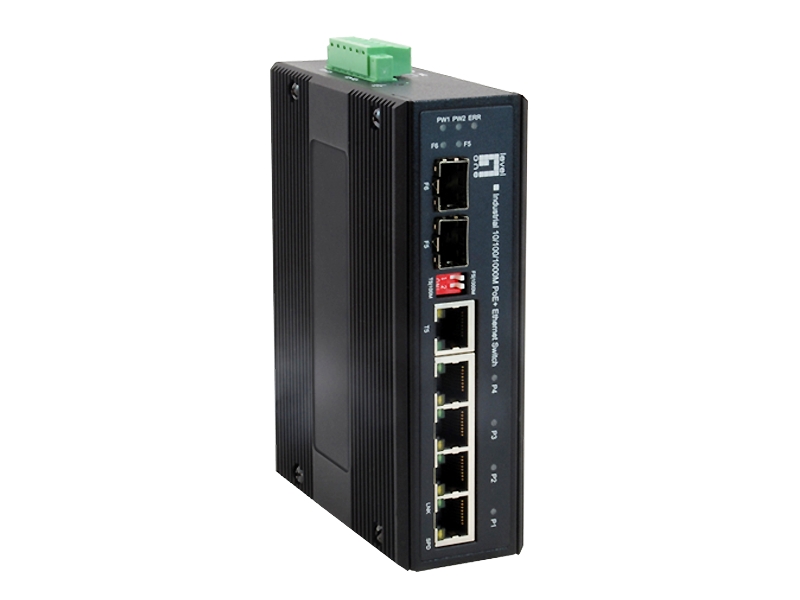

Level One LevelOne Switch 4x FE IES-0610 2xGSFP 126W 4xPoE

Kods IES-0610

Condition: Jauns

Vairāk informācijas

LevelOne IES-0610 Industry Ethernet Switch provides 4 PoE ports 10/100/1000Base plus 2 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rain mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE 802.3at PoE standard at maximum 30W power budget per port. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is compatible with IEEE802.3af standard PD devices.- 4 10/100/1000Base-T PoE ports - 1 Gigabit Combo + 1 Gigabit SFP(100/1G) slot - PoE ports can support the IEEE 802.3at standard and power up 30W - 1000 Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, - Auto-Negotiation, Auto-MDI/MDIX - 40°C to 75°C (-40°F to 167°F) operating temperature range - DIN-Rail mount installation - Metal case design and compliant with IP30 standard - Input power 48VDC

Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	1
SFP module slots quantity	1
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	N
Full duplex	Y
Flow control support	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y
MAC address table	1024 entries
Switching capacity	12 Gbit/s
Store-and-forward	Y
Jumbo frames	10000
Packet forwarding rate (1 Gbps)	148800 pps
Packet forwarding rate (100 Mbps)	148000 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet buffer memory	1 MB
Product colour	Black
LED indicators	Activity, Link, Power
Wall mountable	Y
DIN rail mounting	Y
Country of origin	Taiwan
Certification	FCC Part 15 Subpart B Class A CE EN 55022 Class A EN61000-4-2 (ESD) Level 3 EN61000-4-3 (RS) Level 3 EN61000-4-4 (EFT) Level 3 EN61000-4-5 (Surge) Level 3 EN61000-4-6 (CS) Level 3 EN61000-4-8 (Magnetic Field) Level 3 UL508 (Pending) EN 50121-4 (Pending) IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 UL 508
Input voltage	48 - 55 V
Power consumption (typical)	6 W
Power protection features	Overload, Reverse polarity
Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	4
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	126 W
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%

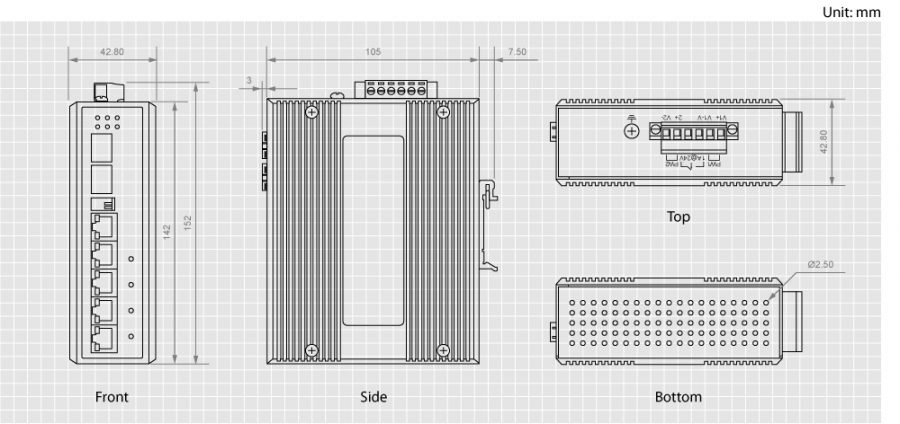

Width	40 mm
Depth	105 mm
Height	38 mm
Weight	720 g
Quick start guide	Y
Package type	Box
Package width	215 mm
Package depth	165 mm
Package height	65 mm
Package weight	120 g
Harmonized System (HS) code	85176990
Terminal block port	Y
