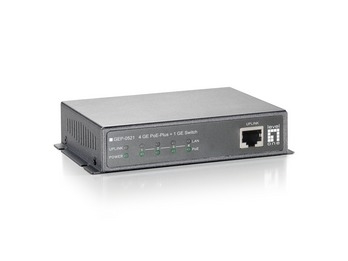

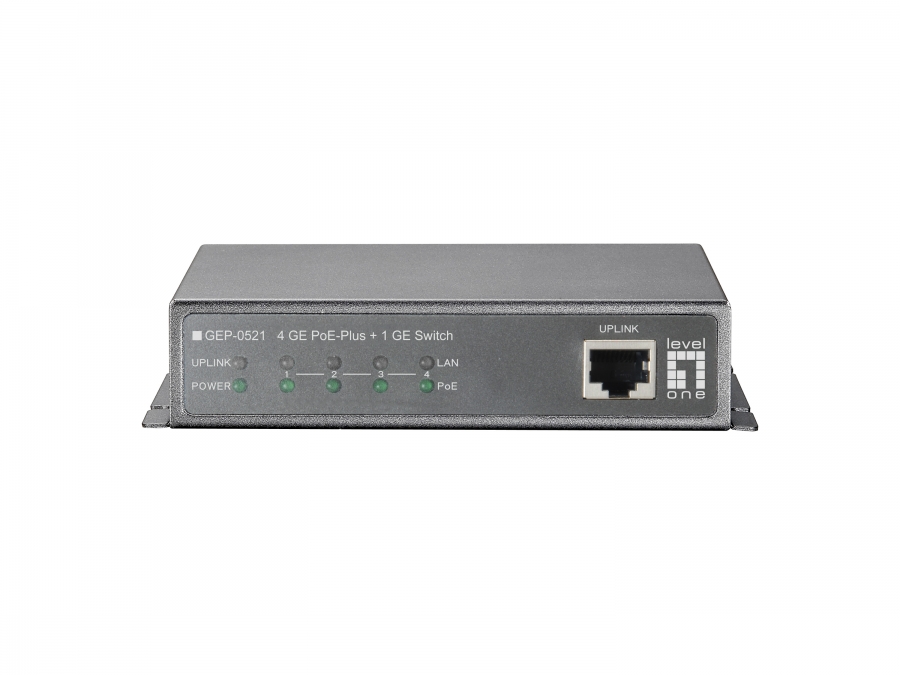

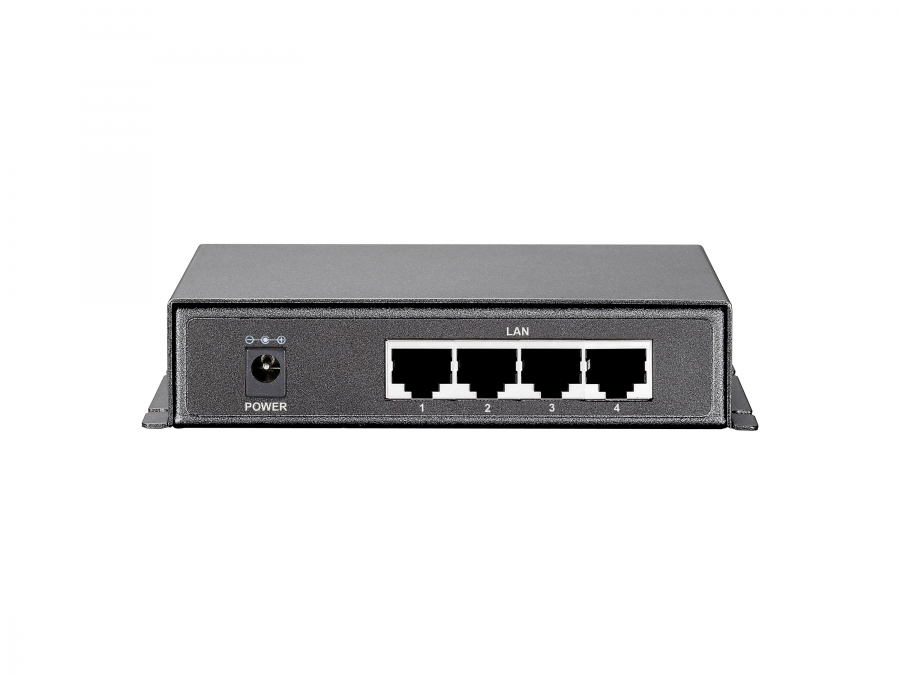

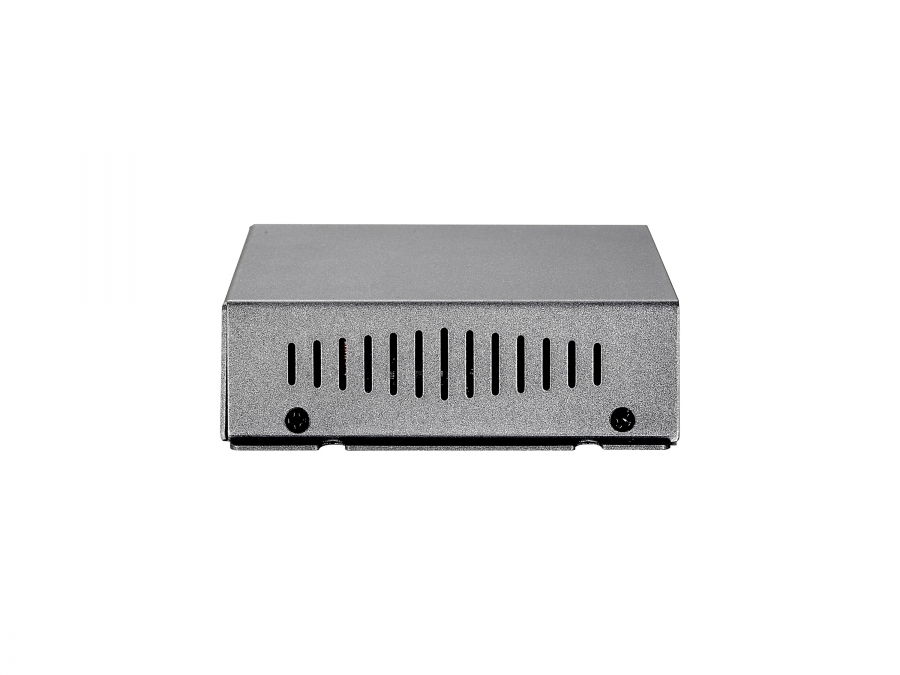

Level One LevelOne Switch 4x GE GEP-0521 115W 4xPoE+

Kods GEP-0521

Condition: Jauns

Vairāk informācijas

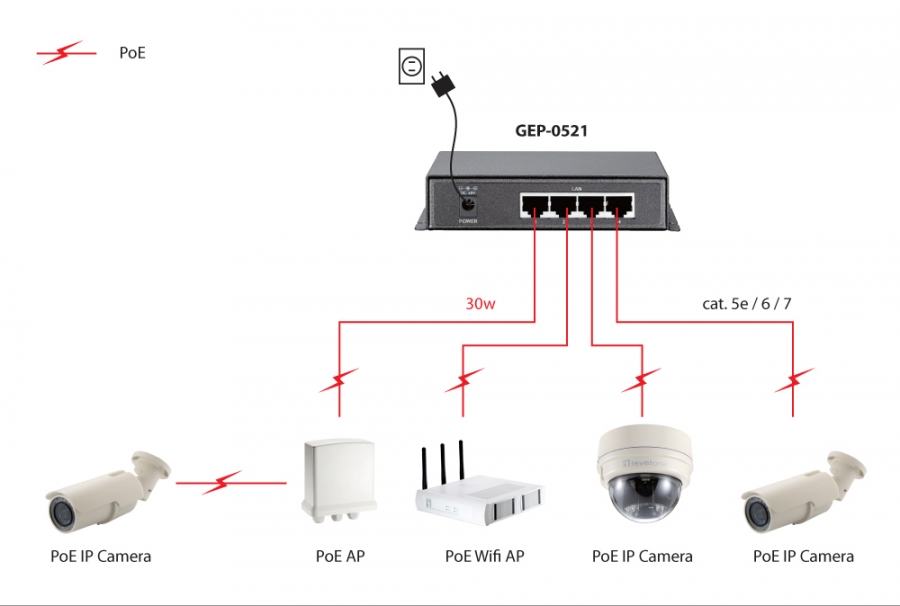

The LevelOne GEP-0521 provides 5 x 10/100/1000Base-T PoE-Plus ports. This switch is IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with total power budget of 120W, up to 30W per port. Together with Energy Efficient Ethernet (IEEE 802.3az) standard compliant, it substantially lower power consumption during periods of low-link utilization. Moreover, it supports Gigabit Ethernet connectivity with 9K jumbo frames for network performing enhancement. Ideal for small businesses that prefers an inexpensive solution for PoE deploying infrastructure.Key Features - IEEE 802.3af/at PoE compliant to simplify deployment and installation - 10/100/1000Mbps wire speed transmission and reception - 9K jumbo frames to increase data transfer rates - Auto-detection and protection of non-standard PoE devices - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - Total PoE power budget: 120W, up to 30W per port - Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex	Y
Flow control support	Y
Cable length detection	Y
MAC address auto-learning supported	Y
MAC address auto-aging supported	Y
MAC address table	1000 entries
Switching capacity	10 Gbit/s
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	8000
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148000 pps
Packet forwarding rate (10 Mbps)	14880 pps
Product colour	Grey
LED indicators	Activity, PoE, Power
Certification	FCC Part 15 Class A, CE, RoHS
Buffer size	104 KB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	120 W
Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	4
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	140 W
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%
Width	120 mm
Depth	90 mm
Height	28 mm
Weight	800 g
Quick start guide	N
AC adapter included	Y
Package width	148 mm
Package depth	80 mm
Package height	232 mm
Package weight	1 kg
Harmonized System (HS) code	85176990
