Level One LevelOne Switch 10x GE GEP-1070 2xGSFP 120W 8xPoE+

Kods GEP-1070

Condition: Jauns

Vairāk informācijas

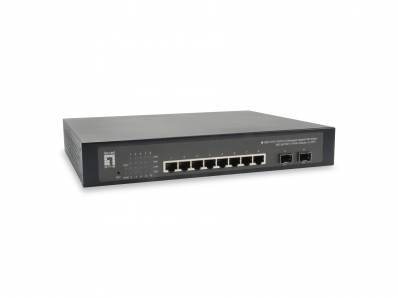

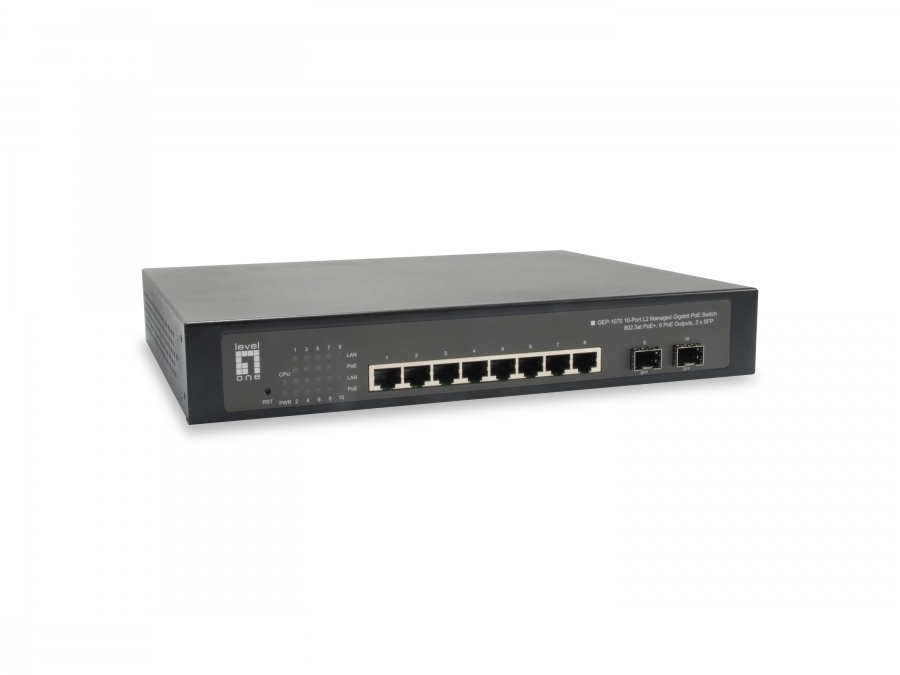

The LevelOne GEP-1070 is 10-port Gigabit Layer-2 Managed PoE+ Switch, is a standard Gigabit Ethernet switch that meets all IEEE IEEE 802.3/u/x/z/ab/af/at standards. The switch includes 8-Port 10/100/1000Mbps RJ-45 with PoE+ function and 2-Port Gigabit SFP for Fiber. It is an ideal solution for applications of wireless AP, IP phones, IP cameras, and IP HDMI TV-Wall of digital signage. It can be managed through Ethernet port using Web-based management, associated with SNMP agent. With the SNMP agent, the network administrator can manage the switch, configure and control in an efficient way. The overall network management is enhanced to meet the network efficiency and to accommodate high bandwidth applications. In addition, the switch features comprehensive and useful functions such as DHCP Snooping (Including Option 82), QoS (Quality of Service), Spanning Tree, RSTP/MSTP, VLAN, Port Trunking, Port Security, MVR, SNMP/RMON, LLDP and IGMPv3 Snooping capability. GEP-1070 supports the Power saving by reducing the power consumption. It could efficiently save the switch power with auto detecting the client idle and cable length to provide different power.- 8 PoE-Plus Gigabit Ethernet ports and 2 Gigabit SFP slots - Supports VLAN (tag-based, Q-in-Q) - Supports 8K MAC address auto-learning and auto-aging - IEEE 802.3ad LACP for auto port aggregation - 9K jumbo frames to increase data transfer rates - Total PoE power budget: 120W, up to 30W per port

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Y
System event log	Y
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	2
Fiber optic connector	SFP
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	N
Full duplex	Y
Flow control support	Y
Link aggregation	Y
Broadcast storm control	Y
Spanning tree protocol	Y
VLAN support	Y
Virtual LAN features	Private VLAN, Tagged VLAN, Protocol-based VLAN
Fiber ethernet cabling technology	100BASE-X, 1000BASE-X
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Throughput	14.88 Mpps
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	9000
DHCP features	DHCP client
Access Control List (ACL)	Y
IGMP snooping	Y
IP-MAC-Port binding	Y
Multicast support	Y
Management protocols	SNMP/ HTTP / HTTPS / TELNET / SSH
Rack mounting	Y
Stackable	N
Form factor	19U
Product colour	Black
Reset button	Y
LED indicators	Activity, Link, Power
On/off switch	Y
Country of origin	Taiwan
Certification	FCC Part 15 Class B, CE
Internal memory	16 MB
Mean time between failures (MTBF)	307044 h
Power supply included	Y
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) ports quantity	8
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	120 W
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 90%
Width	215 mm
Depth	44 mm
Height	280 mm
Weight	2.2 kg
Cables included	AC
Package type	Box
Rack mount kit	Y
Resource CD	Y
Package width	235 mm
Package depth	83 mm
Package height	377 mm
Package weight	3.1 kg
Master (outer) case width	430 mm
Master (outer) case length	320 mm
Master (outer) case height	480 mm
Harmonized System (HS) code	85176990
Master (outer) case gross weight	16 kg
Products per master (outer) case	5 pc(s)
