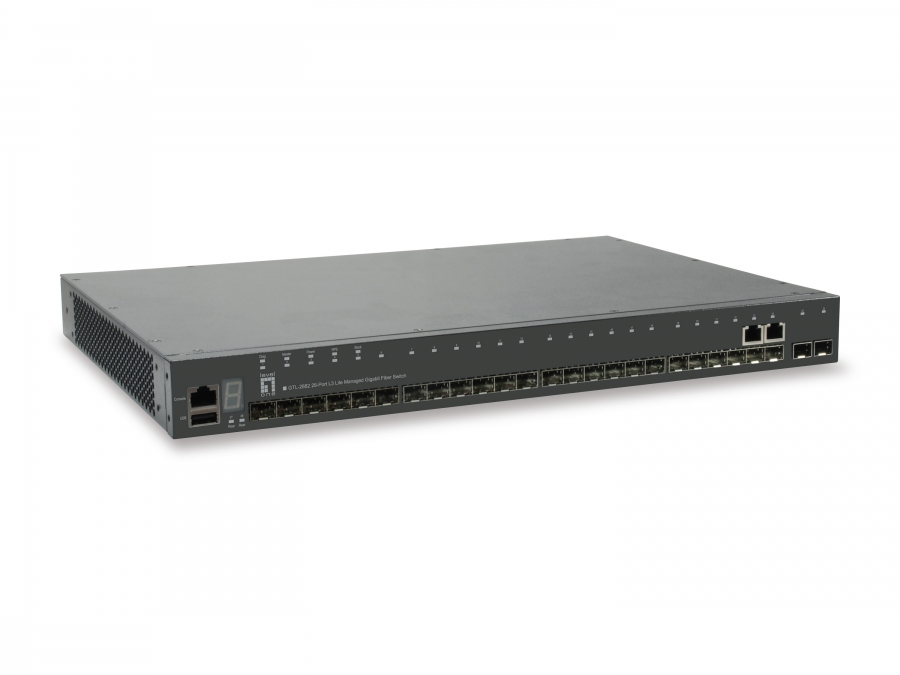

Level One LevelOne Switch 2x GE GTL-2882 22xGSFP+19"

LEVEL ONE

GTL-2882

Jauns

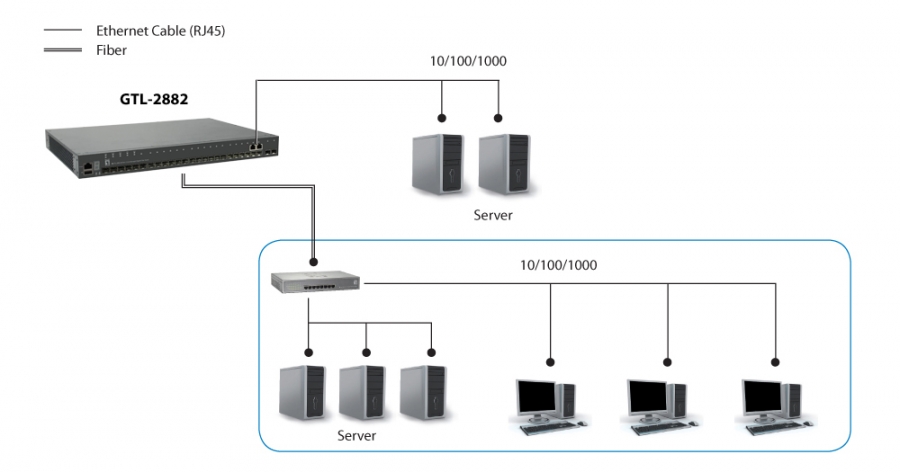

The GTL-2882 series includes high-performance Gigabit Ethernet Layer3 Lite switches featuring 28 or 52 ports; 24 /48 10/100/1000BASE-T ports, two 10G SFP+ ports, and one 10G expansion slot for a dual-port module. The switch is ideal for high-performance server aggregations, such as enterprise data centers, where it can connect high-end or network-attached file servers through fiber ports. It can also deployed as a backbone upgrade, or to provide Gigabit-to-the-desktop for power users. This switch is packed with features and is a cost-effective solution that brings continuous availability, enhanced security, and advanced QoS to the network edge, while maintaining simplicity of management.

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportY
Web-based managementY
ARP inspectionY
System event logY
Gigabit Ethernet (copper) ports quantity2
SFP module slots quantity22
SFP+ module slots quantity2
Fiber optic connectorSFP, SFP+
Console portRJ-45
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportY
Port mirroringY
Full duplexY
Flow control supportY
Link aggregationY
Spanning tree protocolY
Ethernet Ring Protection Switching (ERPS)Y
VLAN supportY
Virtual LAN featuresPrivate VLAN, Voice VLAN, Tagged VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN, IP subnet–based VLAN
Number of VLANs4000
MAC address table16000 entries
Switching capacity128 Gbit/s
Forwarding rate95.23 Mpps
Store-and-forwardY
Jumbo frames supportY
Jumbo frames10000
Packet buffer memory1.5 MB
DHCP featuresDHCP snooping
Security algorithmsHTTPS
Static port securityY
SSH/SSL supportY
DoS attack preventionY
Management protocolsBOOTP/DHCP, SNTP, DNS, LLDP, RMON I, SNMP v1/v2/v3,
GARP VLAN Registration Protocol (GVRP)Y
Rack mountingY
StackableY
Product colourGrey
LED indicatorsDiagnostic, System, Uplink
Number of fans3 fan(s)
Country of originChina
CertificationFCC Class A, CE, VCCI, CB, UL, WEEE, RoHS
Physical stacking (units)8
Virtual stacking (units)36
Memory typeDRAM
Internal memory256 MB
Flash memory128 MB
Firmware upgradeableY
TelnetY
Mean time between failures (MTBF)364434 h
Power supply includedY
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current2 A
Power consumption (typical)42 W
Power over Ethernet (PoE)N
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%
Width440 mm
Depth315 mm
Height44 mm
Weight3.8 kg
Cables includedAC, LAN (RJ-45)
Quick start guideY
Package typeBox
Rubber feetY
Resource CDY
Package width590 mm
Package depth390 mm
Package height133 mm
Package weight6.2 kg
Master (outer) case width590 mm
Master (outer) case length390 mm
Master (outer) case height133 mm
Harmonized System (HS) code85176990
Master (outer) case gross weight6.2 kg
Products per master (outer) case1 pc(s)
