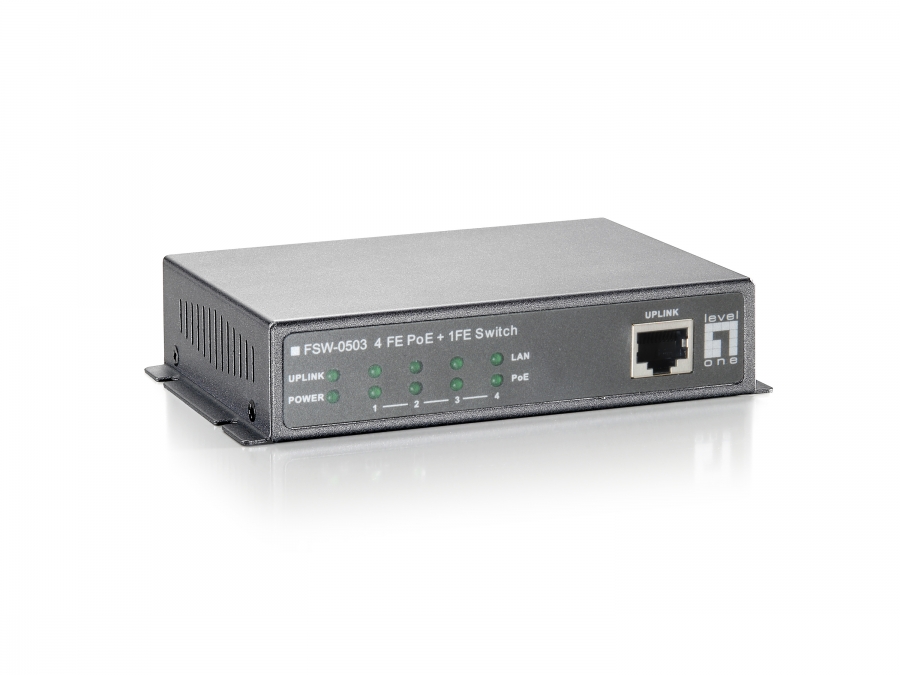

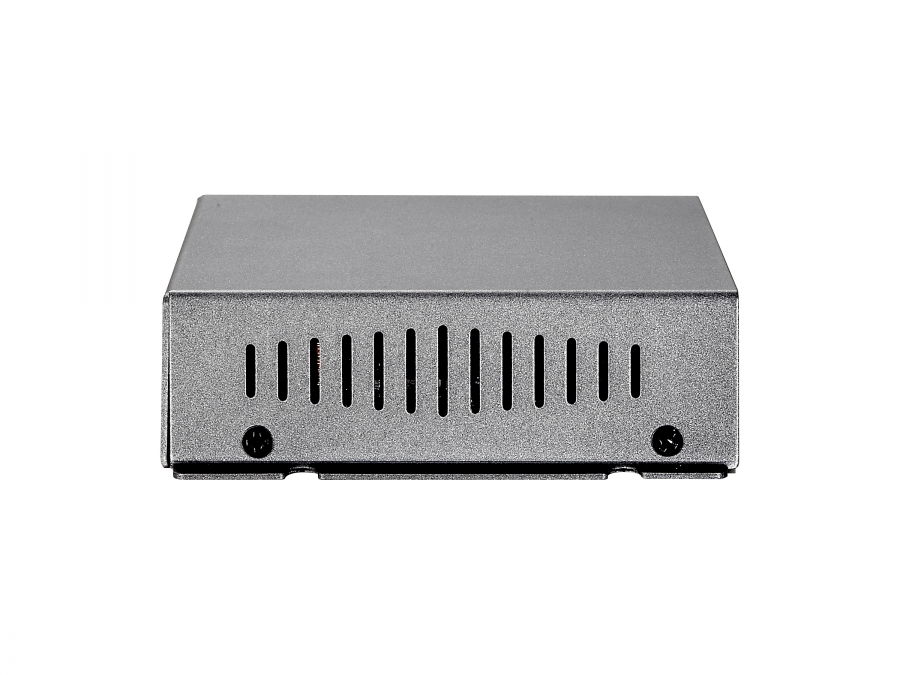

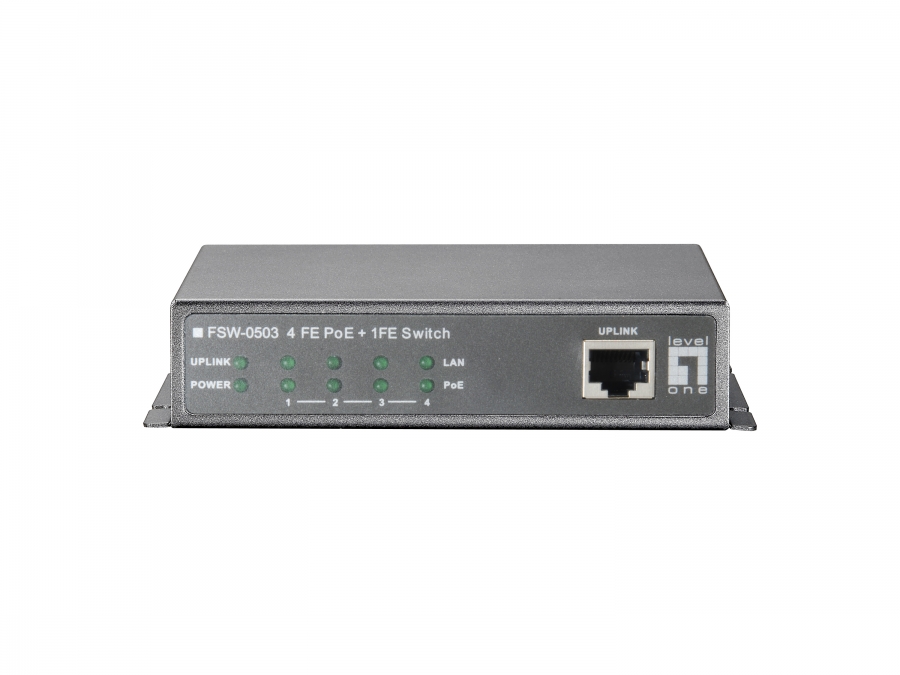

Level One LevelOne Switch 5x FE FSW-0503W90 90W 4xPoE

Kods FSW-0503W90

Condition: Jauns

Vairāk informācijas

Advanced PoE Solution FSW-0503(Z) is a 4 Fast Ethernet PoE +1 Fast Ethernet Switch. Per PoE port is powered up to 15.4W. The total PoE power budget is 61.6W. It is an ideal solution for extensive WLAN, IP surveillance system deployments especially when the legacy and PoE compliance devices co-exist in your network environment. The switch automatically detects IEEE 802.3af compliant device connected and provides power and data over a single cable to these devices.FSW-0503(Z) is compact in size, making it ideal for desktop users with limited space. You also have option of installing several FSW-0503(Z) in a 19” chassis (POC-6000) for a largescale rack-mount PoE Solution.Stable and Reliable Network Environment FSW-0503(Z) enables users to deploy a stable and reliable high-speed LAN environment, with store-and-forward switching architecture, packet error filtering and non-blocking packet forwarding. The 802.3x and backpressure flow control mechanisms work respectively for full and half duplex modes. This device supports N-way auto-negotiation protocol that automatically detects networking speed and duplex modes.Easy to Use For instant error detection, the switch is equipped with a full range of LEDs to help monitor and troubleshoot problems on the network.- Provides flexibility of 4 x 10/100BASE-TX PoE ports - IEEE 802.3af PoE compliant to simplify deployment and installation - Auto-detection and protection of non-standard PoE devices - 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission

Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Console port	RJ-45
Power connector	DC-in jack
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Cable types supported	Cat3, Cat4, Cat5
Full duplex	Y
Flow control support	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y
MAC address table	1000 entries
Store-and-forward	Y
Packet forwarding rate (100 Mbps)	148000 pps
Packet forwarding rate (10 Mbps)	14880 pps
Rack mounting	Y
Product colour	Grey
LED indicators	Link, PoE, Power, Uplink
Country of origin	Taiwan
Certification	FCC, CE, RoHS
Buffer size	48 KB
DC input voltage	56 V
Power consumption (typical)	90 W
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet (PoE) power per port	15.4 W
Total Power over Ethernet (PoE) budget	87 W
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%
Width	90 mm
Depth	120 mm
Height	28 mm
Weight	800 g
Manual	Y
Package type	Box
Package width	141 mm
Package depth	234 mm
Package height	79 mm
Package weight	1.04 kg
Master (outer) case width	430 mm
Master (outer) case length	480 mm
Master (outer) case height	320 mm
Harmonized System (HS) code	85176990
Master (outer) case gross weight	18 kg
Products per master (outer) case	20 pc(s)
