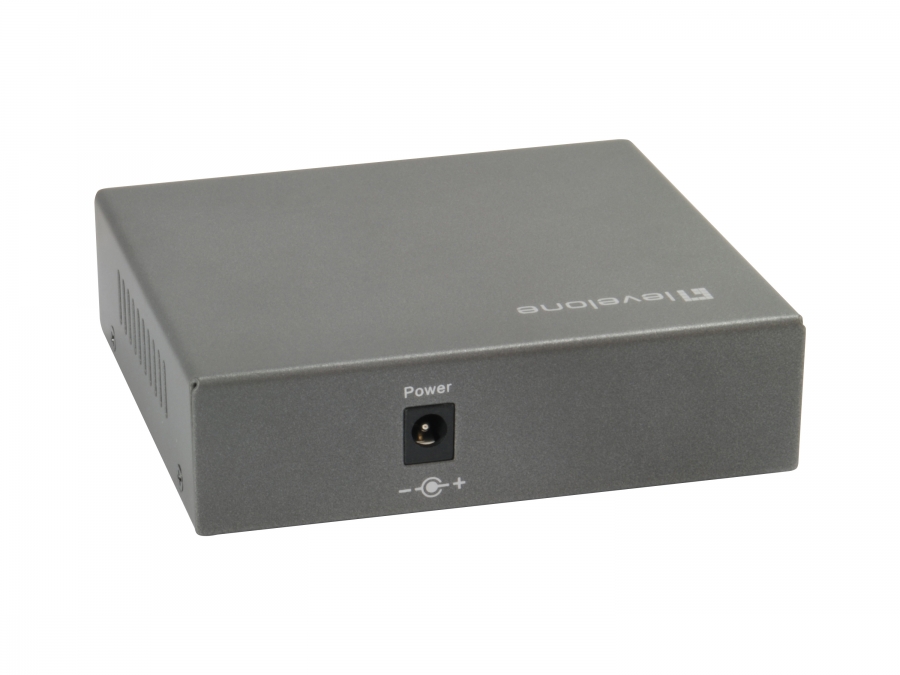

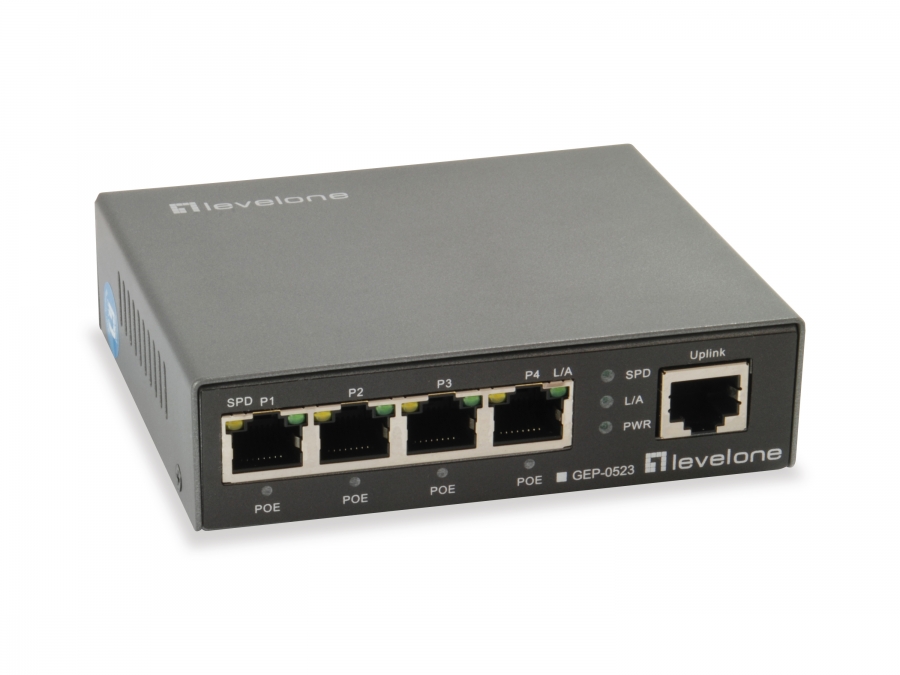

Level One LevelOne Switch 5x GE GEP-0523 60W 4xPoE

Kods GEP-0523

Condition: Jauns

Vairāk informācijas

The LevelOne GEP-0523 is a Gigabit Ethernet PoE switch with a total of 5 ports, one of which is available as uplink port and 4 ports for Power over Ethernet. Per PoE port a power supply of up to 30W is possible. The total PoE power budget is 60W. It is an ideal solution when office and home users use a combination of PoE and non-PoE devices.The GEP-0523\'s four PoE-enabled ports make it the ideal solution for office users using PoE-enabled devices in the workplace. This can include a mix of PoE IP phones, PoE Wifi APs and PoE IP cams. It is the perfect solution for offices that want to upgrade their office equipment and LAN infrastructure to PoE capability or upgrade with Gigabit performance. The switch automatically detects the connected IEEE 802.3at/af standard device and provides these devices with power and data over a single cable.In addition, the GEP-0523 enables users to provide a stable and reliable high-speed LAN environment with store-and-forward switching architecture, packet error filtering and blockage-free packet forwarding. The 802.3x flow control mechanisms operate in both full and half duplex modes. This device supports the N-Way Auto Negotiation protocol, which automatically detects network speed and duplex mode.For instant fault detection, the GEP-0523 is equipped with a full range of LEDs to help monitor and troubleshoot the network.

Traffic classification	Y
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support	N
MAC address table	8000 entries
Store-and-forward	Y
Maximum data transfer rate	1000 Gbit/s
Jumbo frames support	Y
Jumbo frames	9126
Packet buffer memory	1 MB
Rack mounting	N
Product colour	Black
Certification	CE,FCC
Mean time between failures (MTBF)	30000 h
Power supply included	Y
DC input voltage	52 - 57 V
Input current	1.25 A
Power consumption (typical)	5 W
Power protection features	Over current, Short circuit
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) ports quantity	4
Total Power over Ethernet (PoE) budget	60 W
Operating temperature (T-T)	-20 - 70 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	96 mm
Depth	30 mm
Height	111 mm
Weight	350 g
Quick start guide	Y
AC adapter included	Y
Package width	190 mm
Package depth	55 mm
Package height	230 mm
Package weight	750 g
Harmonized System (HS) code	85176990
