| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 4 |
| SFP module slots quantity | 1 |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | Y |
| Half duplex | Y |
| Flow control support | Y |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| Rack mounting | N |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Power |
| International Protection (IP) code | IP30 |
| Wall mountable | Y |

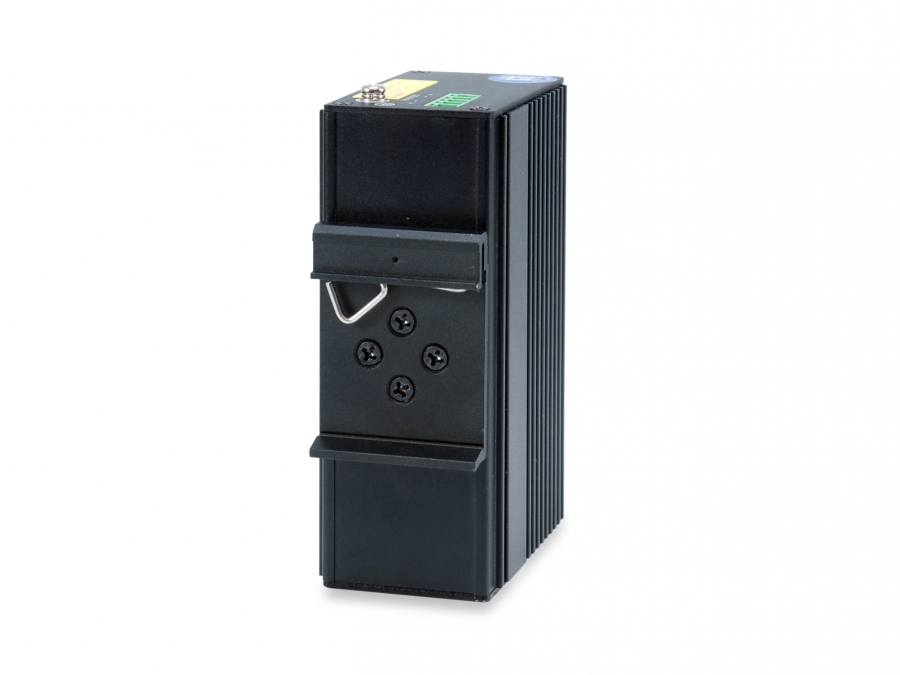

| DIN rail mounting | Y |
| Country of origin | China |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 159 cm |
| Power supply included | N |

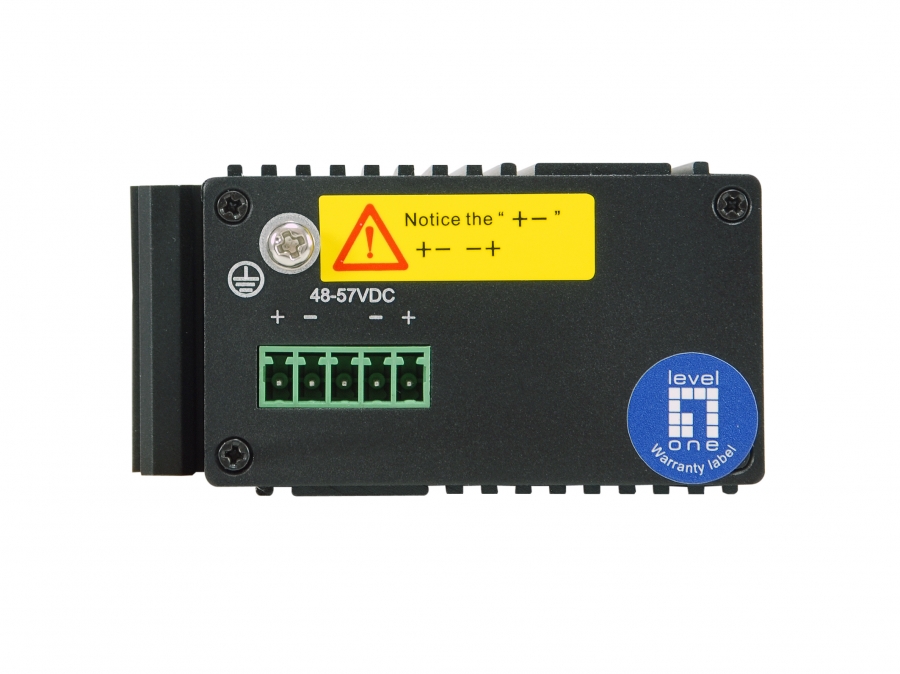

| DC input voltage | 48 - 57 V |
| Surge protection | Y |
| Surge protection voltage | 6 kV |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Operating temperature (T-T) | -30 - 65 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 10 - 90% |
| Width | 65 mm |
| Depth | 36 mm |
| Height | 101 mm |
| Weight | 350 g |
| Quick start guide | Y |
| Terminal block included | Y |
| Package type | Box |
| Package width | 70 mm |
| Package depth | 60 mm |
| Package height | 110 mm |
| Package weight | 400 g |
| Products per pallet | 24 pc(s) |
| Master (outer) case width | 422 mm |
| Master (outer) case length | 566 mm |
| Master (outer) case height | 360 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case gross weight | 13 kg |
| Products per master (outer) case | 28 pc(s) |
