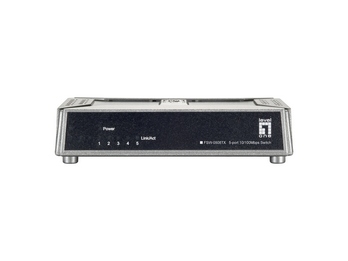

Level One LevelOne Switch 5x FE FSW-0508TX Kunststoff

Kods FSW-0508TX

Condition: Jauns

Vairāk informācijas

LevelOne’s FSW-0508TX 5-Port Fast Ethernet Switch combines efficient technology with a unique design. This switch is equipped with 5 10/100Mbps ports capable of reaching the highest bandwidths up to 200Mbps for each port to provide workstations with a congestion-free data pipe for simultaneous access to the server.Each port of the FSW-0508TX supports an auto-negotiation function that can automatically set the best possible bandwidth when a connection is established with another network device. The store-and-forward switching mechanism ensures that no error packets occur and provide maximum efficiency and stability. With Auto-MDIX function, this switch is expandable by cascading two or more switches together by uplinking directly without cable selection hassle.Its small and compact size is specially designed to fit in limited-space locations for SOHO or home usage. Users can immediately access any needed features simply by attaching the cables and turning on the power. For instant error detection, the switch is equipped with a full range of LEDs to help you monitor and troubleshoot problems on your network.- Provides flexibility of 5x 10/100BASE-TX ports - 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX - Supports 2K MAC address auto-learning and auto-aging - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - Magnetic base for easy placement - Compact, lightweight design

Switch type	Unmanaged

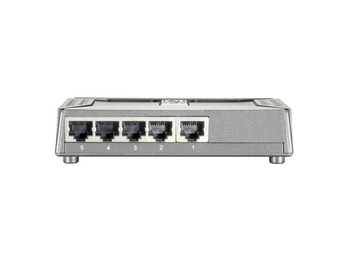

Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)

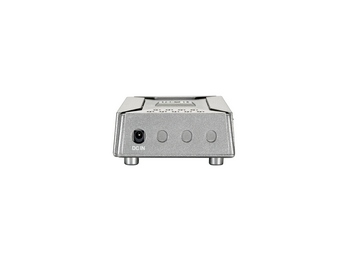

Power connector	DC-in jack
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Full duplex	Y
Flow control support	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y
MAC address table	2048 entries
Switching capacity	1 Gbit/s
Store-and-forward	Y
Packet forwarding rate (100 Mbps)	148000 pps
Packet forwarding rate (10 Mbps)	14880 pps
Rack mounting	N
Stackable	N
Product colour	Black, Grey
LED indicators	Activity, Link, Power
Country of origin	China
Certification	FCC, CE, RoHS
Buffer size	48 KB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	5 V
Output current	1 A
Power consumption (typical)	2.5 W
Power over Ethernet (PoE)	N
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	10 - 90%
Width	125 mm
Depth	69 mm
Height	30 mm
Quick start guide	Y
AC adapter included	Y
Package width	120 mm
Package depth	100 mm
Package height	156 mm
Package weight	400 g
Harmonized System (HS) code	85176990
