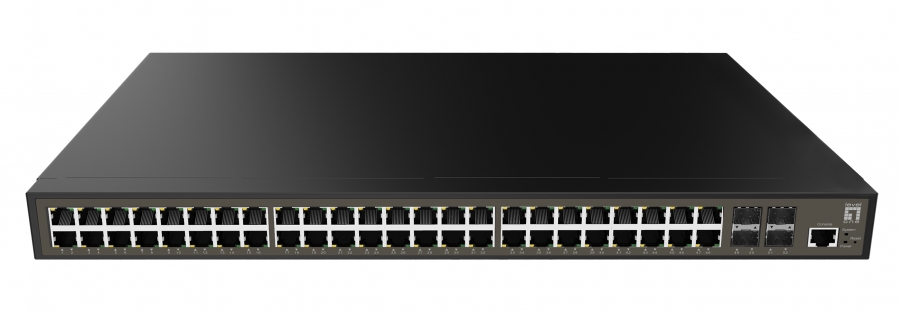

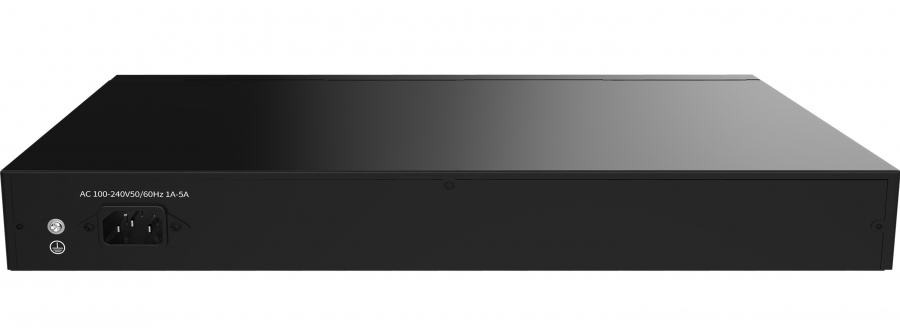

Level One LevelOne Switch 48x GE GEL-5271 4xGSFP 19"

Kods GEL-5271

Condition: Jauns

Vairāk informācijas

The LevelOne GEL-5271 is an intelligent 52-Port L2 plus managed gigabit switch with 48 RJ45 ports and 4 SFP fiber slots, designed for enterprise or large workgroups connectivity applications with the non-blocking, wire-speed switching performance and advanced networking management functions.The switch supports a flexible web-based management interface for both IPv4 and IPv6 as well as console, SNMP and Telnet management access. Despite its affordable pricing, the GEL-5271 is equipped with many advanced features such as Internet Group Management Protocol (IGMP) snooping, port-/MAC-/tag-based VLAN, IEEE 802.1D/w/s Spanning Tree, Access Control List (ACL), IEEE 802.3az Energy Efficient Ethernet, Link Aggregation Control Protocol (LACP), IEEE 802.1p QoS, Storm Control for protecting against broadcast/multicast/unknown unicast and much more.An ideal network solution for anyone looking for an affordable and efficient way to expand their network.

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Y
Web-based management	Y
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	48
SFP module slots quantity	4
Power connector	AC-in jack
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Y
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Y
Broadcast storm control	Y
Ethernet LAN data rates	10,100,1000 Mbit/s
Fiber ethernet cabling technology	1000BASE-LHX, 1000BASE-LX, 1000BASE-SX, 1000BASE-ZX
MAC address table	16000 entries
Static route	Y
Jumbo frames support	Y
Jumbo frames	10000
DHCP features	DHCP Option 82, DHCP client, DHCP snooping
Access Control List (ACL)	Y
IGMP snooping	Y
Password protection	Y
Multicast support	Y
Routing protocols	RIP
Rack mounting	Y
Stackable	N
Form factor	1U
Product colour	Black
LED indicators	Activity, Link, Power
Country of origin	China
Certification	FCC Part 15 Subpart B, CE Mark, EN IEC 62368-1, EN 55032, EN 55035, EN 61000-3-2/3, RoHS
Built-in processor	Y
Internal memory	256 MB
Flash memory	512 MB
Noise level	45 dB
Firmware upgradeable	Y
Power source	AC
Power supply included	Y
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	40 W
Power over Ethernet (PoE)	N
Operating temperature (T-T)	10 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Width	440 mm
Depth	300 mm
Height	44 mm
Weight	3.5 kg
Cables included	AC
Quick start guide	Y
Package type	Box
Rack mount kit	Y
Package width	535 mm
Package depth	340 mm
Package height	80 mm
Package weight	4.2 kg
Harmonized System (HS) code	85176990
