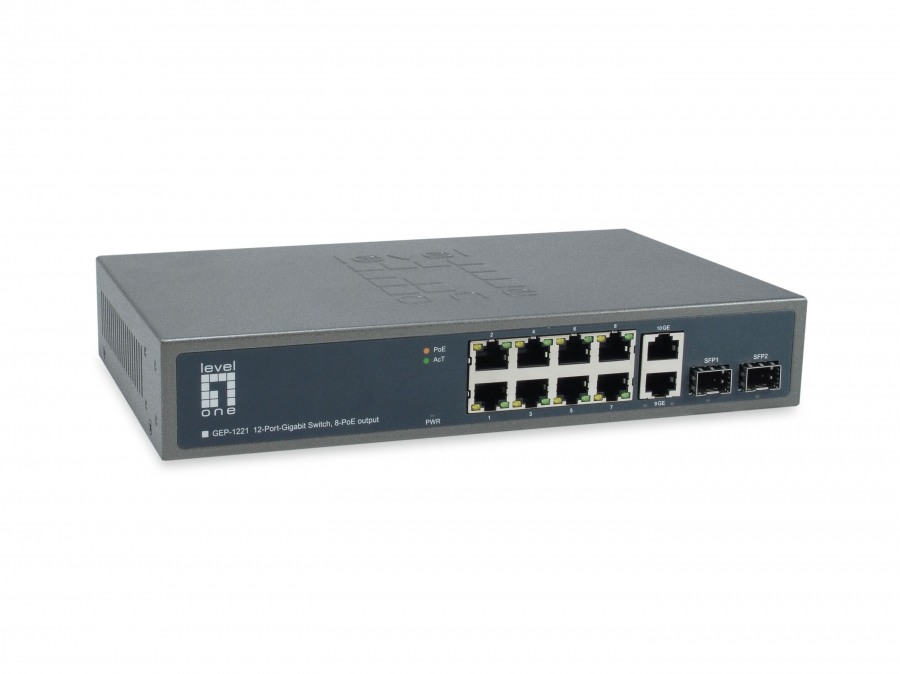

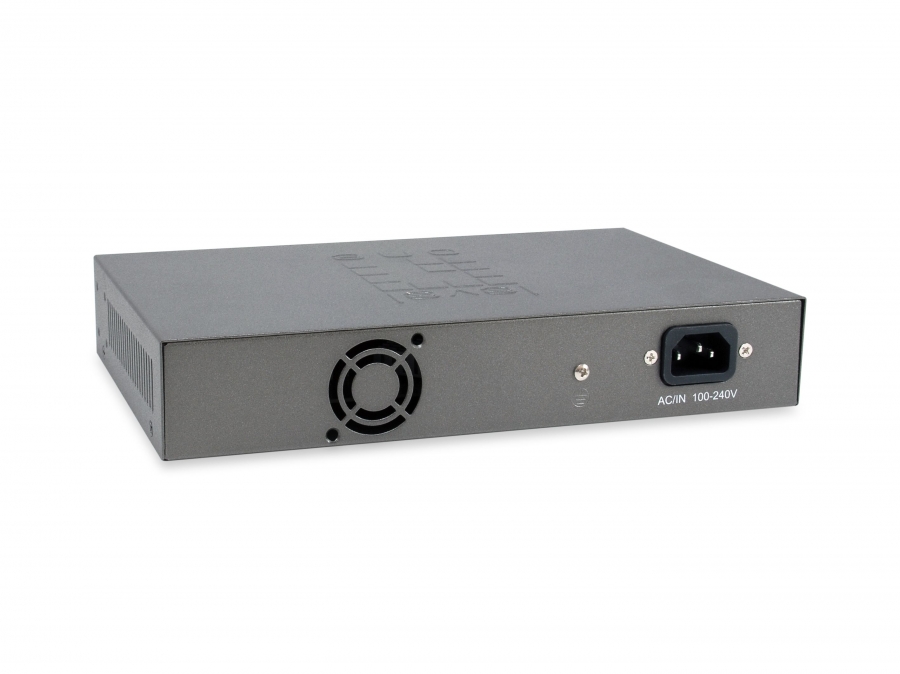

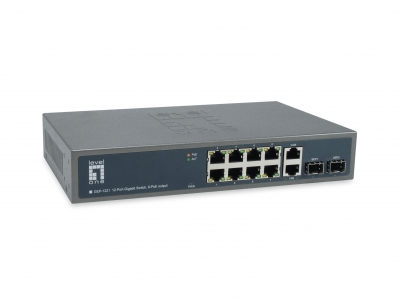

Level One LevelOne Switch 10x GE GEP-1221 2xGSFP 19" 150W 8xPoE+

Kods GEP-1221

Condition: Jauns

Vairāk informācijas

The GEP-1221 switch provides 10 port 10/100/1000M ports with 2 port SFP. It is designed for easy installation and high performance in an environment where traffic is on the network and the number of users increases continuously. It consists of 8 PSE/PoE ports. That can solve the limitation of the power outlet location and offer the system designer a flexible solution to locate the network device everywhere.The device size is specifically designed for medium to large workgroups. The Switch can be installed where space is limited; moreover it provides smooth network migration and easy upgrade to network capacity. The PoE switch can be rack-mount on 19” cabinet.

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	10
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	10
SFP module slots quantity	2
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	N
Auto MDI/MDI-X	Y
Ethernet LAN data rates	1000 Mbit/s
Auto-negotiation	Y
MAC address table	4000 entries
Switching capacity	22 Gbit/s
Rack mounting	Y
Stackable	N
Product colour	Black
LED indicators	Y
Internal memory	2 MB
Fanless	Y
Power source	AC
Power supply included	Y
AC input voltage	100 - 240 V
Power consumption (typical)	10 W
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	150 W
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	250 mm
Depth	150 mm
Height	40 mm
Weight	1.4 kg
Quick start guide	Y
Harmonized System (HS) code	85176990
