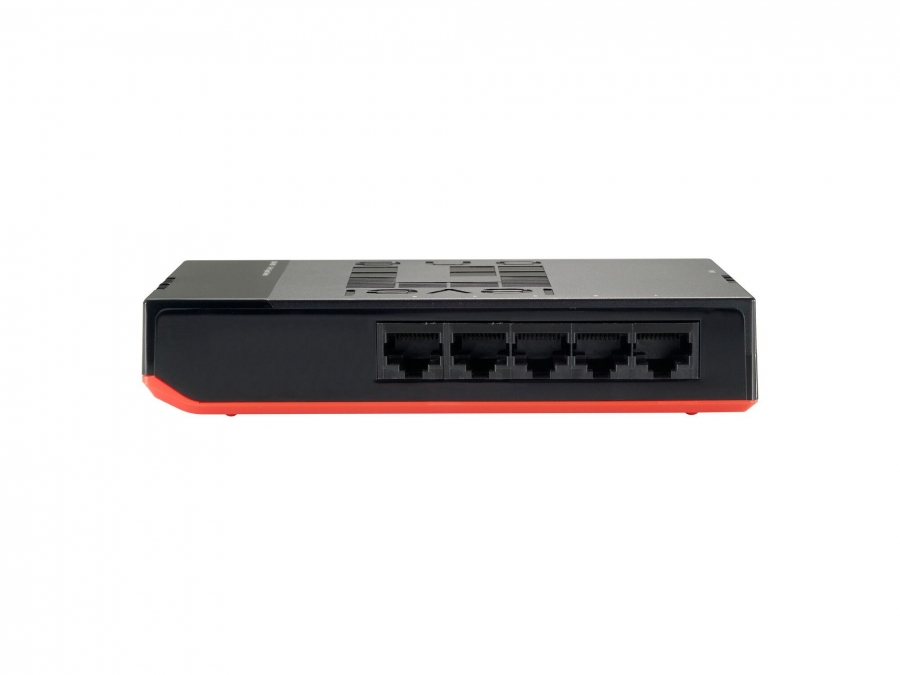

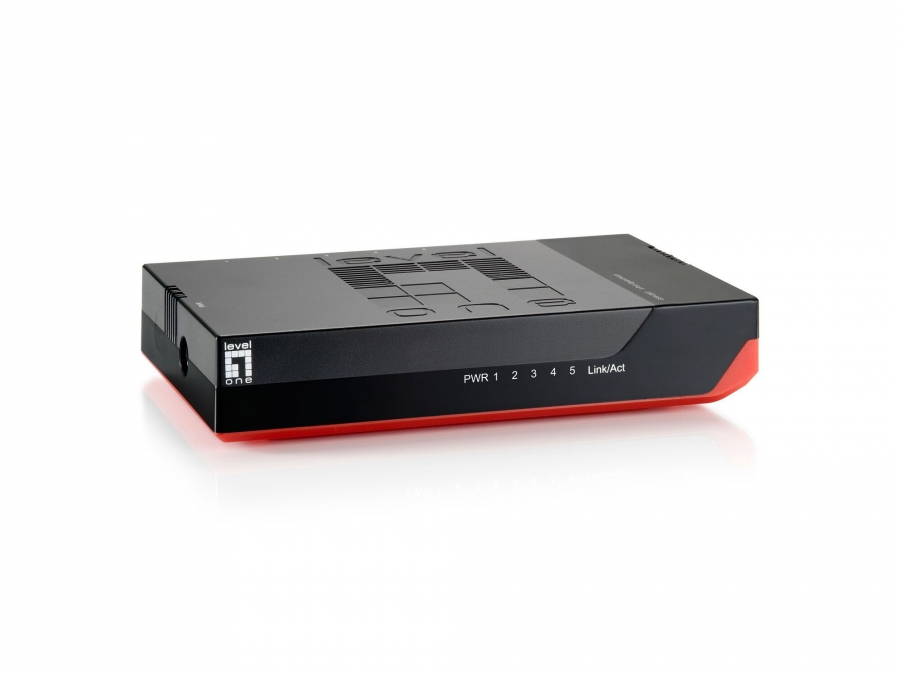

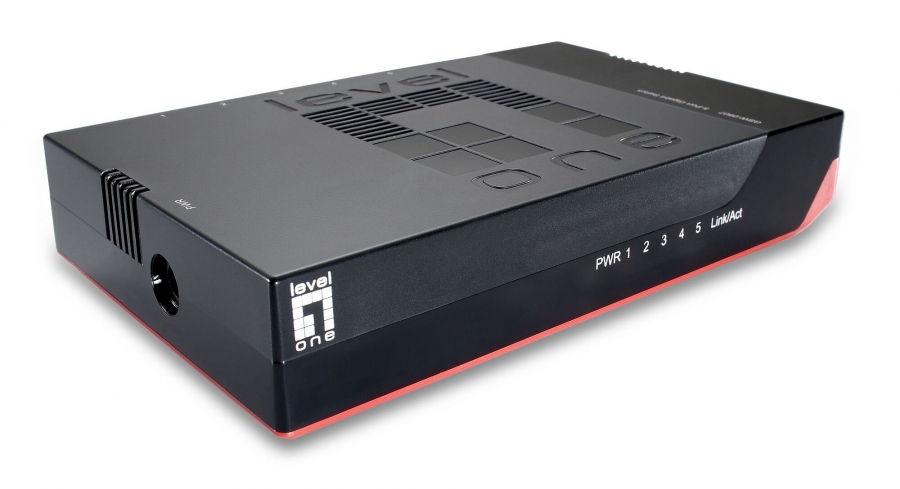

Level One LevelOne Switch 5x GE GSW-0507 Kunststoff

Kods GSW-0507

Condition: Jauns

Vairāk informācijas

The LevelOne GSW-0507 Gigabit Ethernet Switch is designed for reliable high-performance networking. With its non-blocking switching fabric in full-duplex mode, this switch can deliver up to 2000Mbps per port, while the Store-and-Forward service brings low latency and error-free packet delivery. This highperformance Gigabit Ethernet switch is perfect for fulfilling the demands of online gaming and multimedia streaming. Moreover, this switch also supports IEEE 802.3az Energy Efficient Ethernet which helps reduce power consumption. Power Saving Features The GSW-0507 supports IEEE 802.3az Energy Efficient Ethernet to provide power-saving benefits without compromising performance. One of the ways it does this is by automatically detecting the length of connected cables and can adjust power usage by saving energy on shorter cable connections. Compact and Stylish Design The stylish, compact wall-mountable housing of GSW-0507 fits any working environment. It comes with 5 10/100/1000Mbps ports to meet SOHO and home network expansion needs. Easy to Use The GSW-0507 features plug-and-play for easy installation. No configuration is required. Autonegotiation on each port senses the link speed of a network device and adjusts for compatibility and optimal performance.

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	5

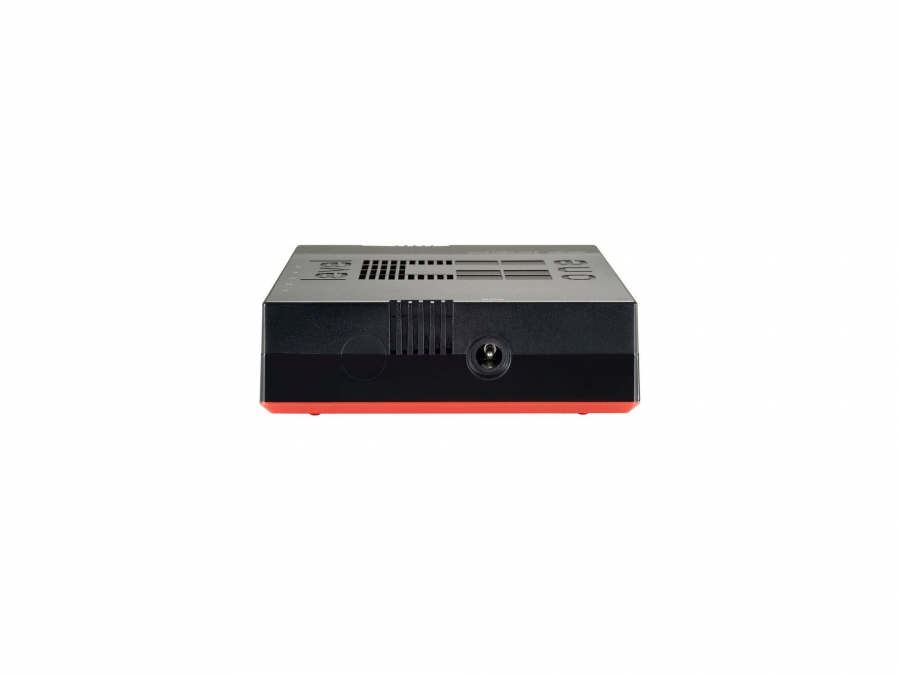

Power connector	DC-in jack
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex	Y
Flow control support	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y
MAC address table	8192 entries
Switching capacity	10 Gbit/s
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	9000
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148000 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet buffer memory	1 MB
Rack mounting	N
Stackable	N
Product colour	Black, Red
LED indicators	Activity, Link, Power

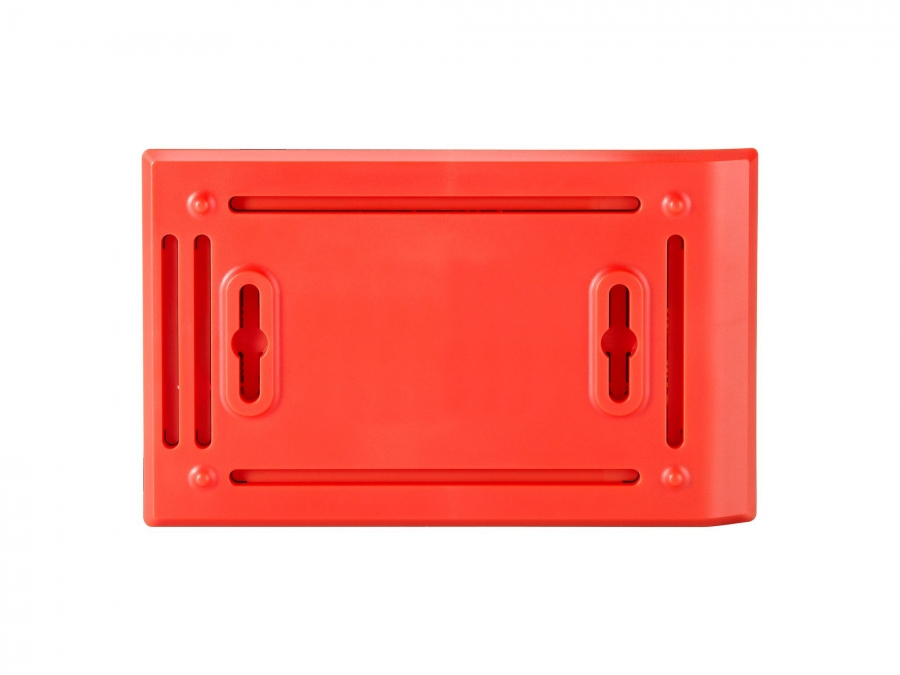

Wall mountable	Y
Country of origin	China
Certification	CE, RoHS, FCC
Flash memory	1024 MB
Pallet net height	169 cm
Pallet net length	80 cm
Pallet net width	120 cm
Power supply included	N
Input current	1 A
Power consumption (typical)	3 W
Power over Ethernet (PoE)	N
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	10 - 90%
Width	149.5 mm
Depth	89 mm
Height	27 mm
Weight	135 g
Quick start guide	Y
AC adapter included	Y
Package type	Box
Package width	92 mm
Package depth	142 mm
Package height	92 mm
Package weight	300 g
Harmonized System (HS) code	85176990
