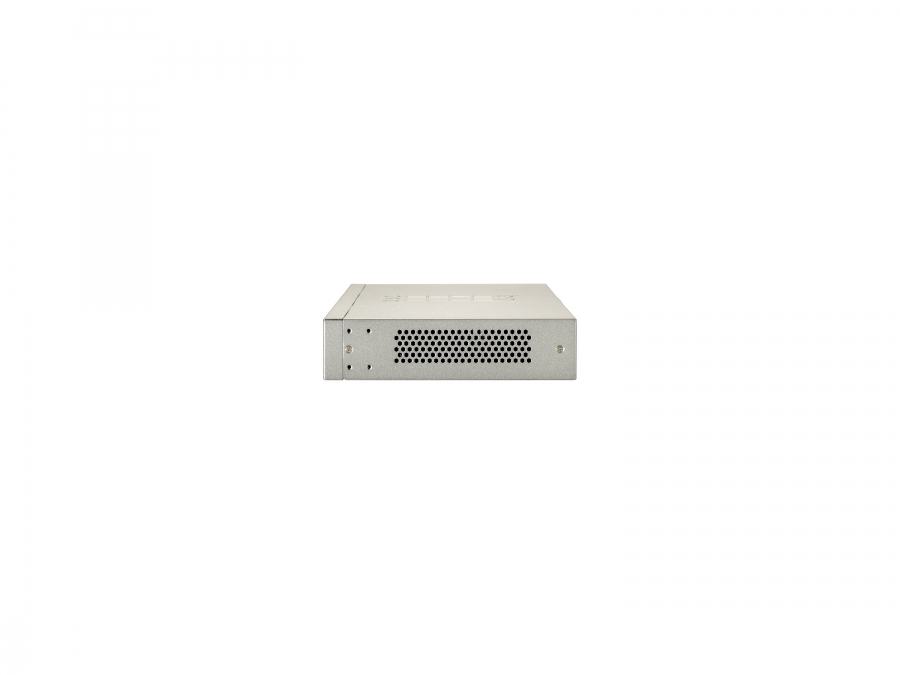

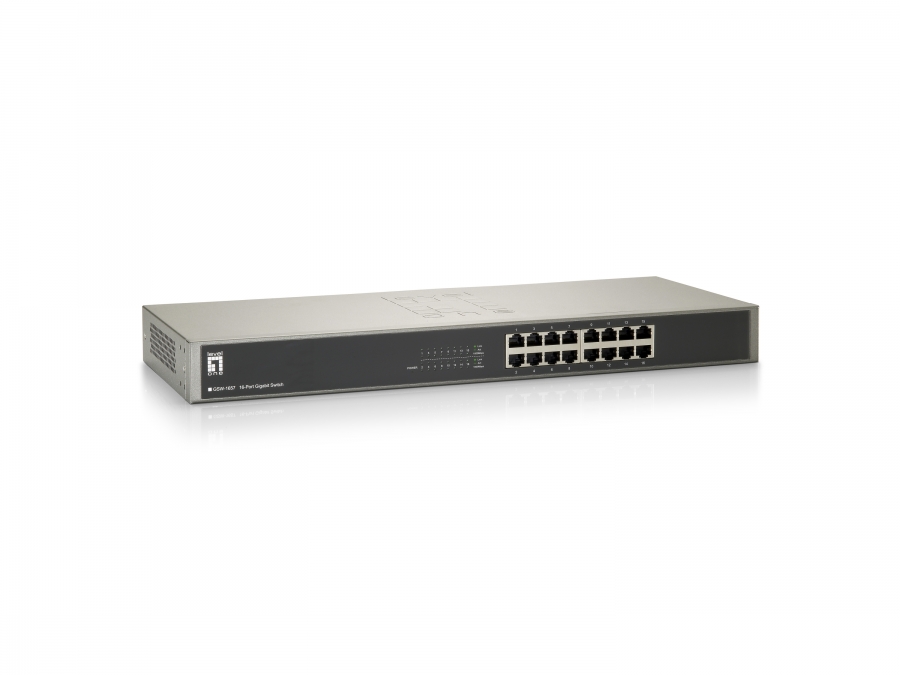

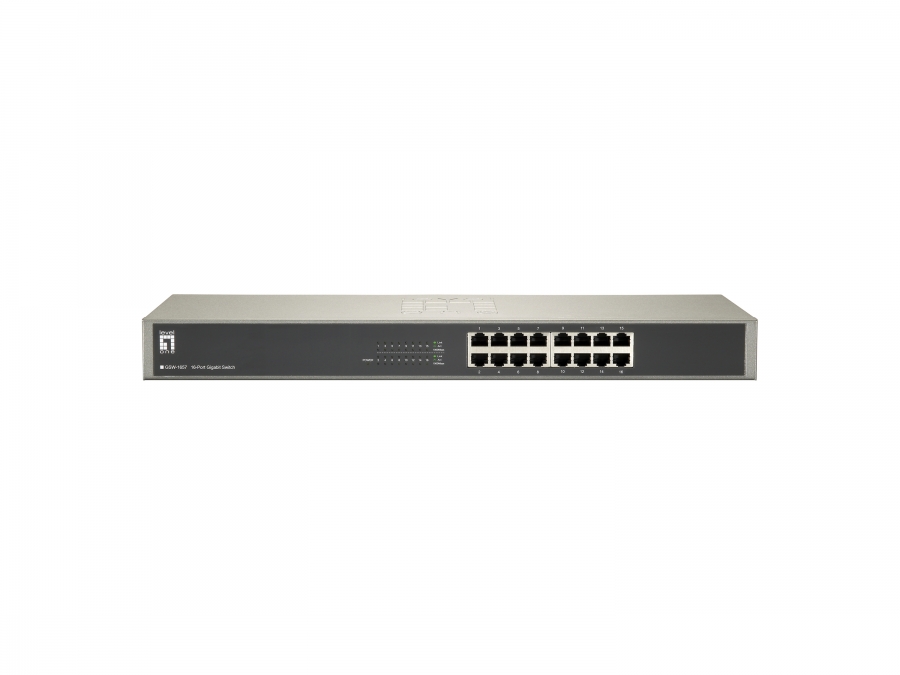

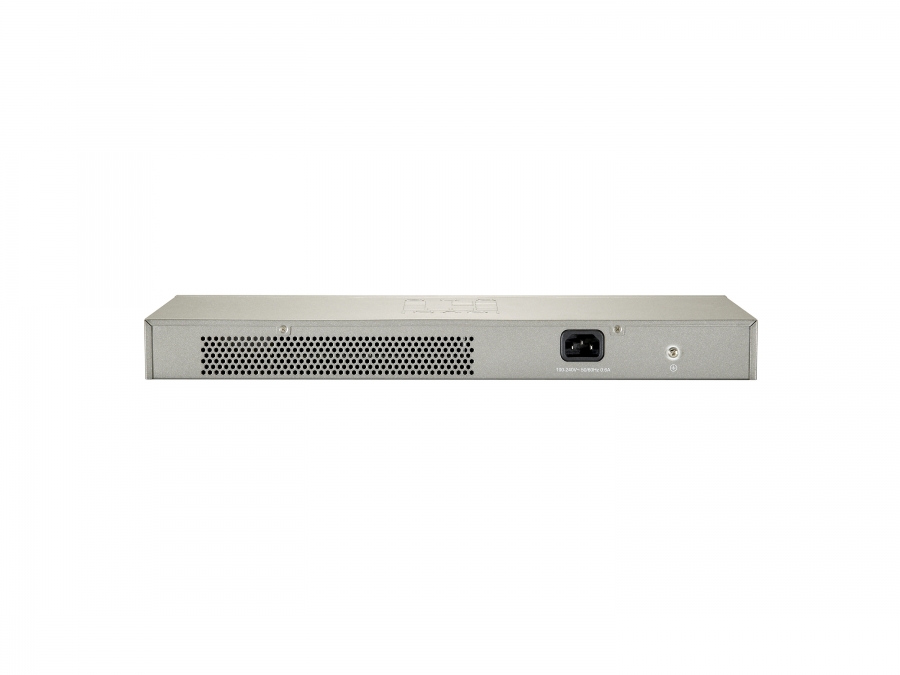

Level One LevelOne Switch 16x GE GSW-1657 19" Metall

Kods GSW-1657

Condition: Jauns

Vairāk informācijas

Gigabit Speeds: Take Your Data to the Next Level GSW-1657 is a 16-port Gigabit Ethernet Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 1000Mbps. Increase the speed of your network backbone to a massive 32Gbps and bring Gigabit speeds all the way to your computers.Bandwidth hungry? Not a problem. What happens when you have several users accessing multimedia applications all at the same time? No need to worry as GSW-1657 allows you to move large files faster and easier. Transfer your CGI, CAD, video, or other large multimedia files over the network instantly and without lag.Standards-based GSW-1657 features a non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput. With MAC address auto-learning and auto-aging, IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode, you have powerful features sending your data throughout the network.Plug and Play, Flexible and Easy GSW-1657 is plug-and-play so no configuration is required. Providing auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cables or Uplink ports. Each port can be used as general ports or Uplink ports, and any port can be simply plugged into a server, a hub, a router or a switch, using a straight cable or crossover cable. Diagnostic LEDs which display link status and activity, allowing you to quickly detect and correct problems on the network.

Switch type	Unmanaged
Quality of Service (QoS) support	Y
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat5, Cat6, Cat7
Full duplex	Y
Flow control support	Y
Auto MDI/MDI-X	Y
MAC address table	8192 entries
Switching capacity	32 Gbit/s
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	10000
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148000 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet buffer memory	0.5 MB
Rack mounting	Y
Product colour	Black, Grey
LED indicators	Activity, Link
Certification	FCC, CE
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	0.6 A
Power consumption (typical)	13.3 W
Power over Ethernet (PoE)	N
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%
Width	140 mm
Depth	440 mm
Height	44 mm
Weight	1.48 kg
Cables included	AC
Quick start guide	Y
Mounting brackets included	Y
Package width	224 mm
Package depth	486 mm
Package height	77 mm
Package weight	2.15 kg
Master (outer) case width	405 mm
Master (outer) case length	500 mm
Master (outer) case height	240 mm
Harmonized System (HS) code	85176990
Master (outer) case gross weight	11.8 kg
